Headliner: Service and Repair

HEAD LINING

1. To remove the headlining, first remove the following parts:






1. Covering shelf center trim and side trim.
2. Rear speaker grill and speaker.
3. Rear seat cushion.
4. Rear seat back.
5. Rear seat belt upper anchor mounting bolt.
6. Rear seat back lower side bracket.
7. Quarter inner trim.
8. Front seat belt upper anchor mounting bolt.
9. Center pillar upper trim.
10. Front pillar trim.

2. Remove the roof assist handle.






3. Remove the mounting screws from the sunvisor.






4. Remove the mounting screw (4EA) from the over head console lamp.
Disconnect the over head console lamp.






5. Remove the mounting clip (5EA) from the roof rear cover trim.

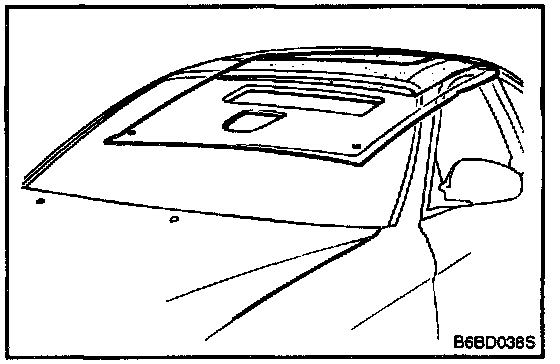

6. Remove the headlining.






7. Installation is the reverse of removal
