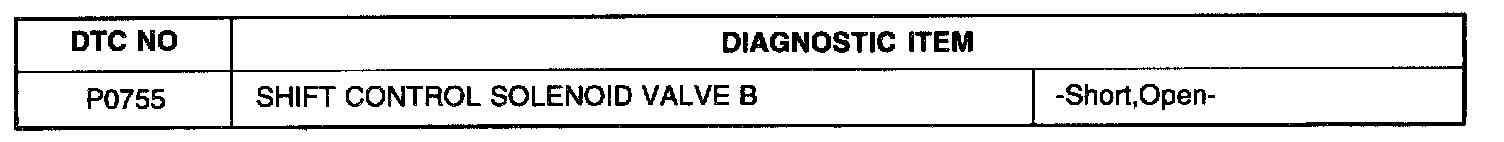

P0755

DESCRIPTION
- Control fluid pressure that is acting on shift control valve (SCV) through ON/OFF signals from TCM to control shift.
- If resistance value of SCSV-B is high or low, P0755 is output.(open or short circuit)

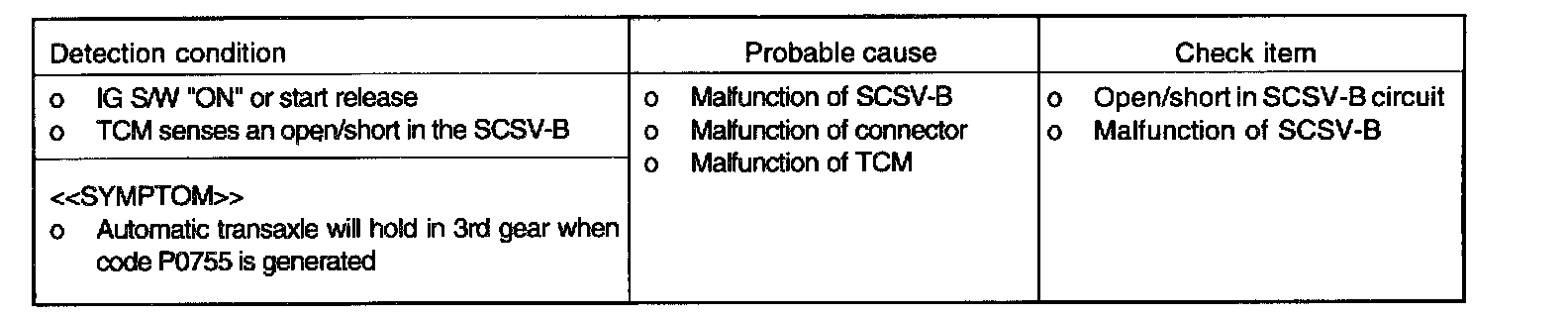

TROUBLESHOOTING GUIDE

CIRCUIT DIAGRAM





Part 1 of 2

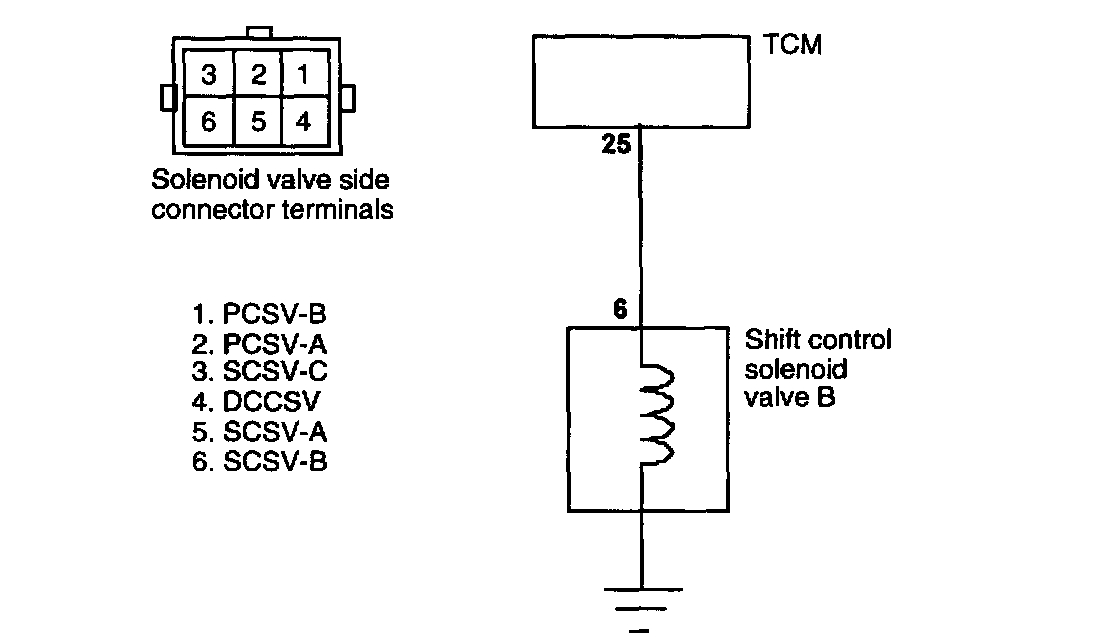

Part 2 of 2

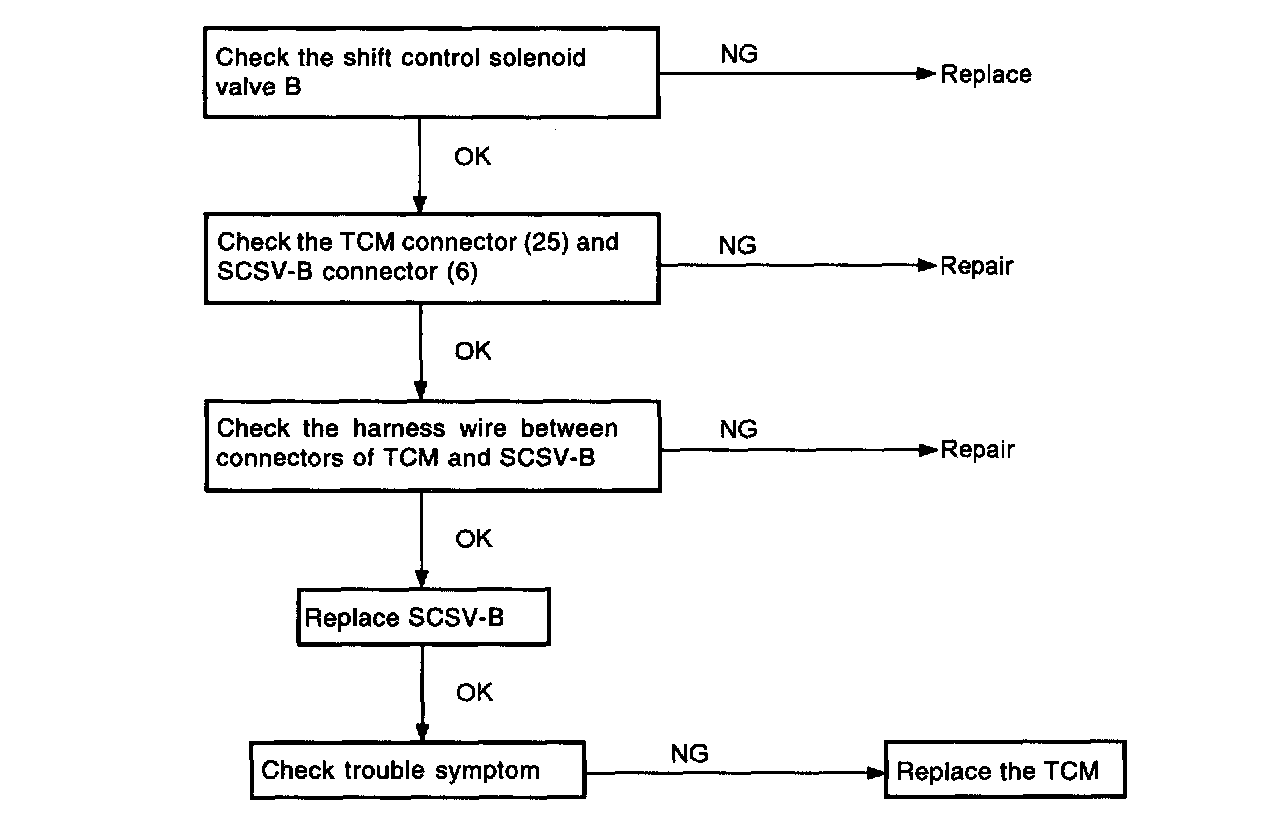

TROUBLESHOOTING FLOW
