P0745

DESCRIPTION
- Control fluid pressure that is acting on pressure control valve-A (PCV-A) through PWM signals from TCM to control pressure during a shift

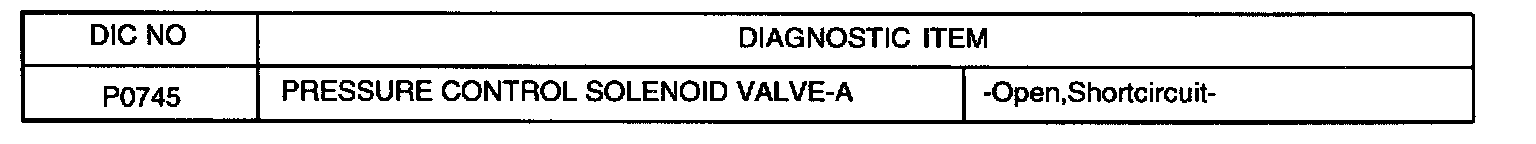

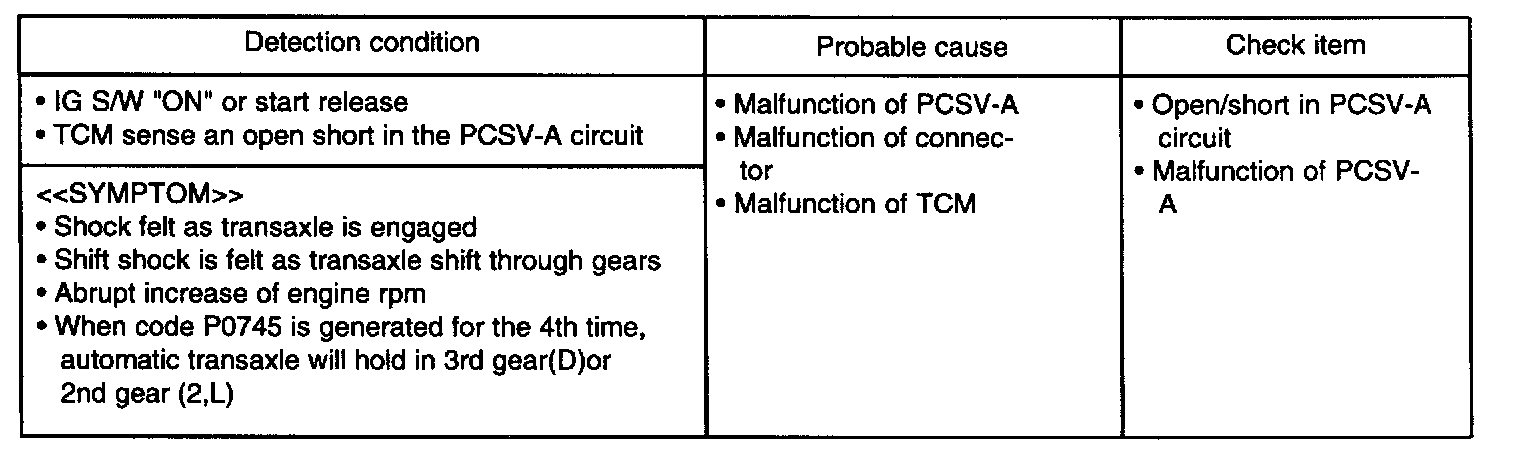

TROUBLESHOOTING GUIDE

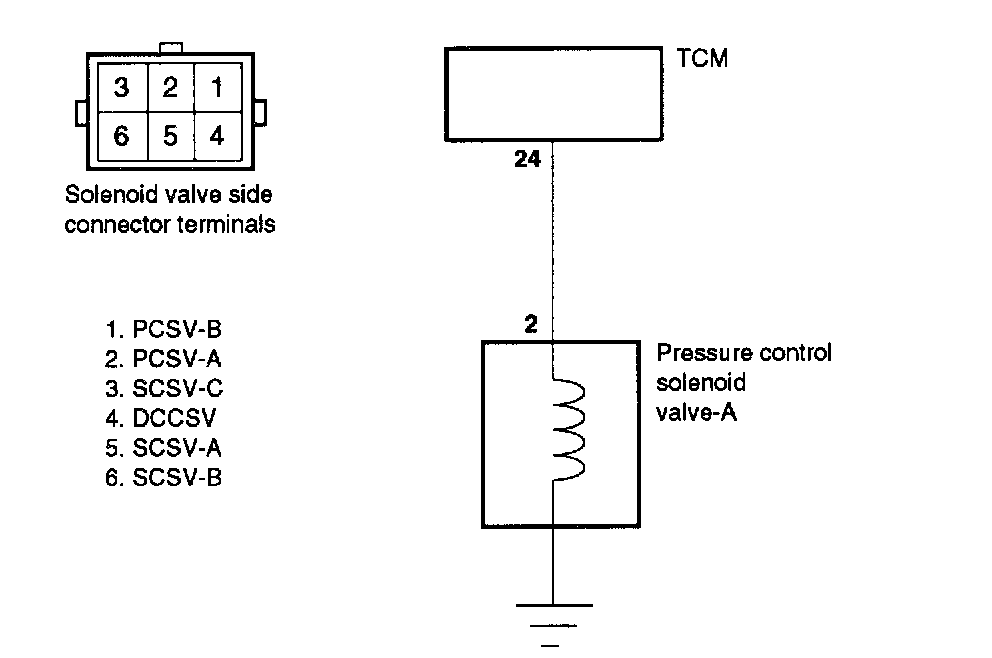

CIRCUIT DIAGRAM

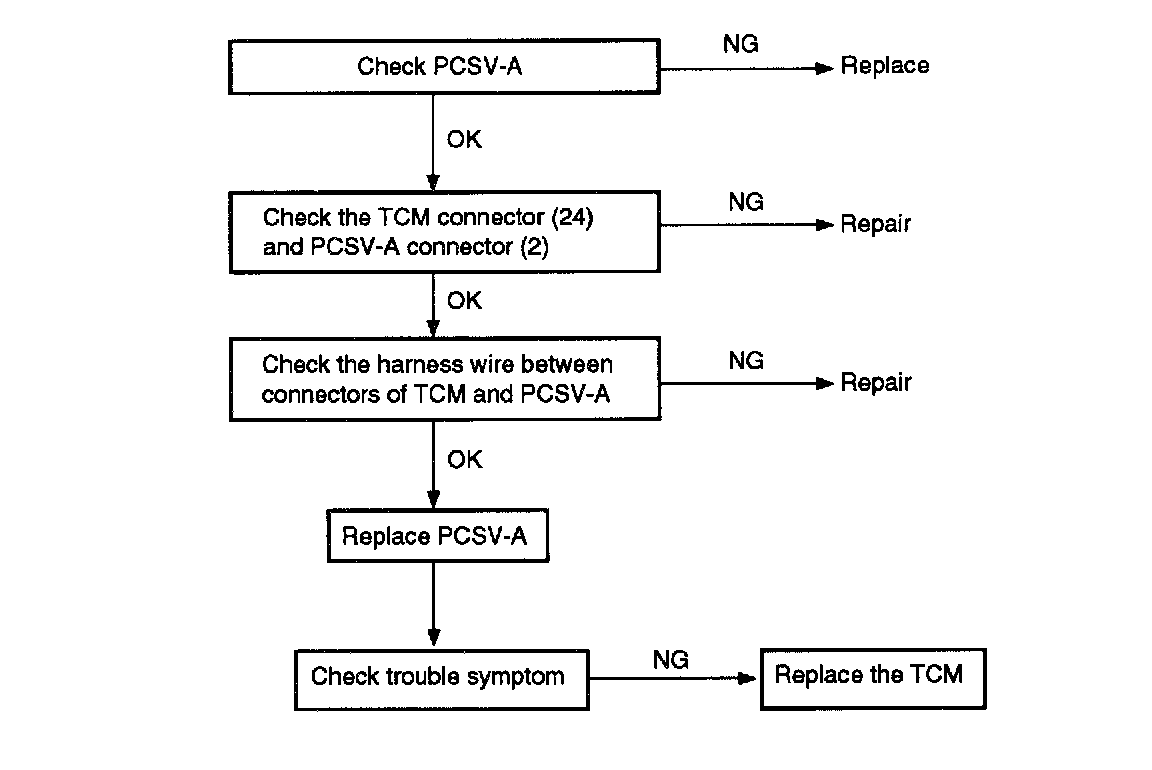

TROUBLESHOOTING FLOW
