Back Window Glass: Service and Repair

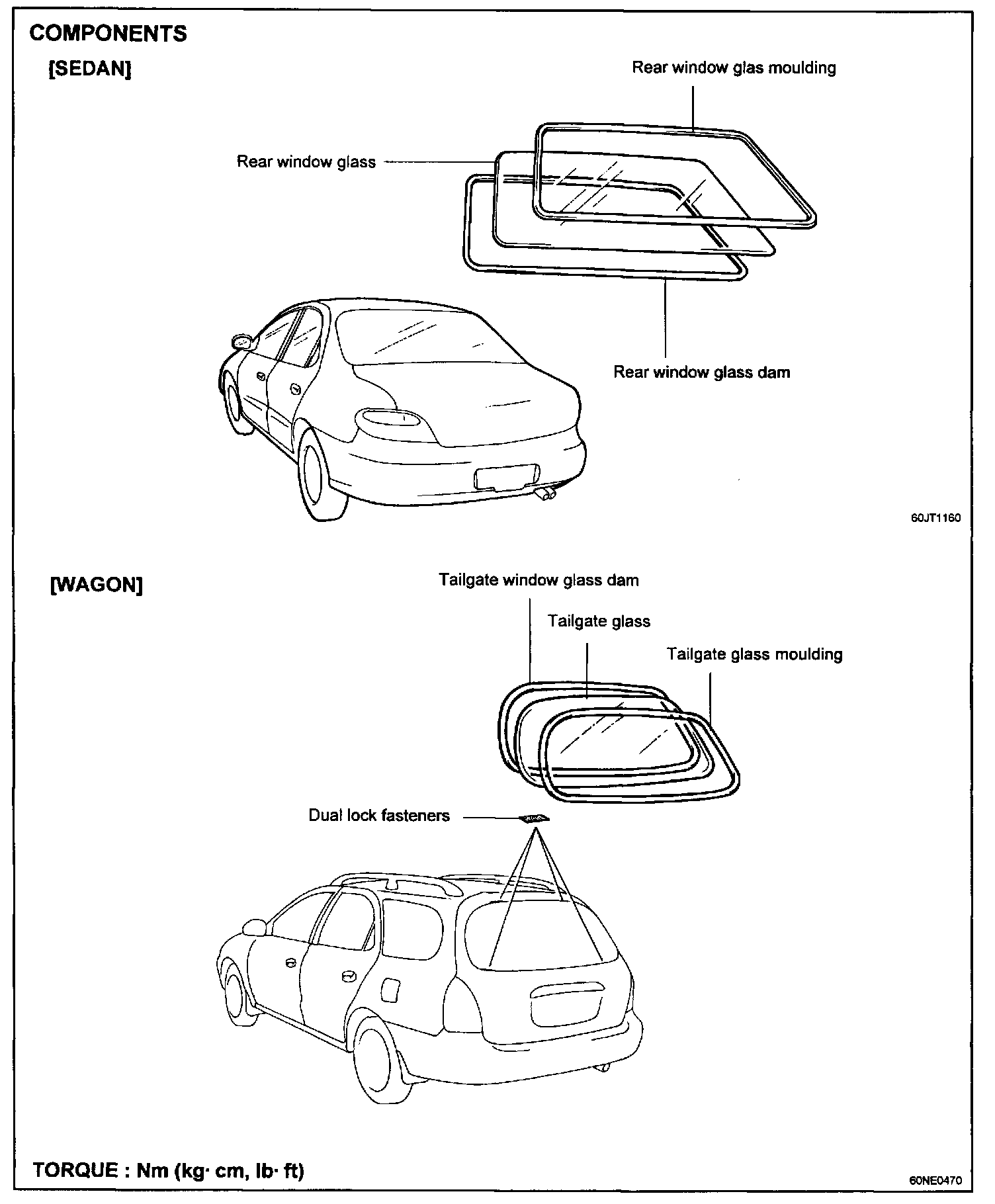

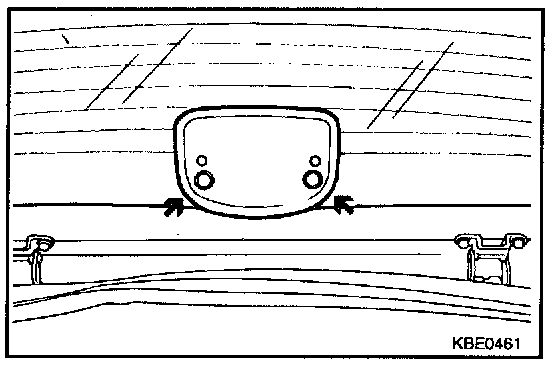

REAR WINDOW GLASSRear Window Glass:
REMOVAL
[SEDAN]

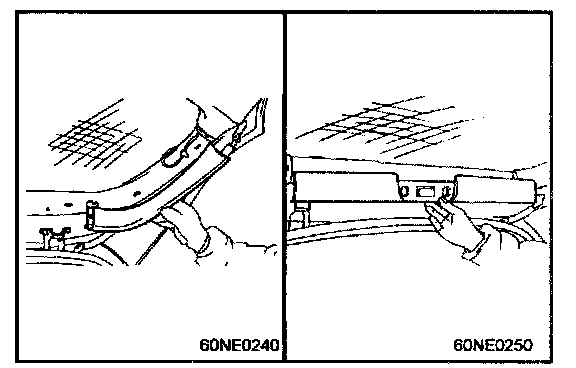

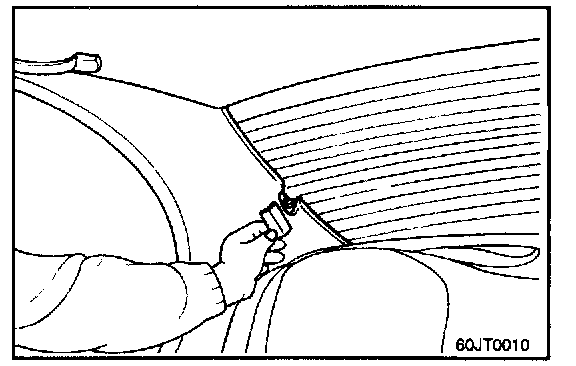

1. Remove the defogger wire connector and then remove the rear pillar trim (refer to INTERIOR TRIM & HEAD LINING).
2. Remove the high mounted stop lamp.

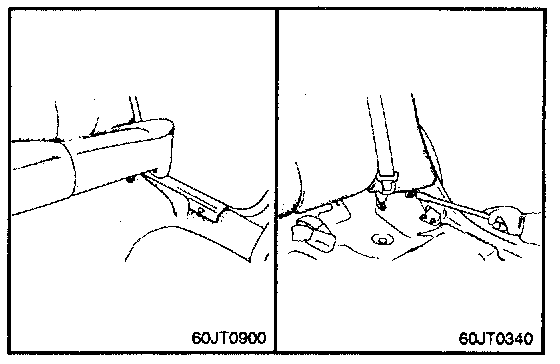

3. Remove the rear seat back side cover and rear seat cushion.

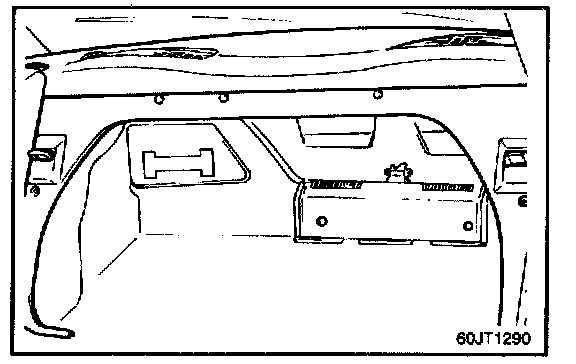

4. Remove the partition cover and rear package tray trim.

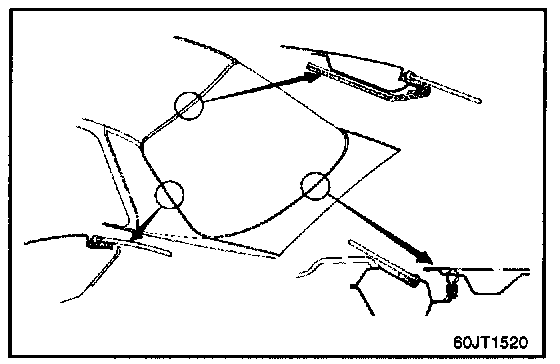

5. Remove the rear window glass assembly.
[WAGON]
1. Remove the high mounted stop lamp.
2. Remove the tailgate frame upper and side trim.

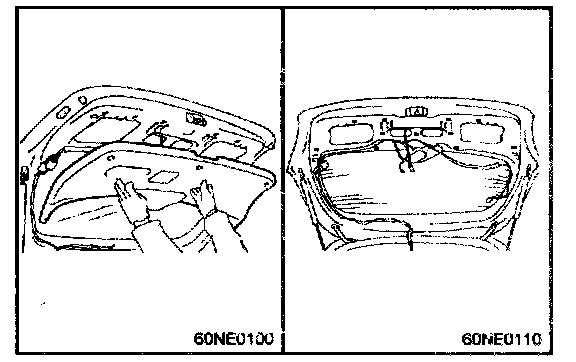

3. Remove the tailgate trim panel assy.

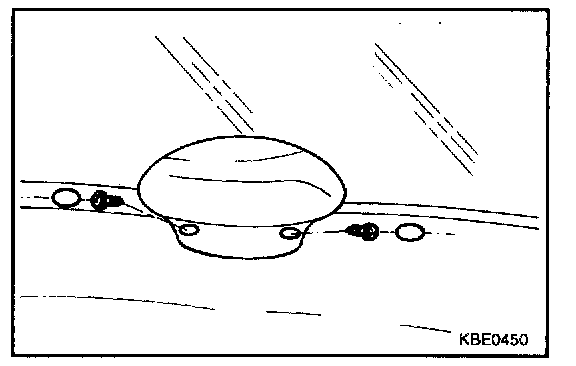

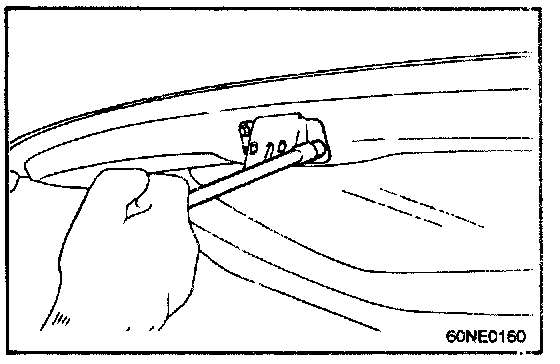

4. Remove the tailgate latch and key cylinder.
Tightening torque: 7-11 N.m (70-110 kg.cm, 5.1-8.0 lb.ft)

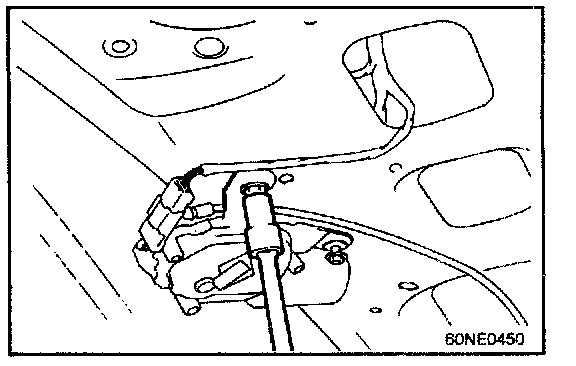

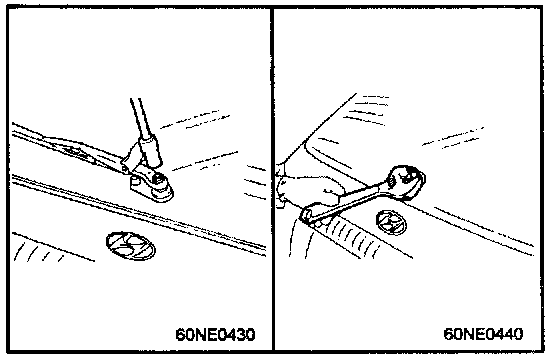

5. Remove the rear wiper arm and rear wiper motor.

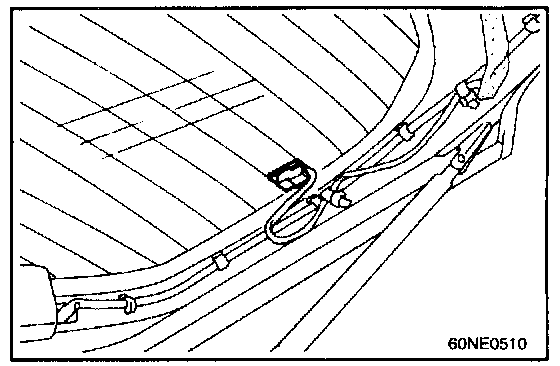

6. Remove the defogger wire connector.
7. Remove the tailgate glass.
INSTALLATION
[SEDAN]

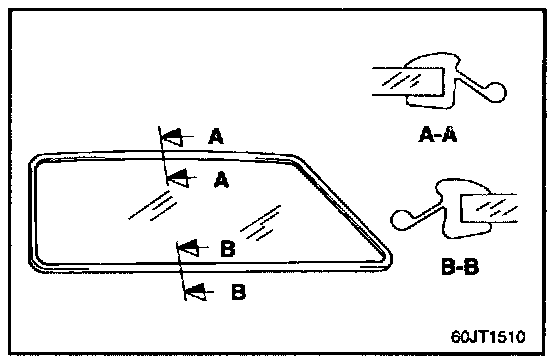

1. Install the rear window glass moulding to the rear window glass.
2. Apply a light coat of glass primer to the outside of the dam.
NOTE:
1. Do not apply body primer to the glass.
2. Never touch the primed surfaces with your hand.
if you do, the adhesive may not bond to the glass properly, causing a leak after the rear window glass is installed.
3. Keep water, dust, and abrasive materials away from the primed surface.
3. Apply a light coat of body primer to the original sealant remaining around the window opening flange. The glass should be installed 10 minutes after you apply the primer.

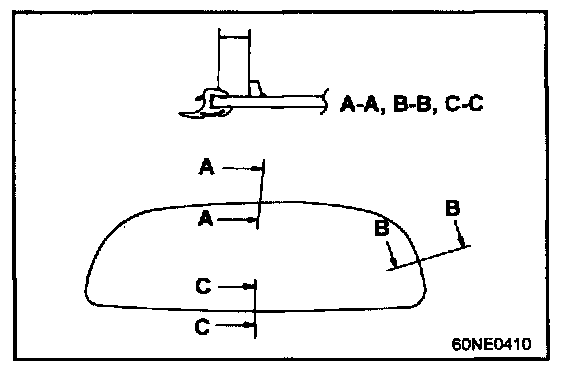

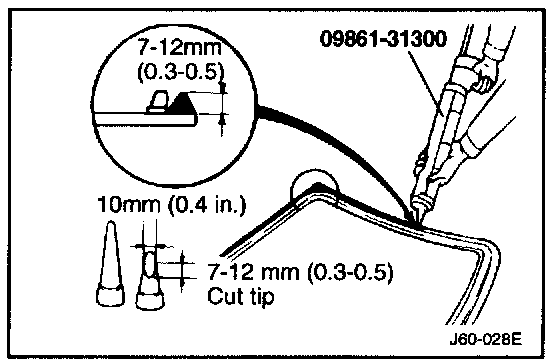

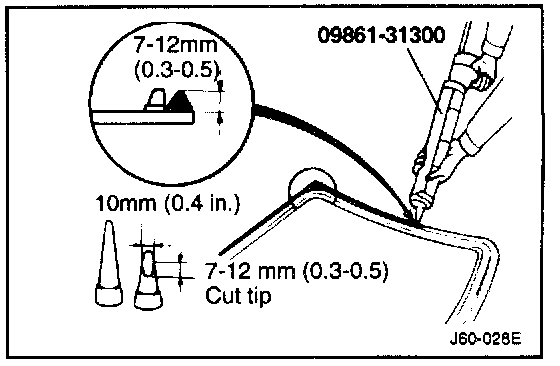

4. Pack adhesive into the cartridge (avoid air pockets), to ensure continuous application. Put the cartridge in a caulking gun or Sealant Gun, and run a bead of adhesive around the edge of the glass as shown.
NOTE: Apply the adhesive within 5 minutes after applying the glass primer.

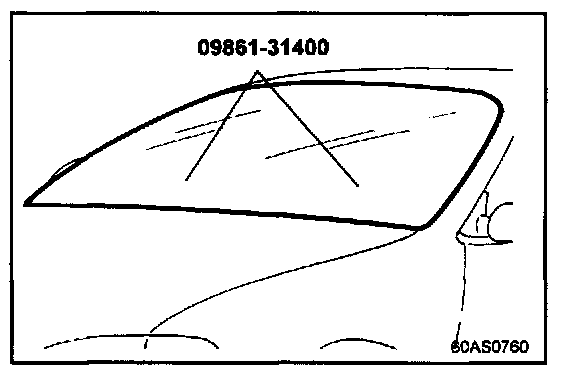

5. Using the special tool, install the rear window glass.
Let adhesive dry for at least one hour, then spray water over the rear window glass and check for leaks. If there are leaks, dry the affected area, then apply sealant.
NOTE:
- Let the car stand for at least four hours after rear window glass installation. If the car has to be used within the first 8 hours, it must be driven slowly.
- Keep the rear window glass dry for the first hour after installation.
6. Install the removed parts.
NOTE:
Advise the customer not to do the following things for two to three days:
- Slam the doors with all the windows rolled up.
- Twist the body excessively (such as when going in and out of driveways at an angle or driving over rough, uneven roads).
[WAGON]

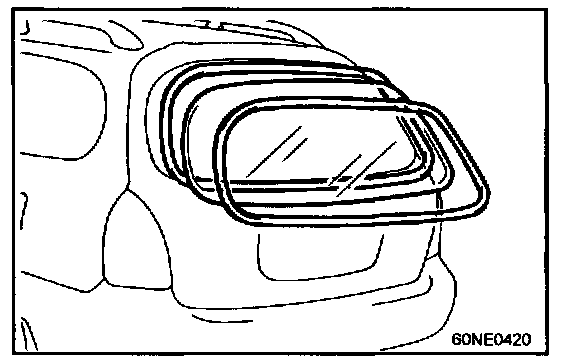

1. Install the tailgate glass moulding to the tailgate glass.
2. Apply a light coat of glass premier to the outside of the dam.
NOTE:
1. Do not apply body primer to the glass.
2 Never touch the primed surfaces with your hand.
If you do, the adhesive may not bond to the glass properly, causing a leak after the tailgate glass is installed.
3. Keep water, dust, and abrasive materials away from the primed surface.
3. Apply a light coat of body primer to the original sealant remaining around the tailgate opening flange. The glass should be installed 10 minutes after you apply the primer.

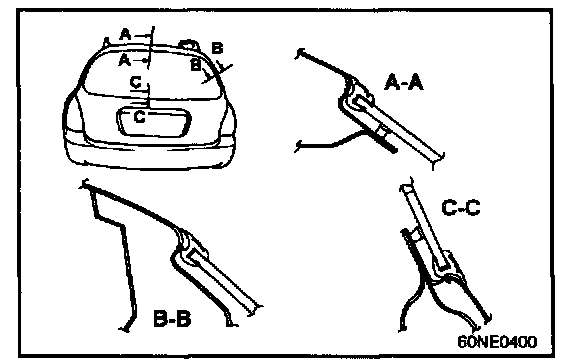

4. Pack adhesive into the cartridge (avoid air pockets), to ensure continuous application. Put the cartridge in a caulking gun or Sealant Gun, and run a bead of adhesive around the edge of me glass as shown.
NOTE: Apply the adhesive within 5 minutes after applying the glass primer.
5. Using the special tool, install the tailgate glass.
Let the adhesive dry for at least one hour, then spray water over the tailgate glass and check for leaks. If there are leaks, dry the affected area, then apply sealant.
NOTE:
- Let the car stand for at least four hours after tailgate glass installation. If the car has to be used within the first 8 hours, it must be driven slowly.
- Keep the tailgate glass dry for the first hour after installation.
6. install the removed parts.
NOTE:
Advise the customer not to do the following things for two to three days:
- Slam the doors with all the windows rolled up.
- Twist the body excessively (such as when going in and out of driveways at an angle or driving over rough, uneven roads).
