Camshaft Bearing Cap Torque and Sequence

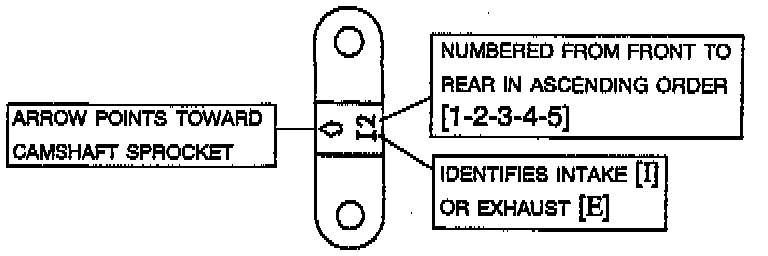

Check the markings on the caps for proper location as shown in the illustration.
I: Intake camshaft.
E: Exhaust camshaft.





Tightening Sequence
Tighten the bearing caps to the specified torque in two or three steps as shown.
Tightening torque:
Bearing cap bolt: 12-14 Nm (120-140 kg.cm, 9-10 ft. lbs.)
