Recall - (MAF Sensor) Low Speed Stalling: Overview

Group: CAMPAIGN

Number: 00-01-006

Date: OCTOBER, 2000

Model: 1999 - 2000 ELANTRA

Subject:
1999 - 2000 ELANTRA MASS AIR FLOW SENSOR CONNECTOR REPLACEMENT CAMPAIGN 040

DESCRIPTION:
Engine vibration transmitted to the MAF (Mass Air Flow) sensor electrical connector wiring harness may cause an intermittent MAF sensor electrical signal interruption, which may lead to low speed engine stalling on some 1999 and 2000 model year Elantra vehicles. This TSB describes the procedure for changing the MAF sensor electrical connector and wiring harness to incorporate a relief loop in the harness that will reduce the vibration that may be transmitted to the MAF sensor electrical connector.

VEHICLES AFFECTED

^ Model : 1999 and 2000 Model Year ELANTRA vehicles

^ Affected vehicle production date range : June 01, 1999 through June 16, 2000.

^ Affected VIN range: - Sedan : kMHJF25FXXU867528 through KMHJF35FXYU043200

- Wagon: KMHJW25F6XU145781 through KMHJW35FXYU183148

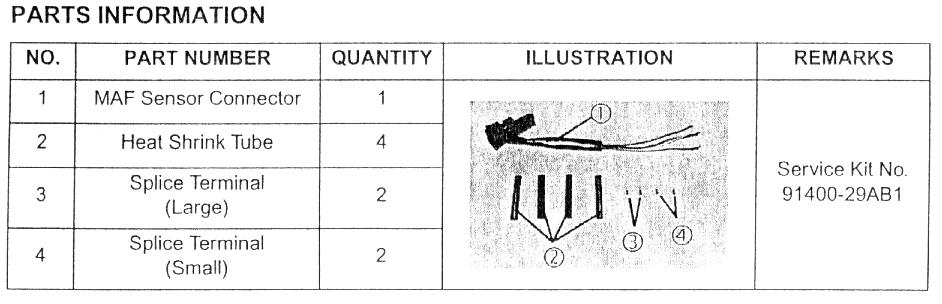

PARTS INFORMATION

^ Each terminal opening in the MAF sensor connector has been lubricated with "NYE 760G" grease.

^ The MAF sensor connector wire has been fastened to the connector to create a relief loop.

NOTE:
Do not remove the tie wrap holding the wire harness to the connector.

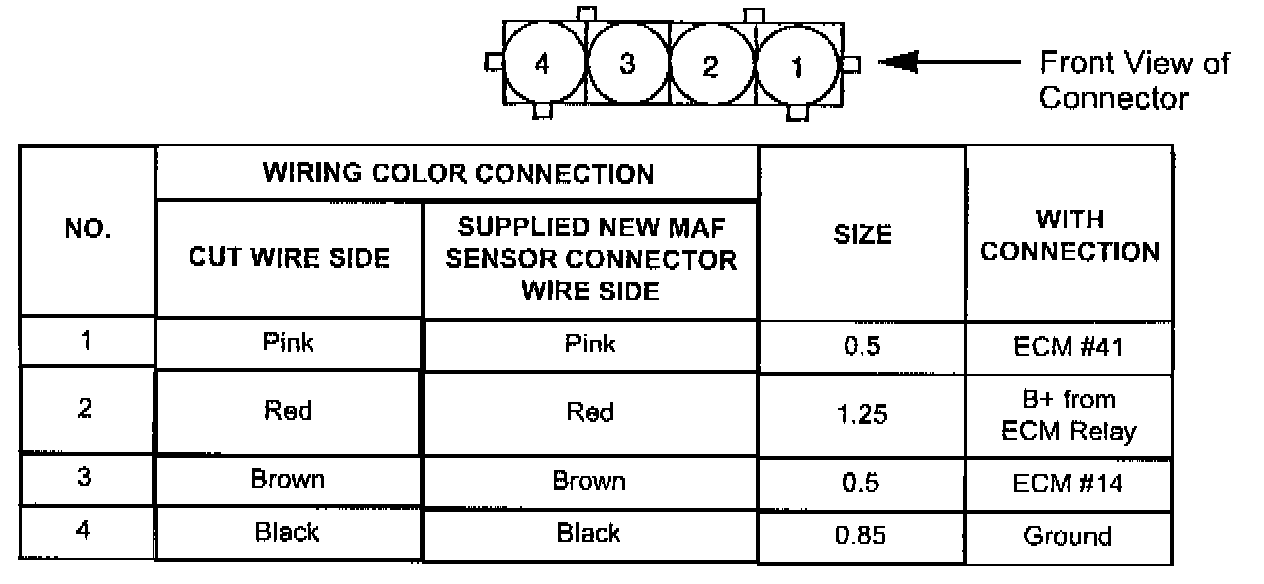

WIRE COLORS AND SIZES

NOTE:
Before splicing the wires, make sure the wires are matched according to the above table.

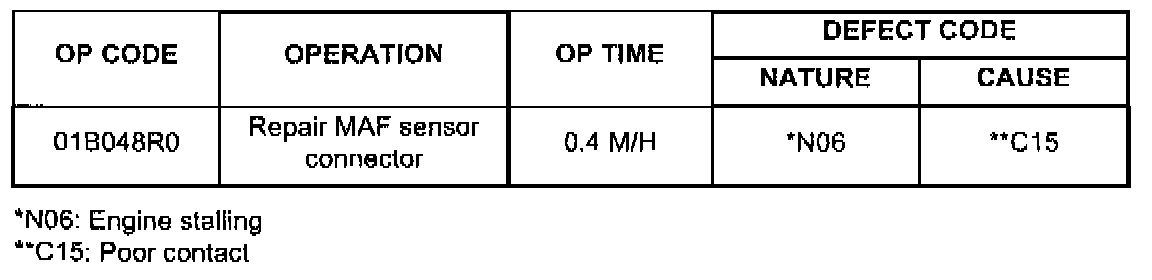

CAMPAIGN CLAIM INFORMATION

NOTE:
Submit claims using the above Campaign Operation Code using the Campaign Claim Screen.
