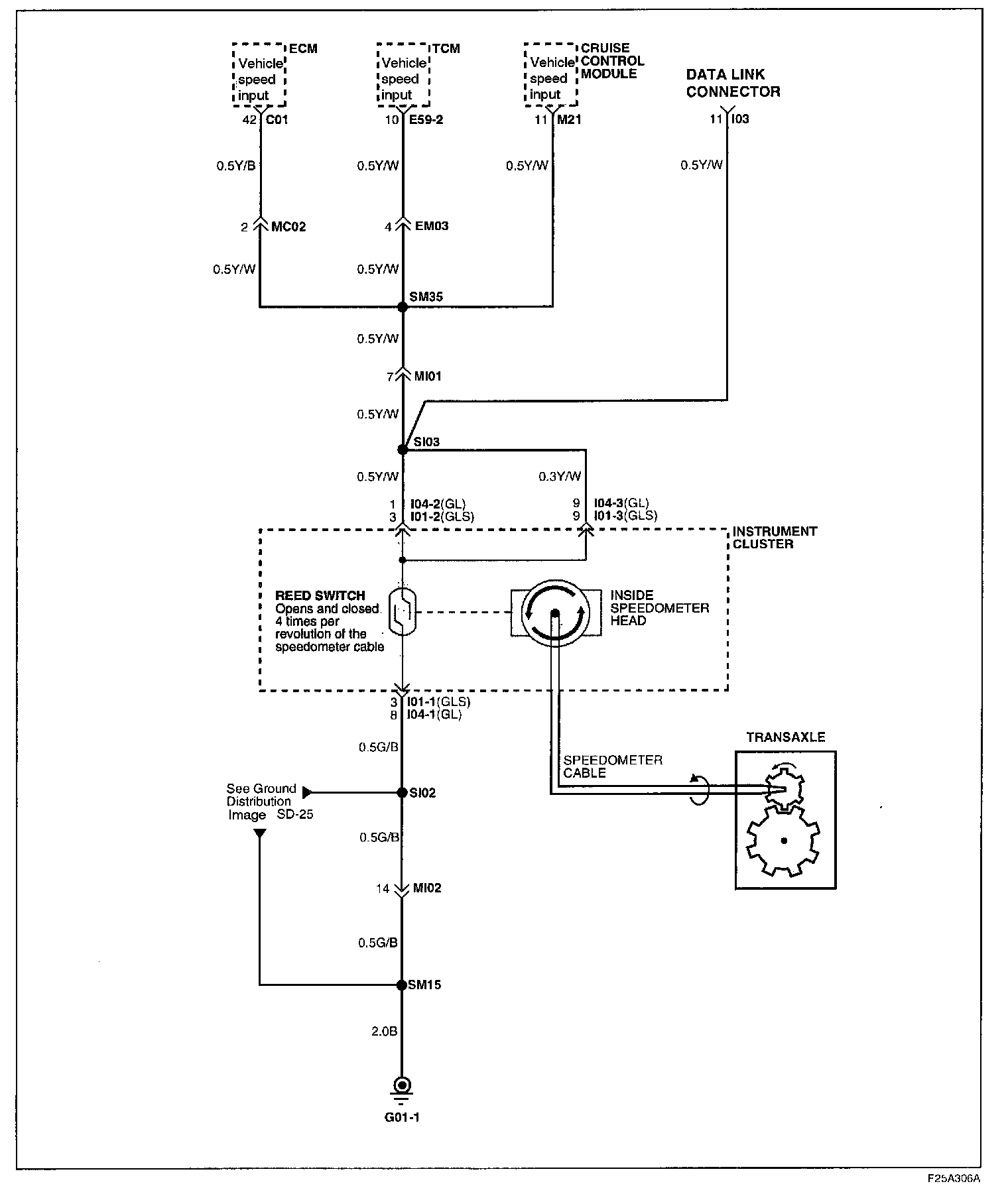

Vehicle Speed Sensor
Image SD - 42:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section (Elantra) Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section (Elantra) Of Vehicle.
Locations
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section (Elantra) Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section (Elantra) Of Vehicle.
Locations
