Ground Distribution

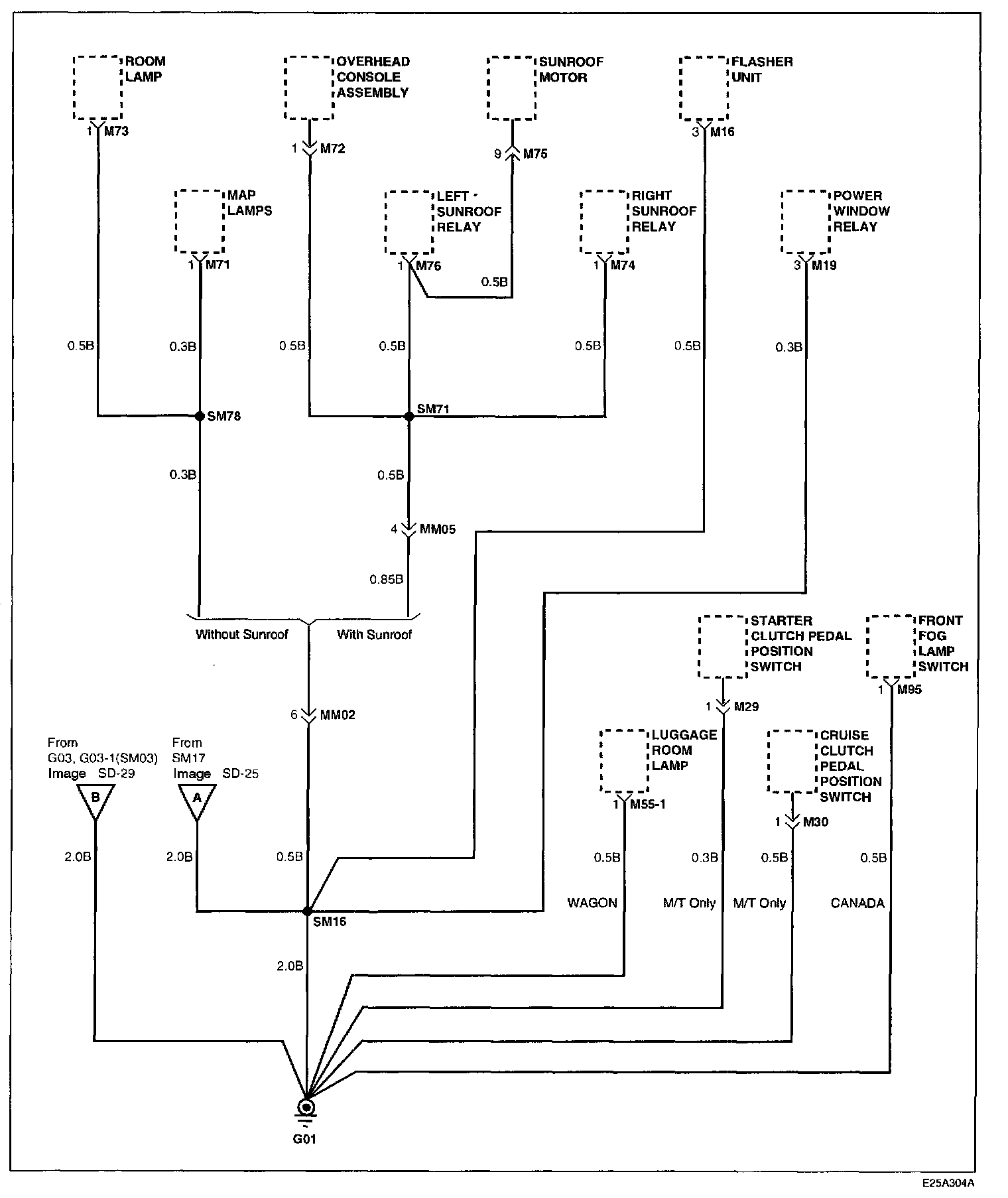

Image SD - 24:

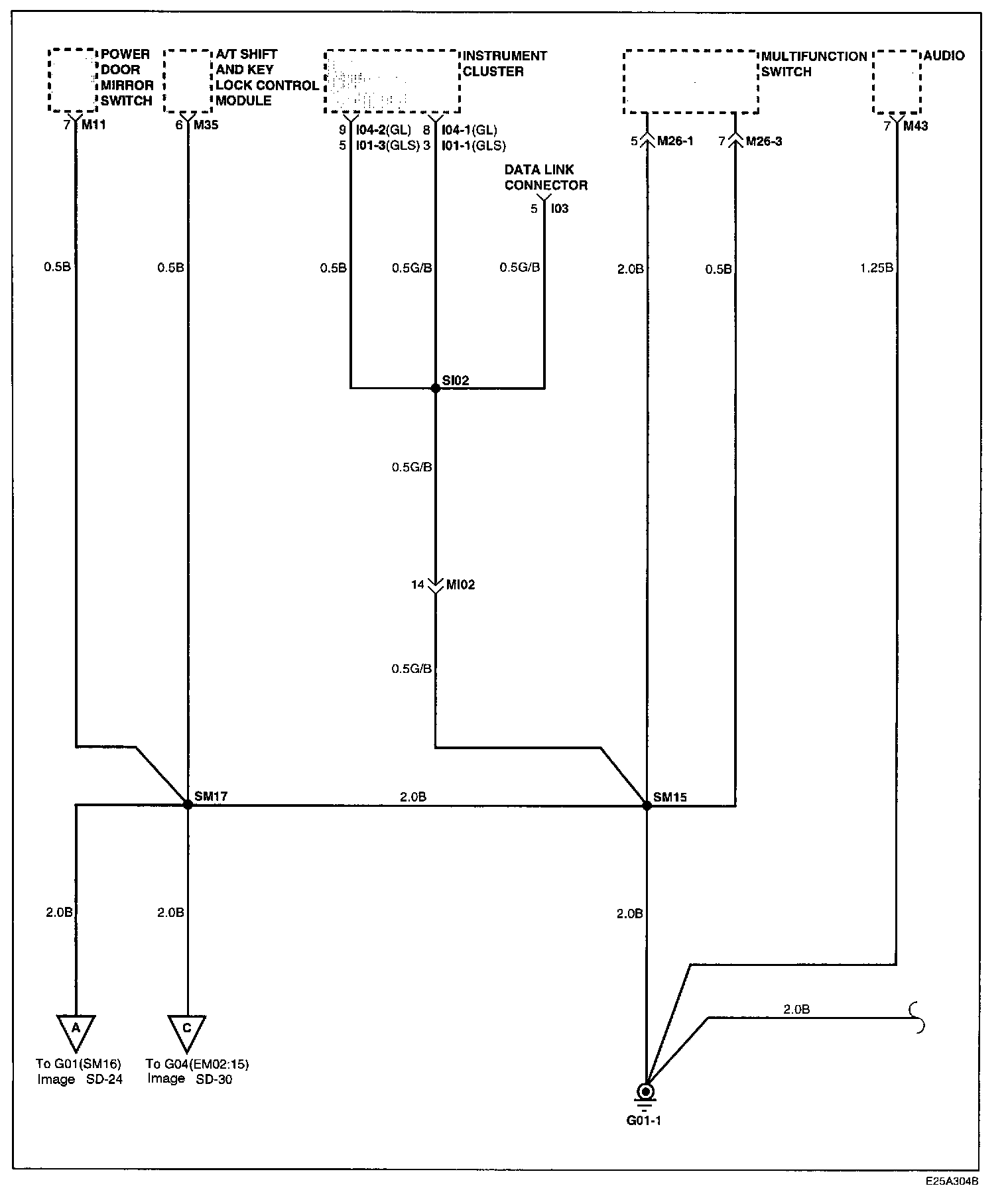

Image SD - 25:
Image SD - 26:
Image SD - 27:
Image SD - 28:
Image SD - 29:
Image SD - 30:
Image SD - 31:
Image SD - 32:
Image SD - 33:
Image SD - 34:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section (Elantra) Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section (Elantra) Of Vehicle.
Locations
