Fuse Block

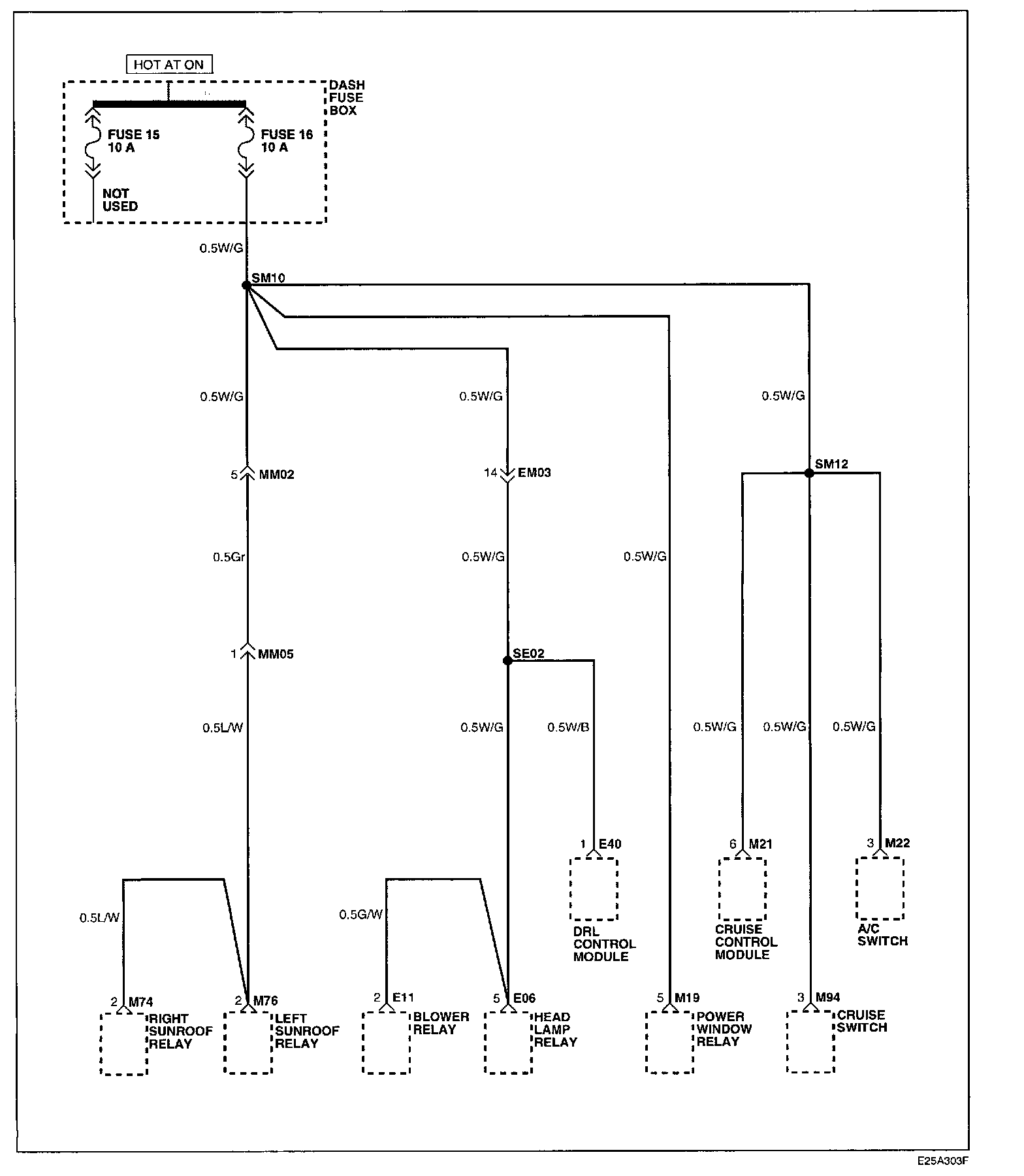

Image SD - 14:

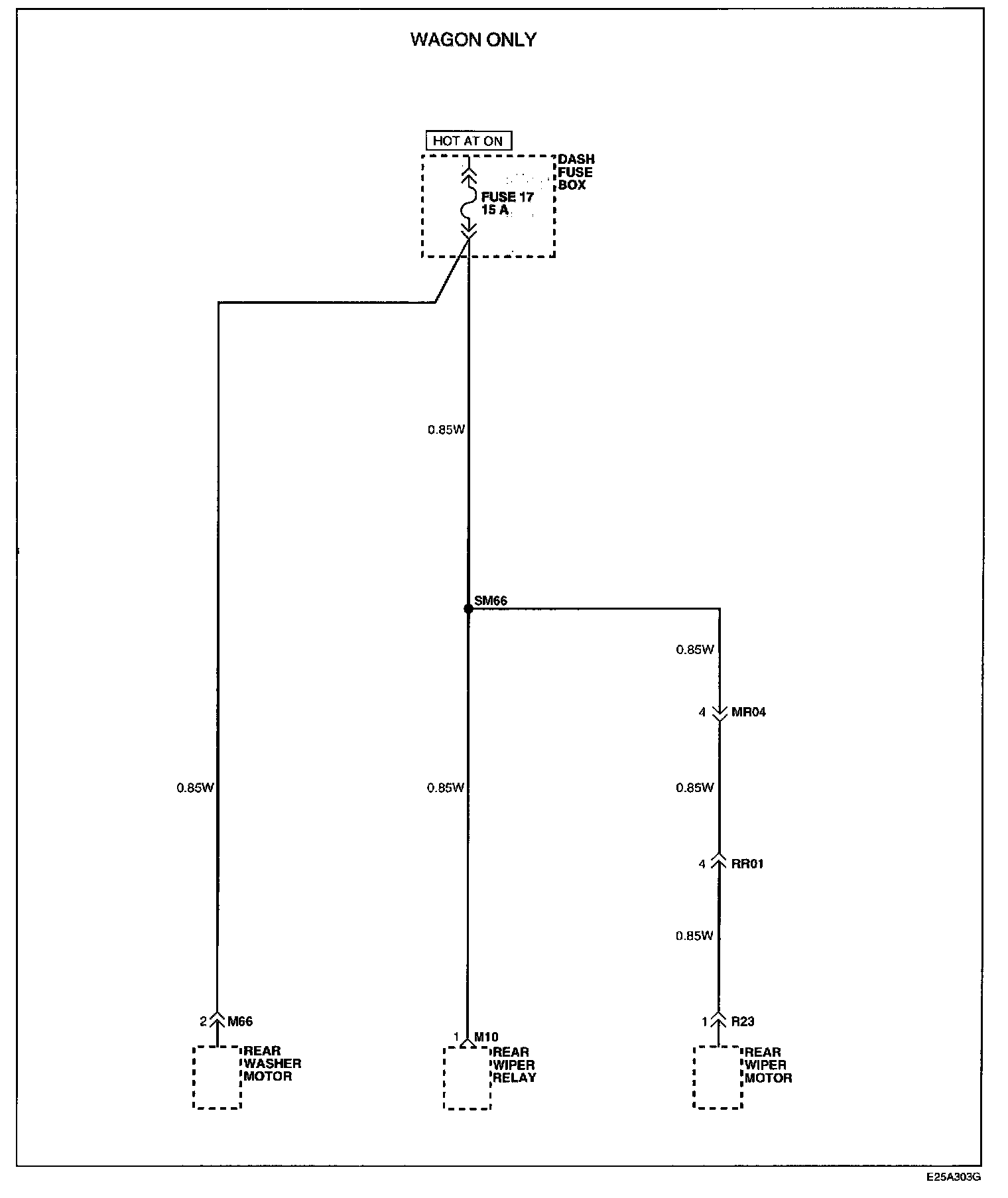

Image SD - 15:

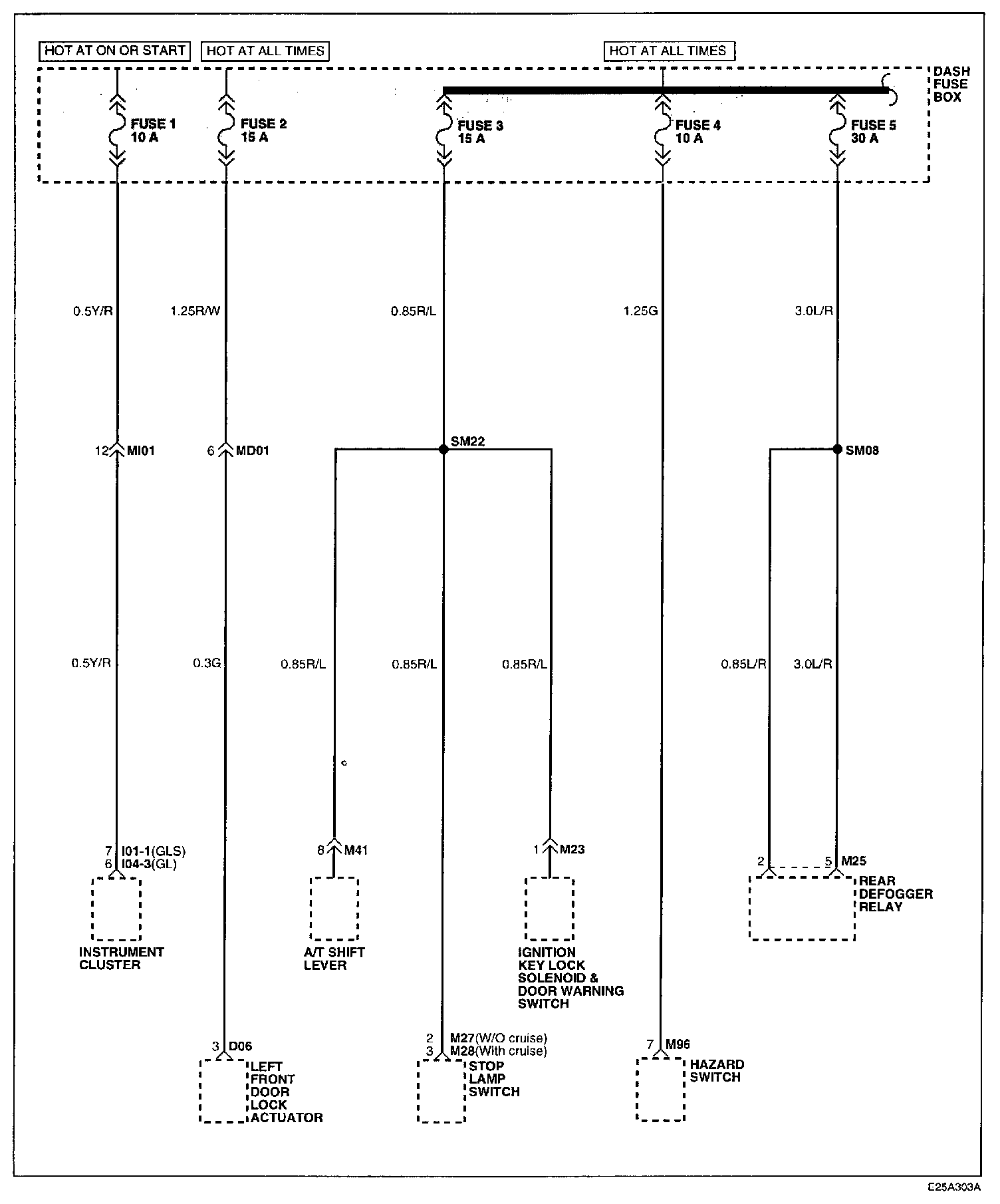

Image SD - 16:

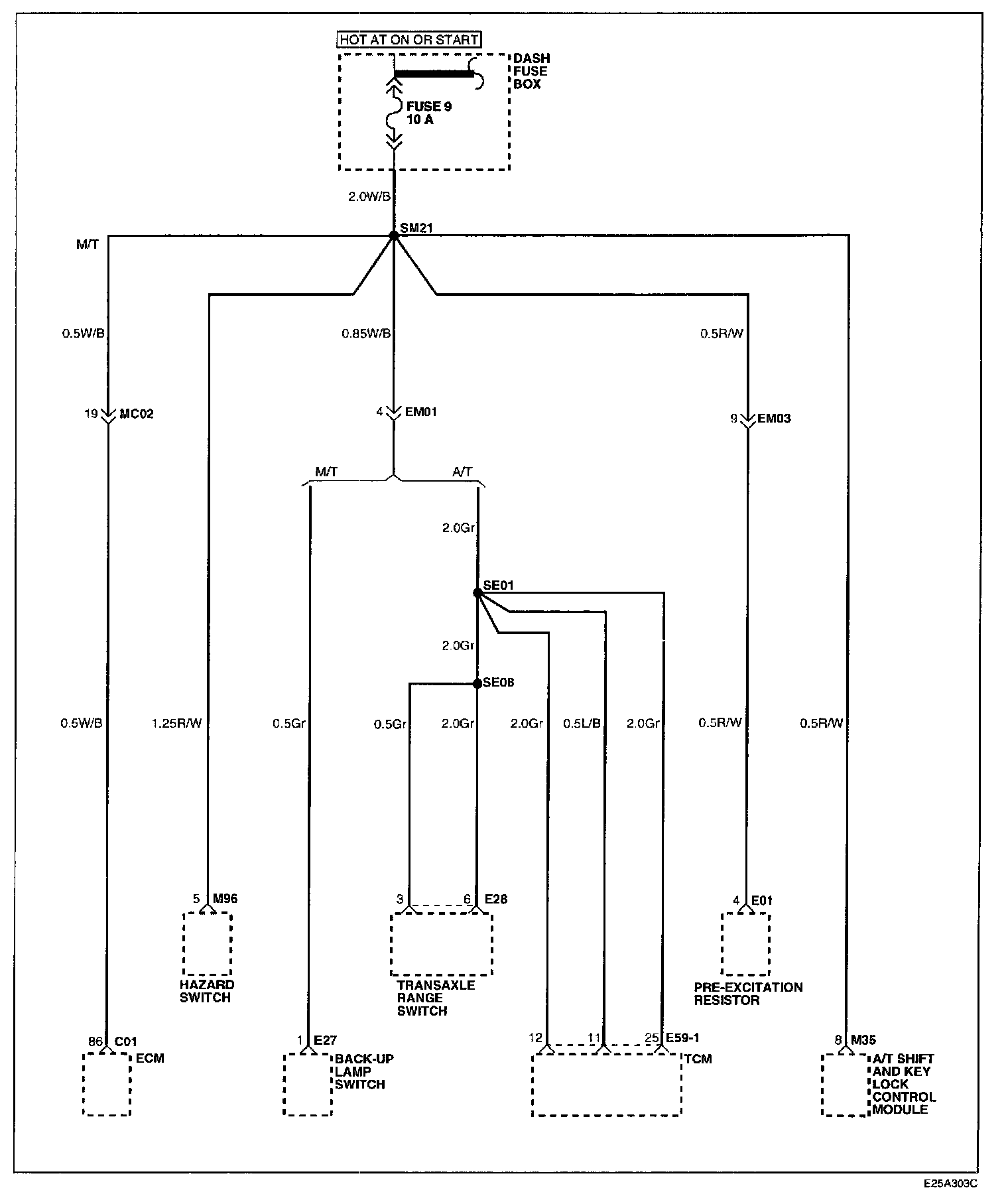

Image SD - 17:

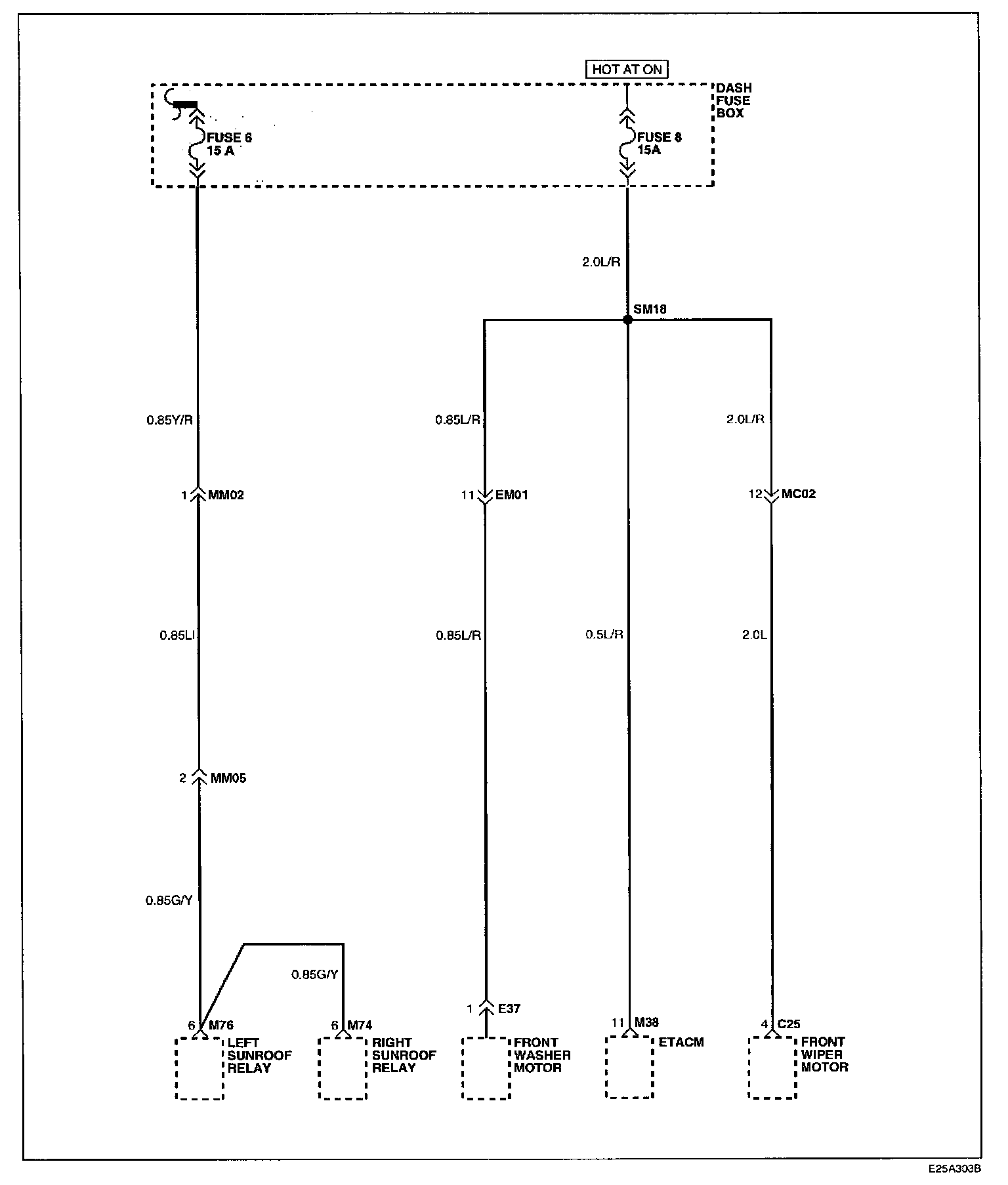

Image SD - 18:

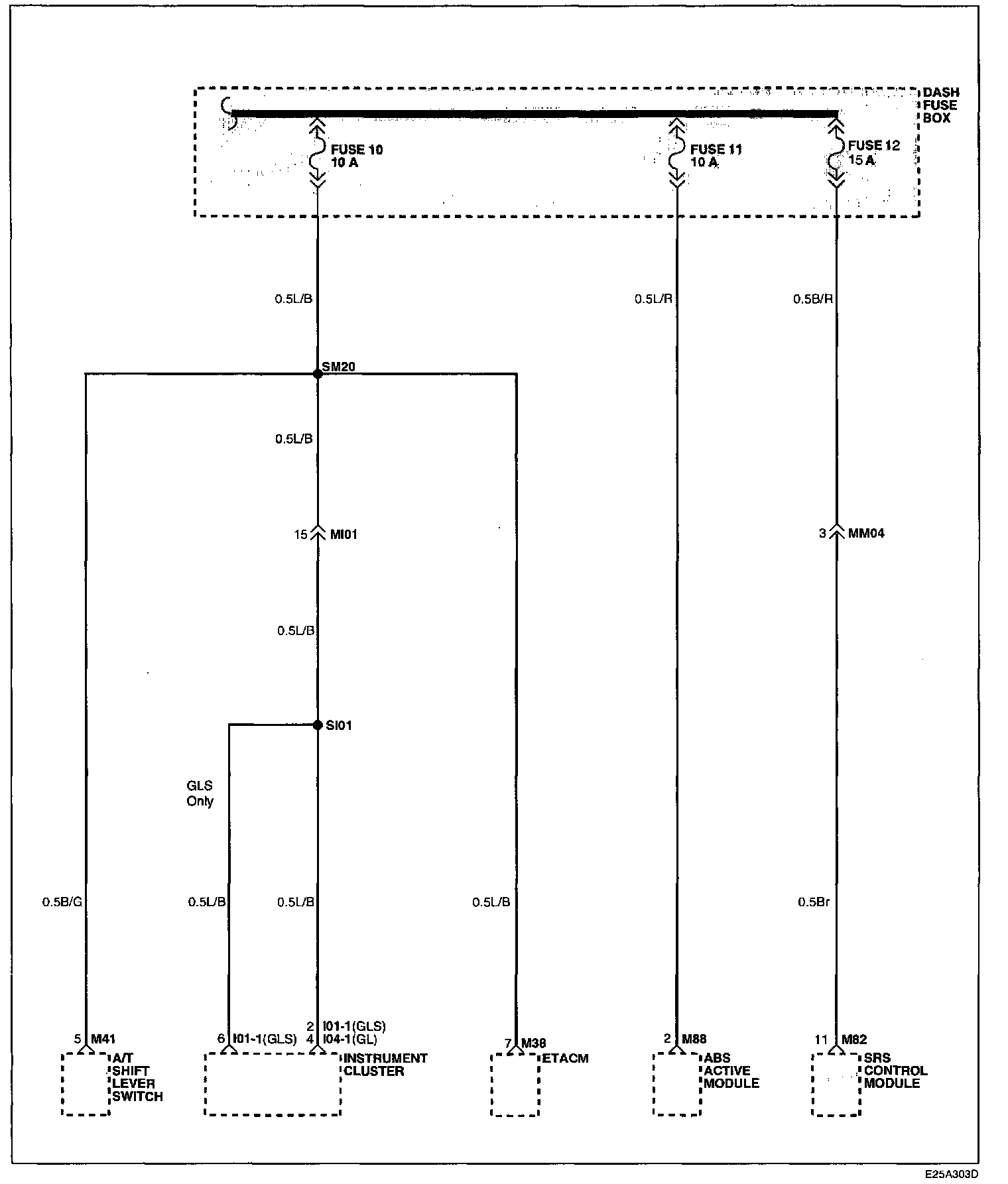

Image SD - 19:

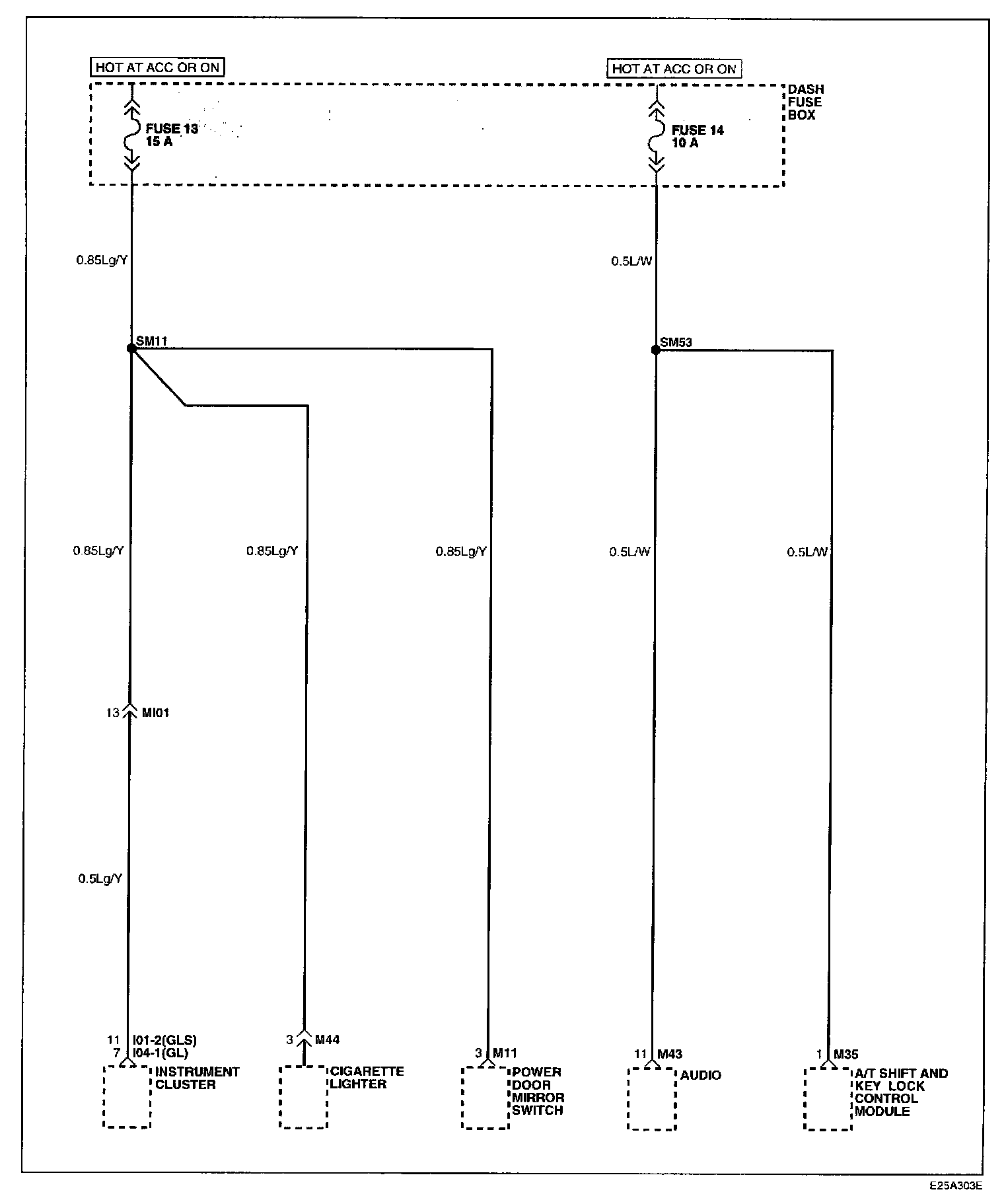

Image SD - 20:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section (Elantra) Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section (Elantra) Of Vehicle.
Locations
