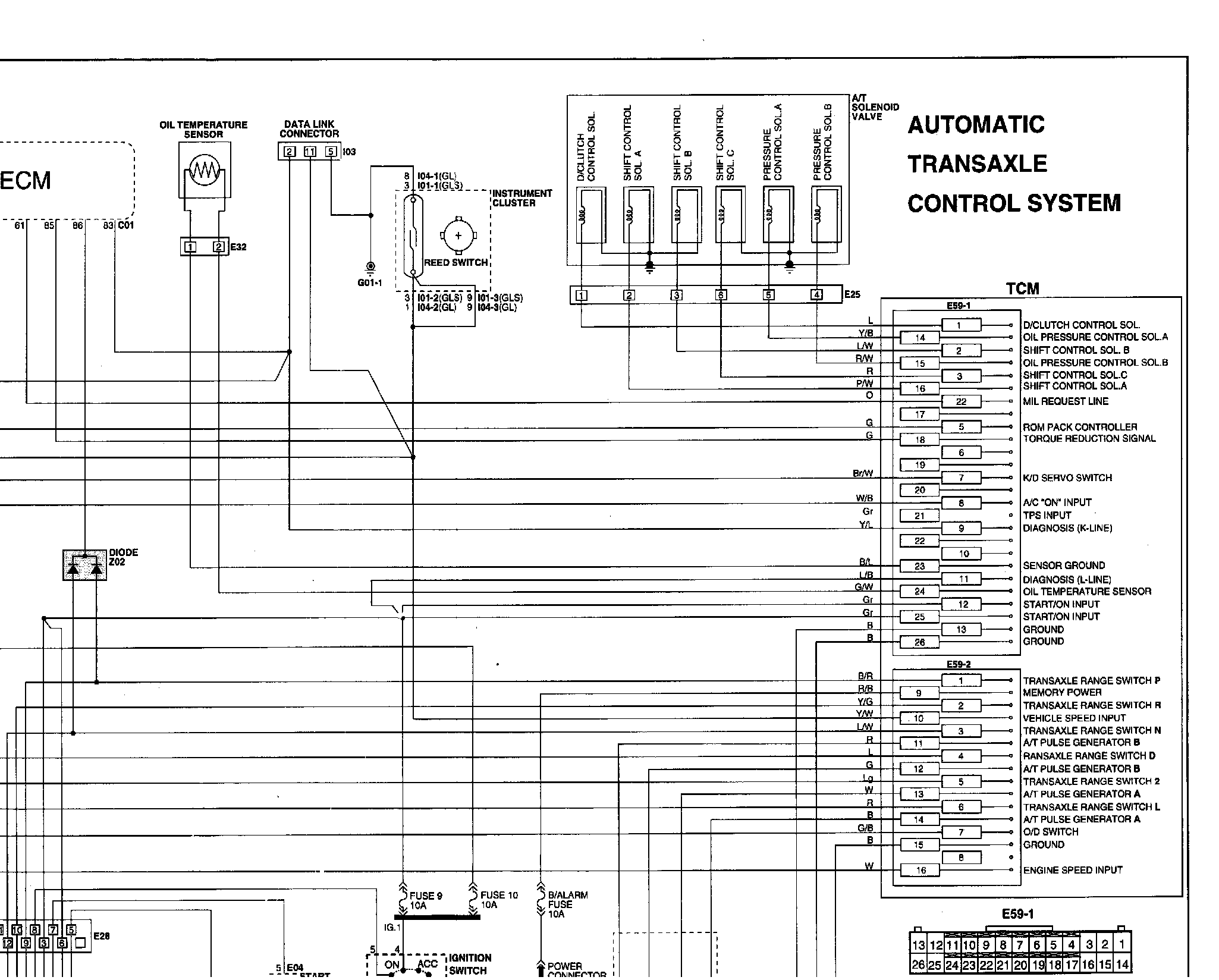

System Diagram

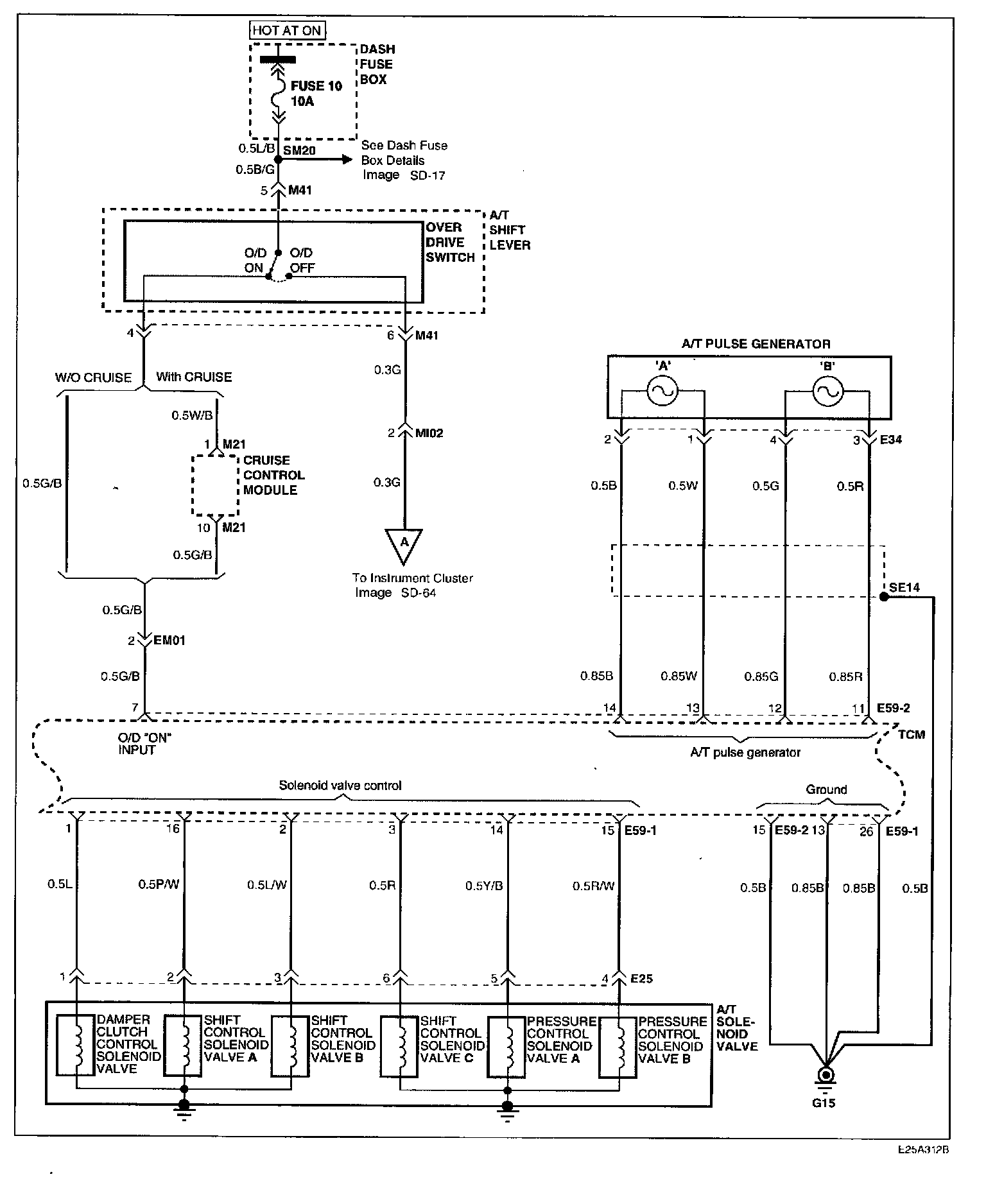

Image SD - 62:

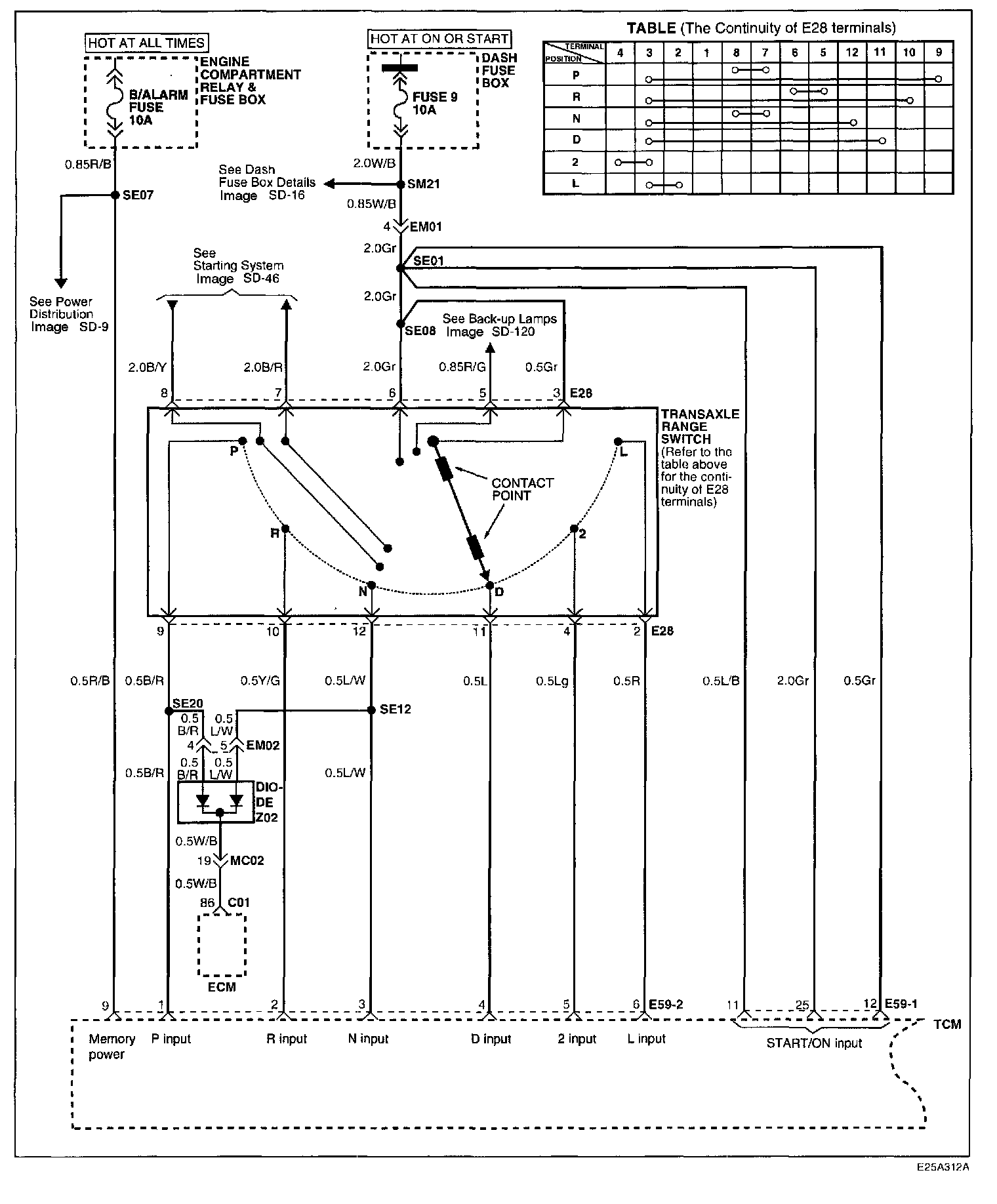

Image SD - 63:

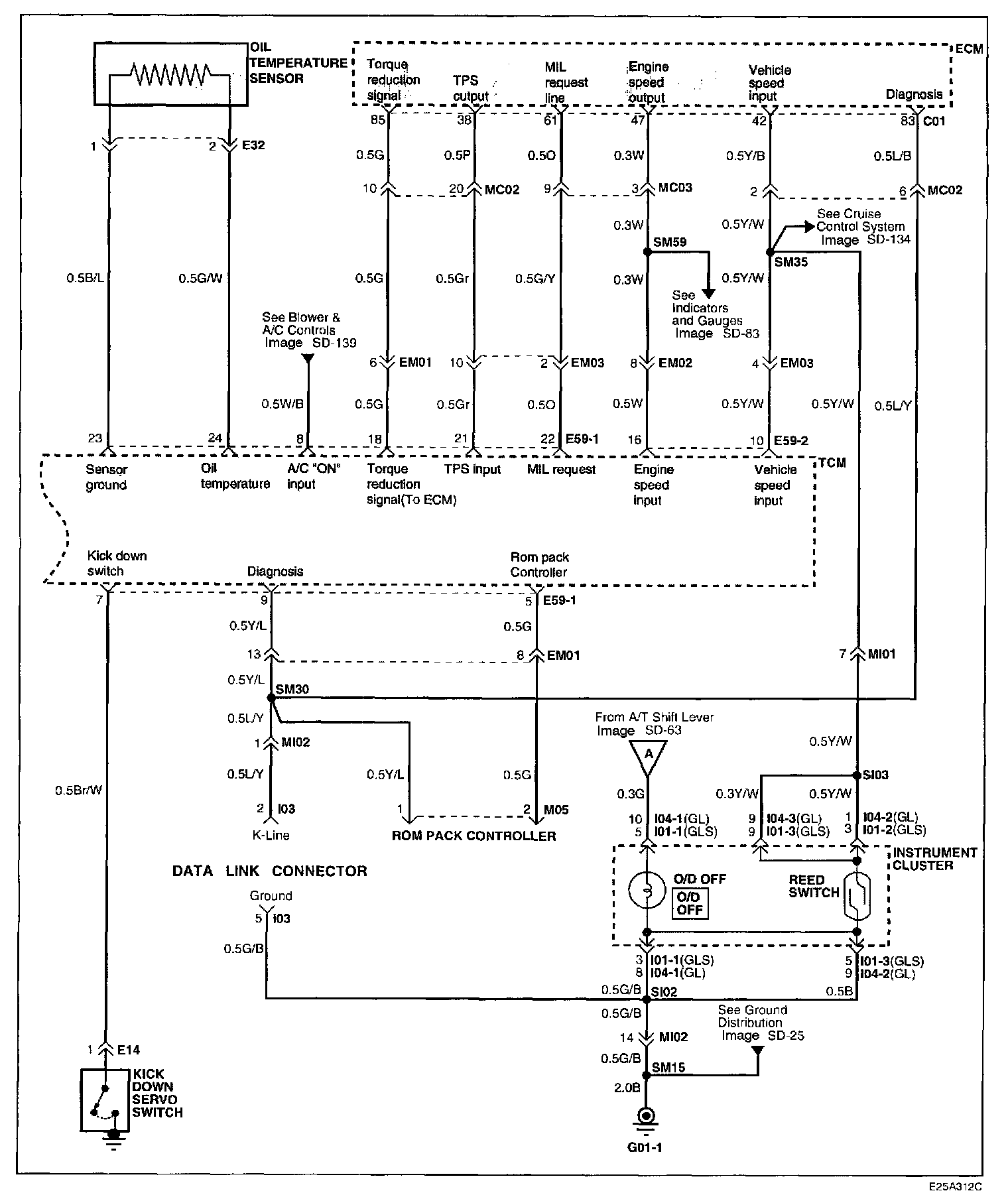

Image SD - 64:
�2JP�2J�2JImage SD 64-1:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section (Elantra) Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section (Elantra) Of Vehicle.
Locations
