Home
>>
Hyundai
>>
2000
>>
Elantra GLS Wagon L4-2.0L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Locations
>>
Component Locations
>>
HECU (Hydraulic Electronic Control Unit)
HECU (Hydraulic Electronic Control Unit)

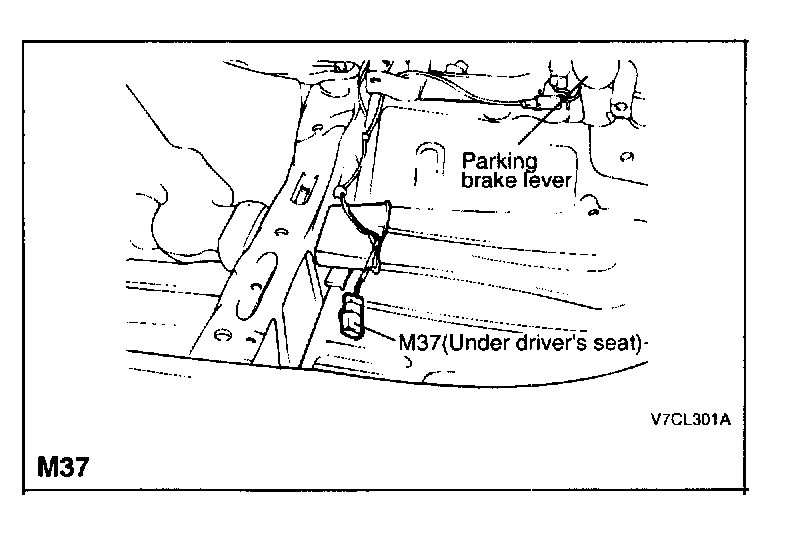

M37 Driver seat belt switch:
M82 SRS control module:
M88 ABS active module:

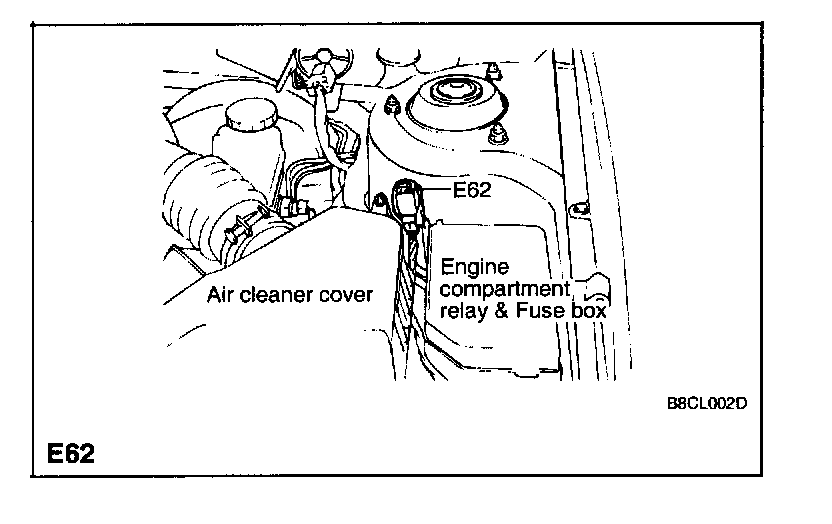

E62 ABS bleeding connector:
