Sedan

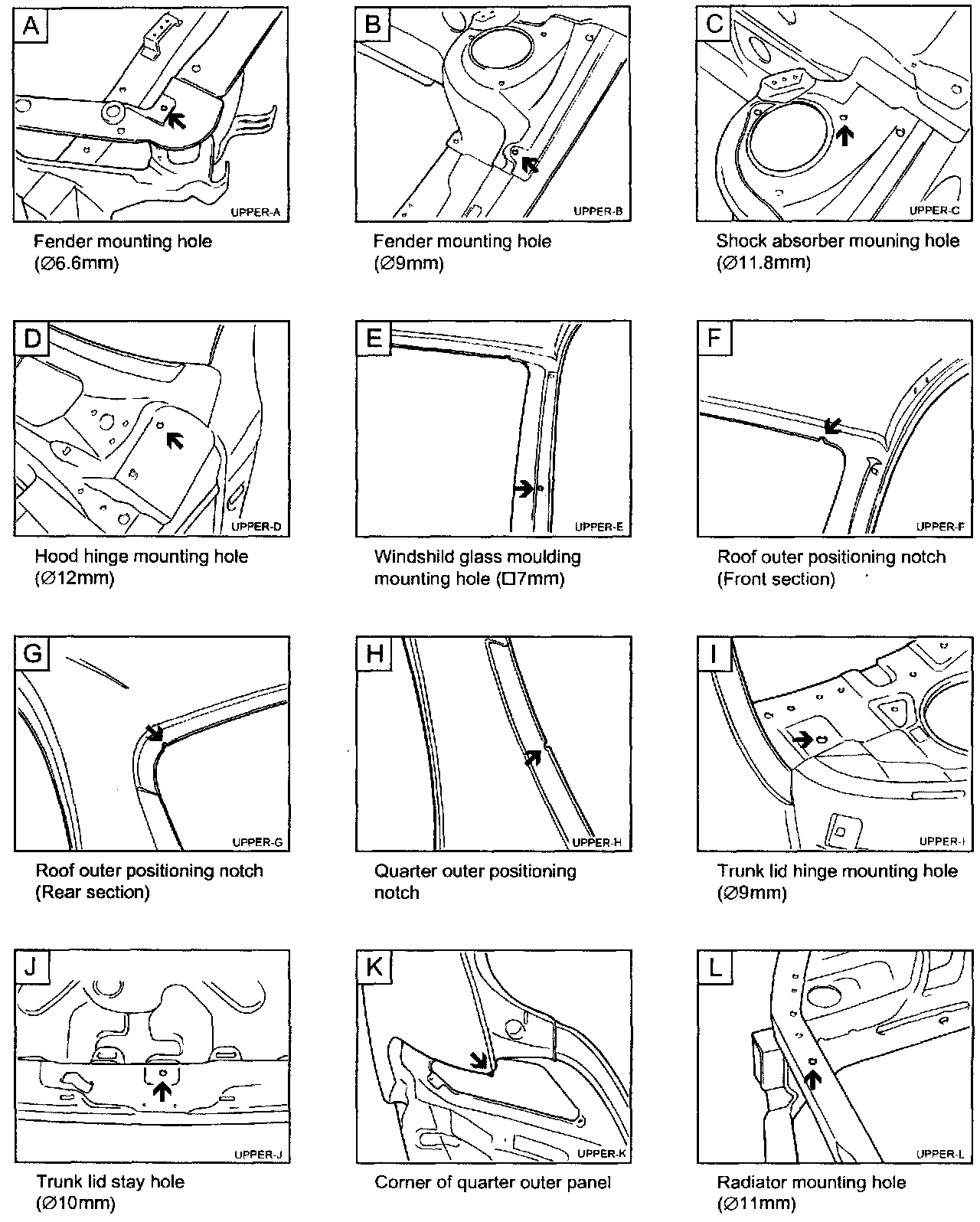

UPPER BODY

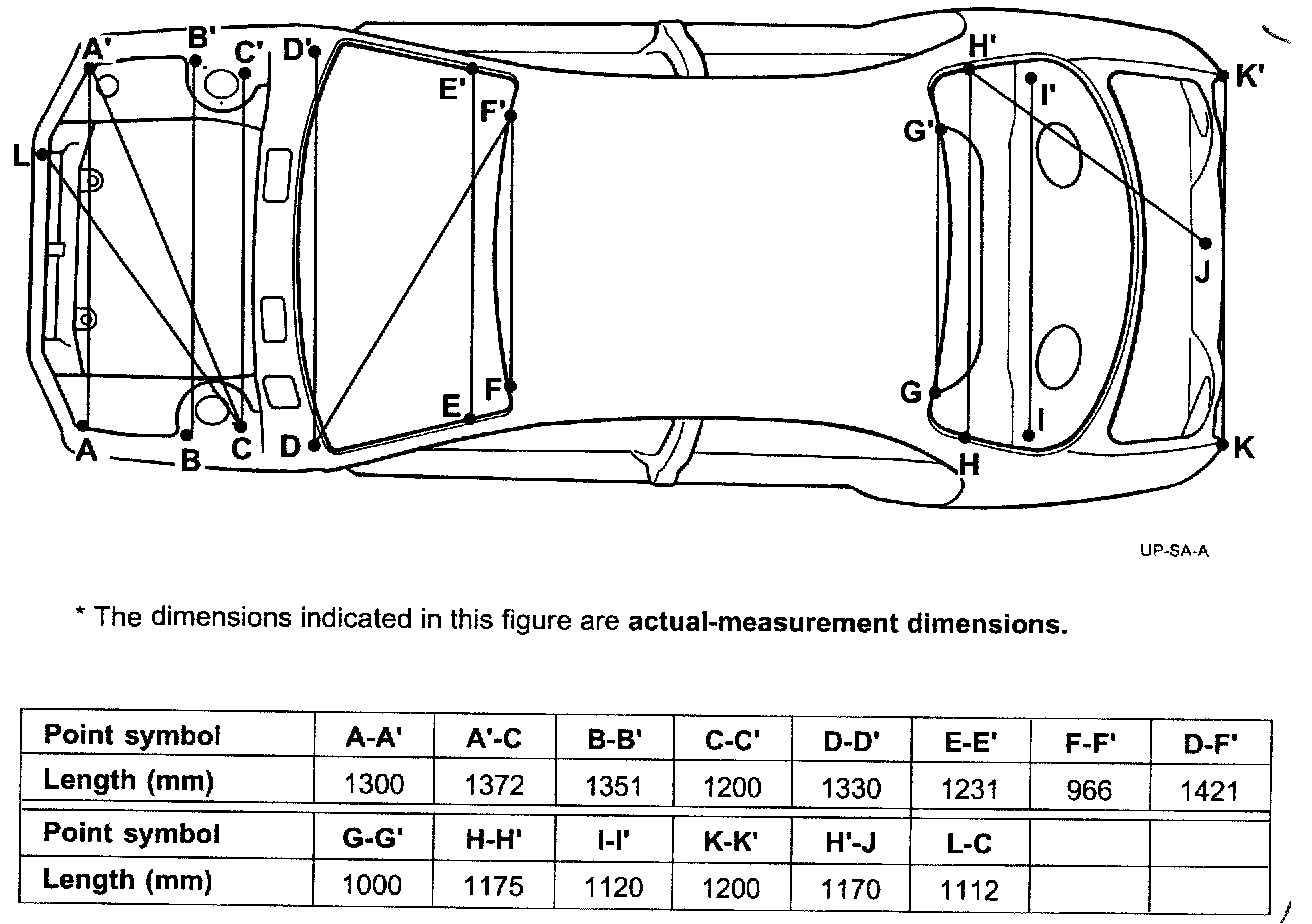

BODY DIMENSIONS - UPPER BODY

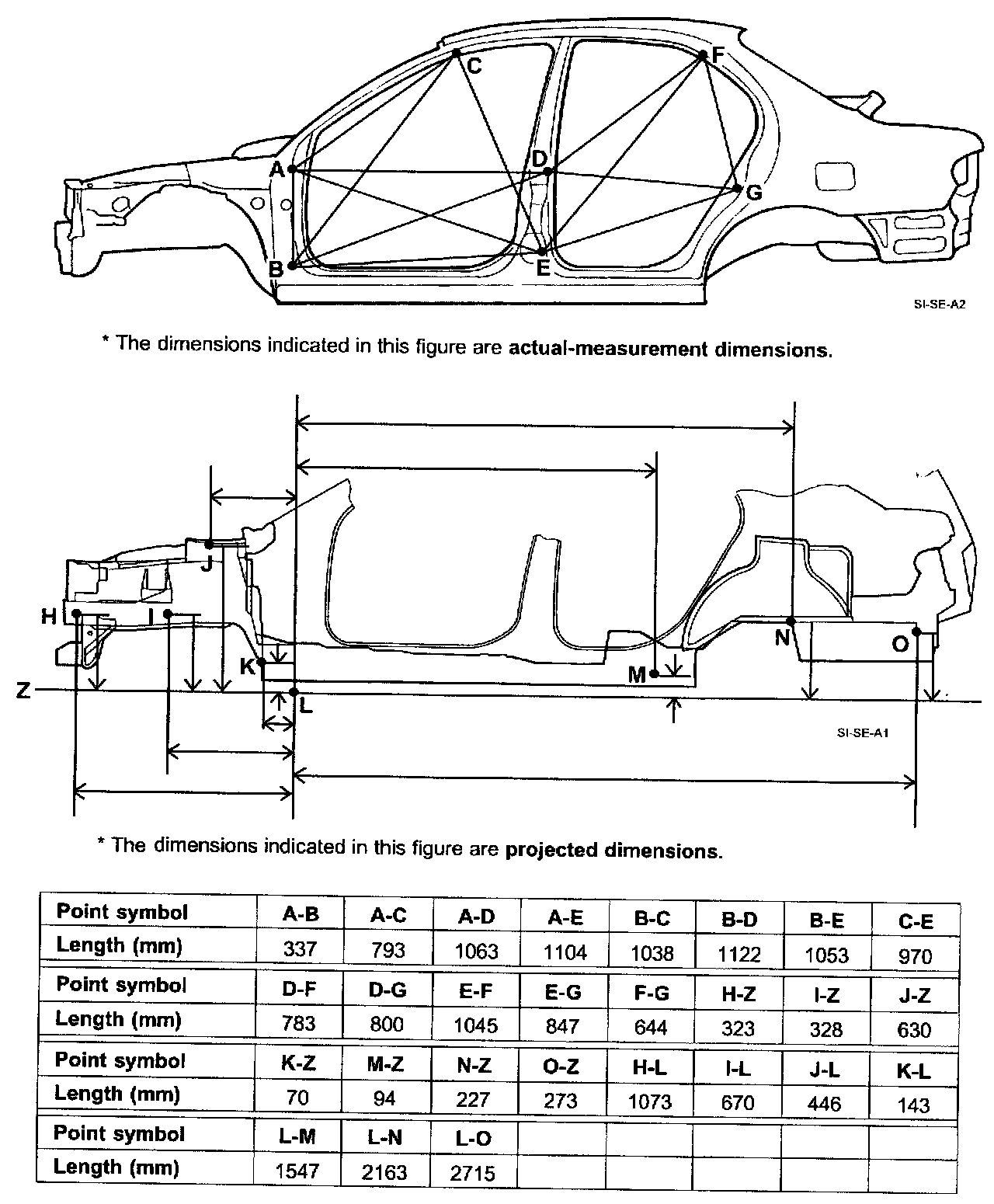

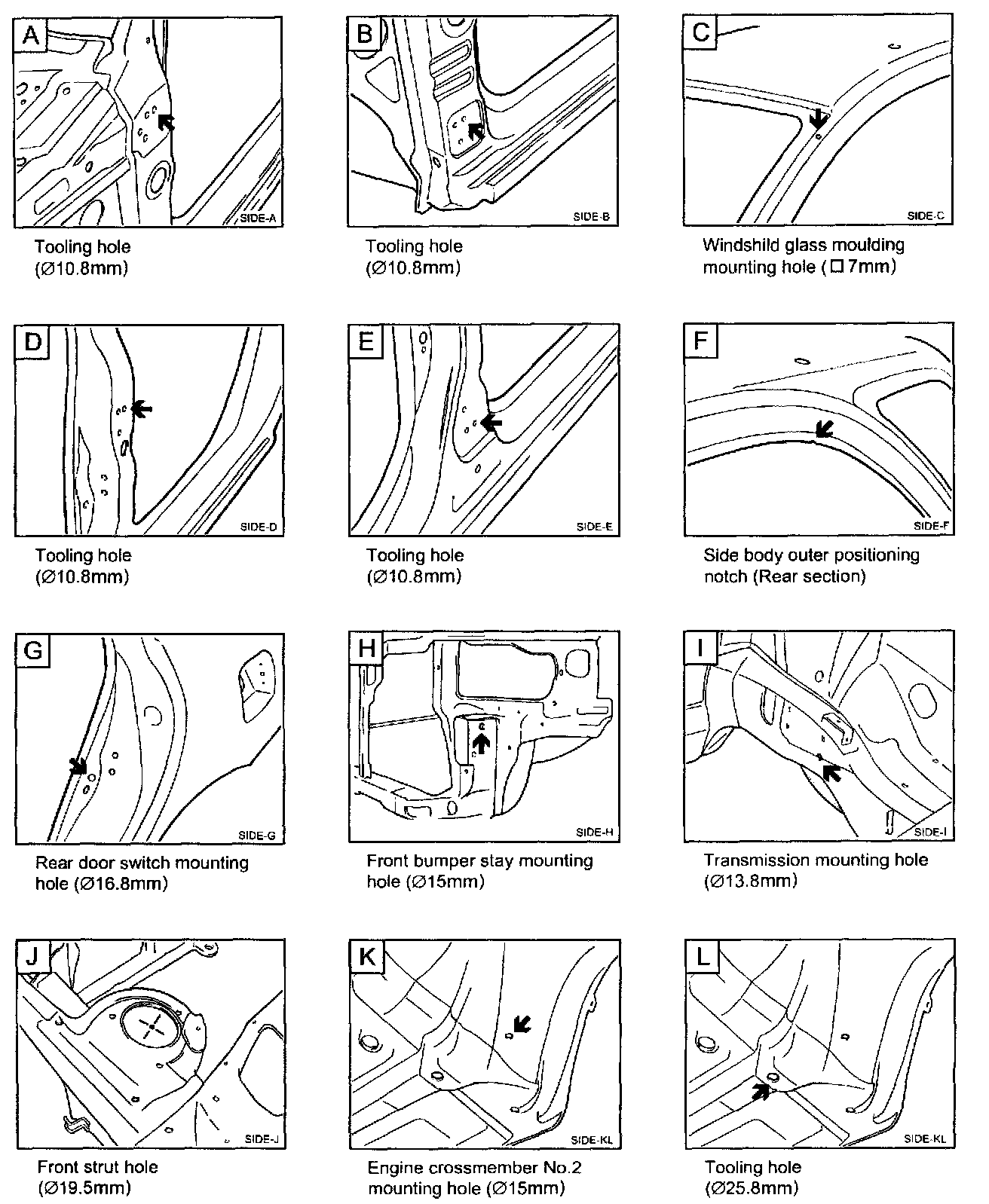

BODY DIMENSIONS - SIDE BODY




BODY DIMENSIONS - SIDE BODY

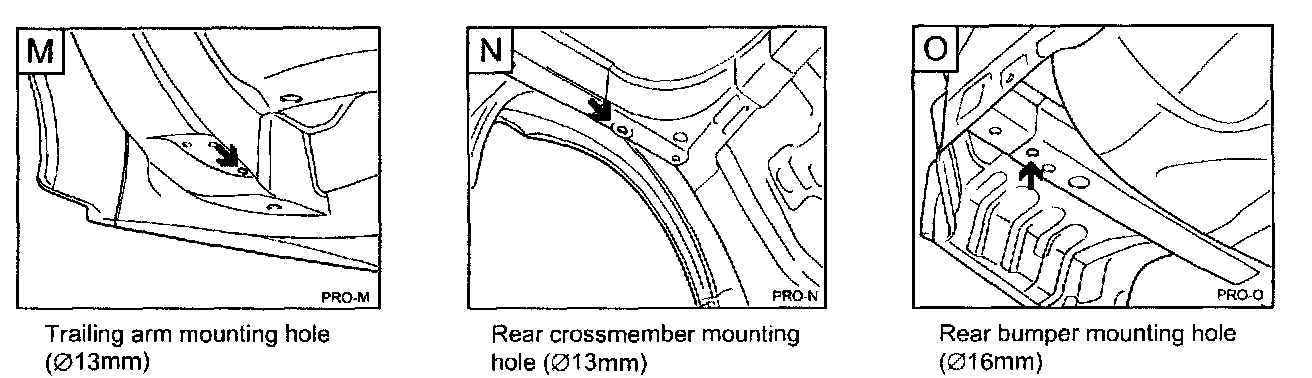

BODY DIMENSIONS - SIDE BODY

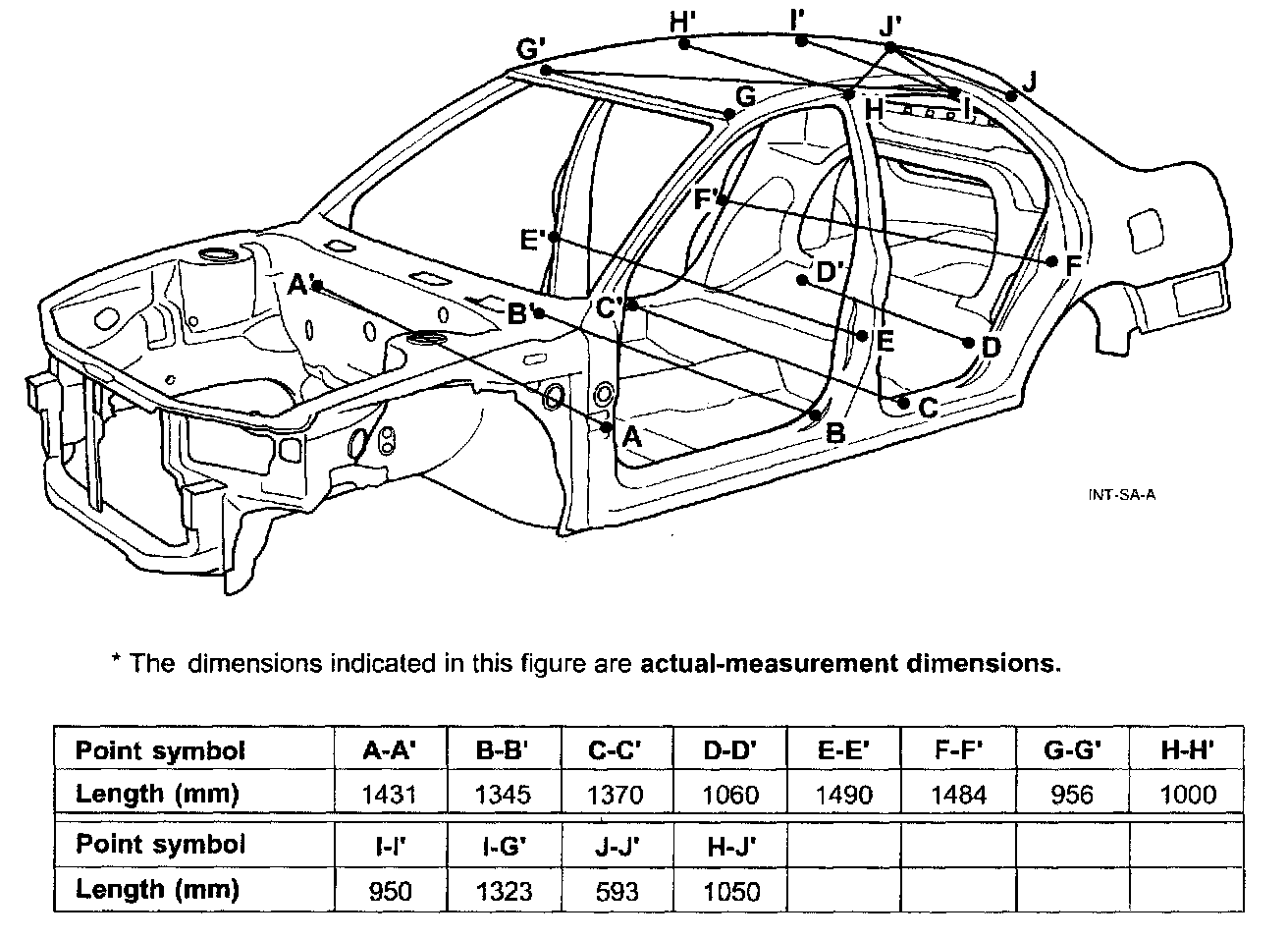

BODY DIMENSIONS - INTERIOR

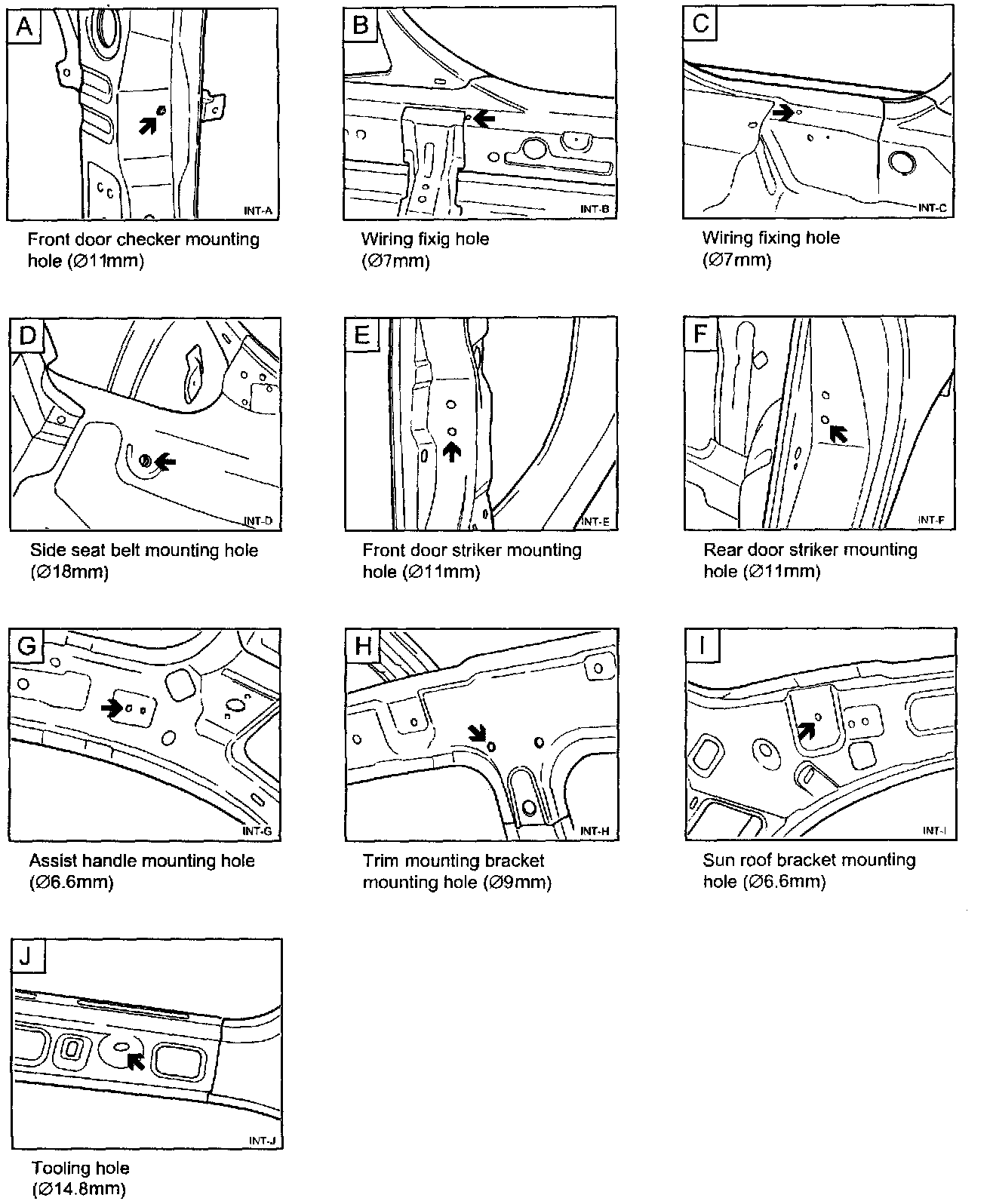

BODY DIMENSIONS - INTERIOR

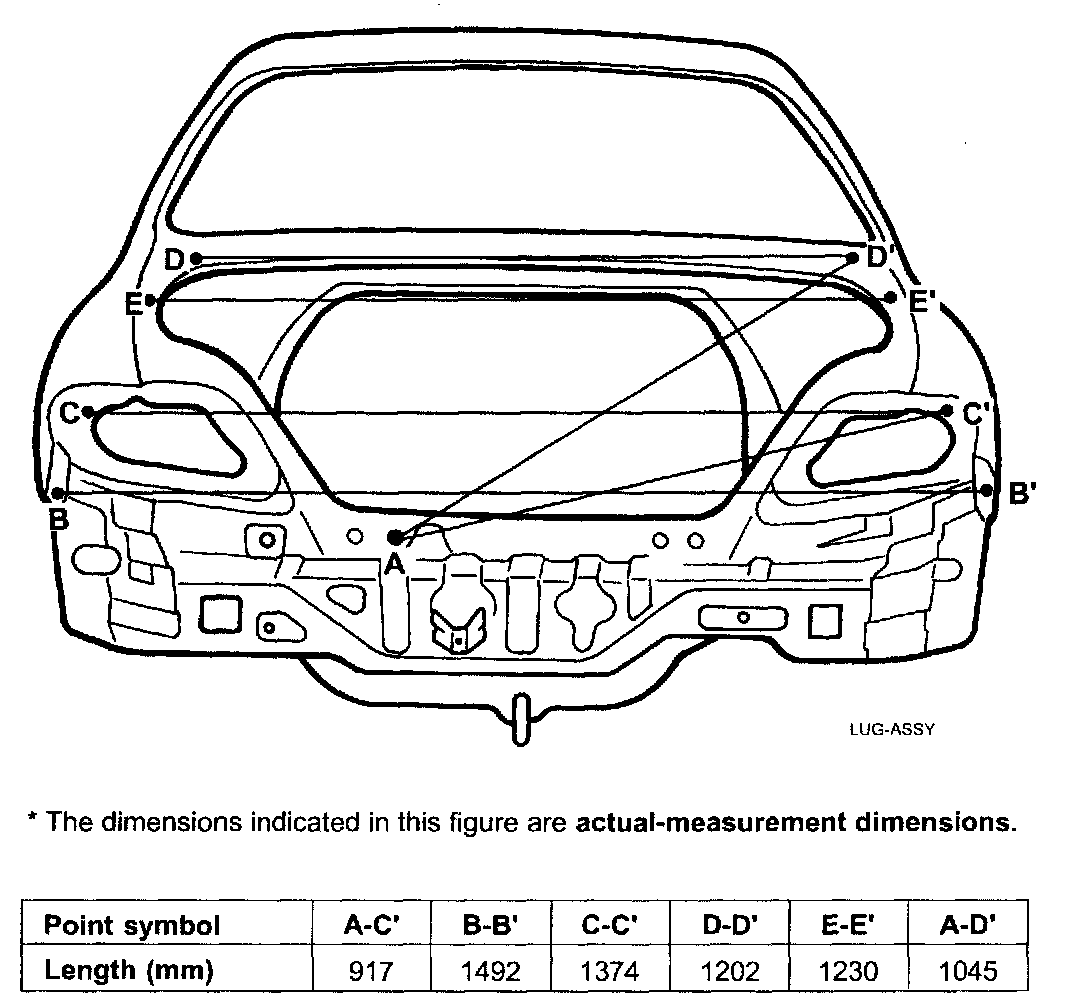

BODY DIMENSIONS - LUGGAGE COMPARTMENT

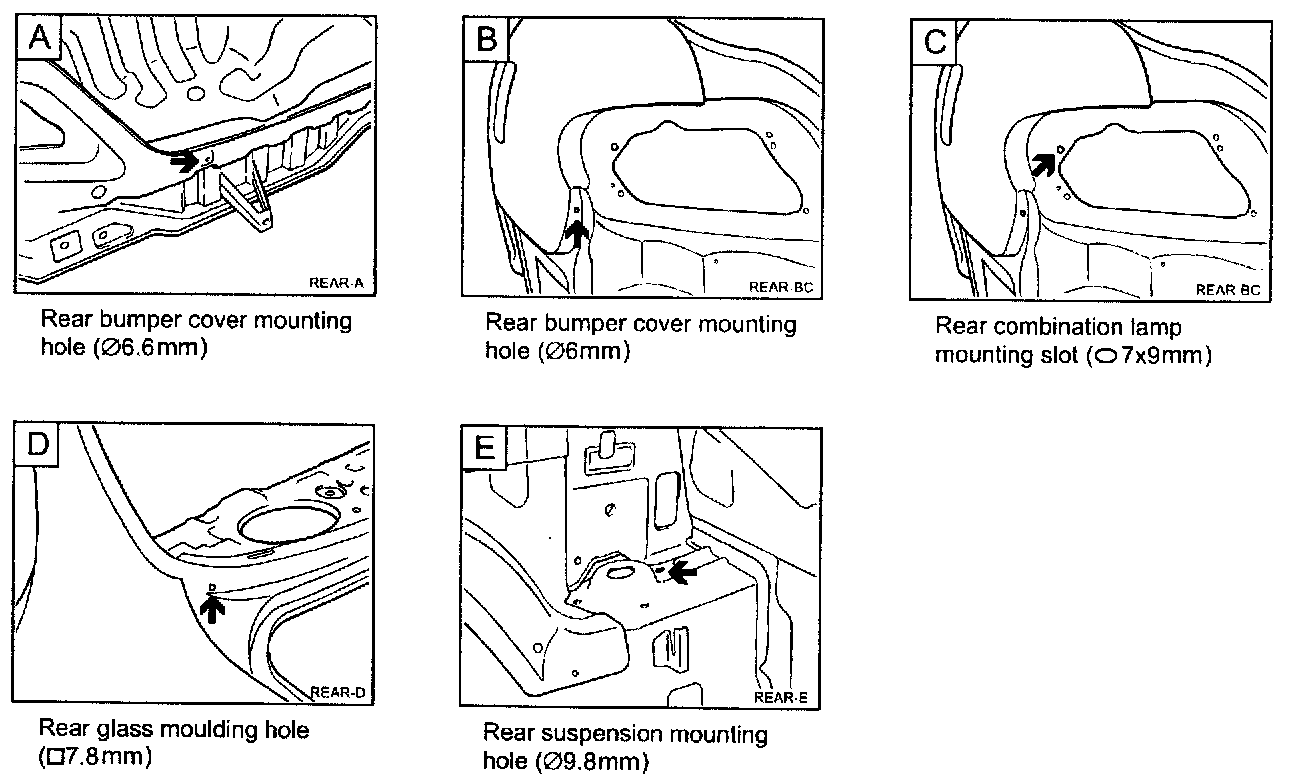

BODY DIMENSIONS - LUGGAGE COMPARTMENT
