Front Seat

FRONT SEAT

Front Seat:

REMOVAL AND INSTALLATION

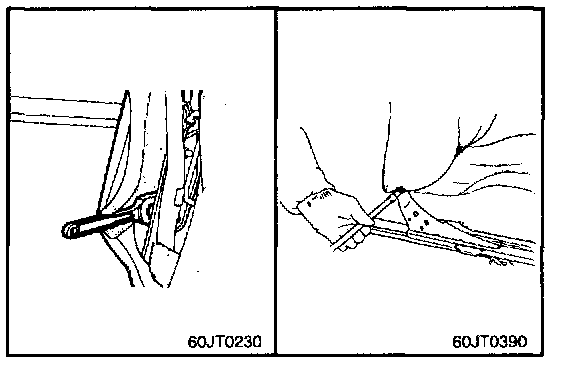

1. Pull out front seat mounting cover and remove the bolts.






2. Remove the front seat assembly.

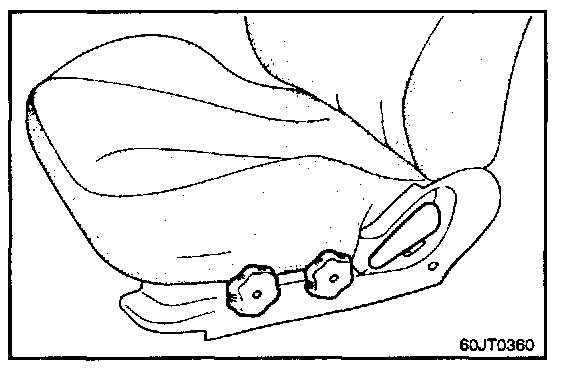

3. Remove the seat recliner control lever and seat cushion control knobs.

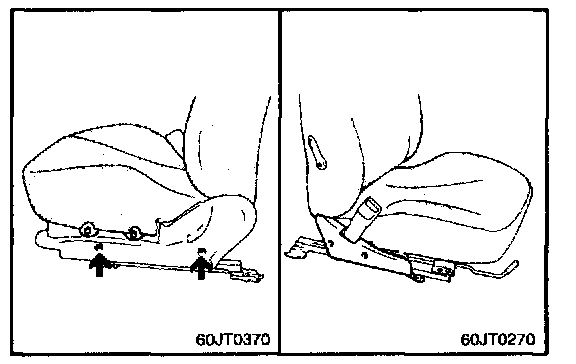

4. Remove the seat shield cover.

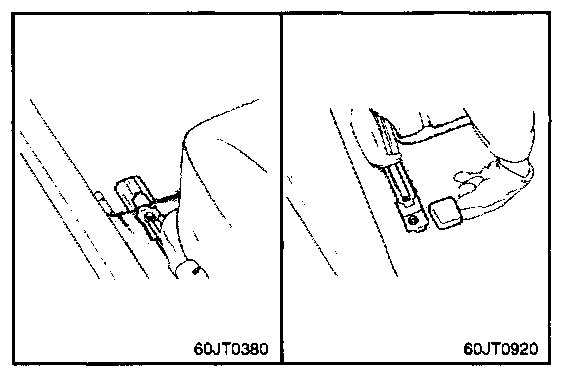

5. Release the zipper of front seat back cover and remove the 2 bolts (14 mm), then remove the 1 bolt (10 mm) in the opposite side.

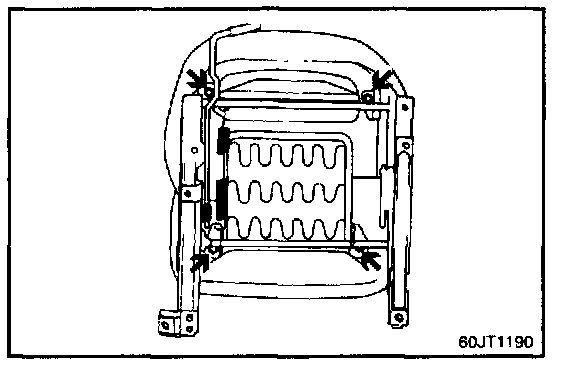

6. Remove the 4 bolts mounted under the seat to remove the front seat track.






7. Installation is the reverse of removal.
