Sunroof / Moonroof: Testing and Inspection

CHECK OPERATING CONDITION AFTER

1. If the panel movement is difficult, check and adjust.






1. Make sure the battery voltage is normal.
2. Make sure that the sunroof sliding unit is free of foreign material.

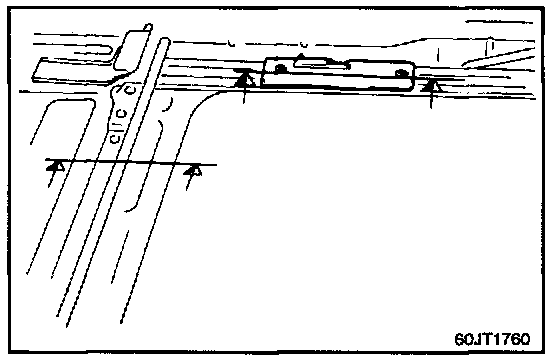

3. Make sure that, when the glass panel opens, the rear position of panel does not interfere excessively with the roof panel. If interference occurs, fully open the glass panel and move the stopper forward.

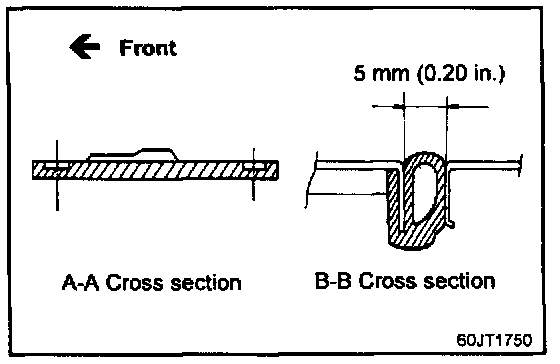

NOTE: If the stopper is moved forward too far, it may cause malfunction or leaks. Make sure the gap between the glass panel and roof panel is not more then 5.8 mm (0.28 in.).

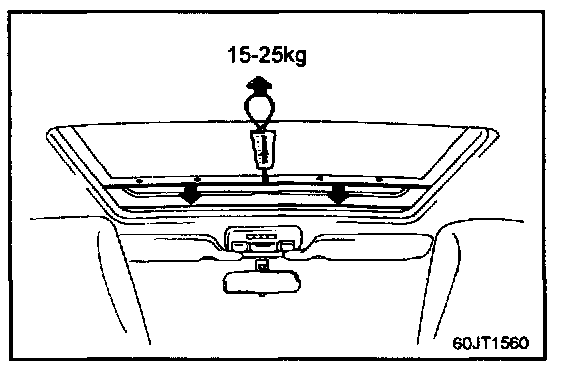

4. Measure the driving force of the motor, and adjust it to 15-25 kg (33.1-55.7 lb) with the torque adjustment nut on the motor.






5. To measure, use the deep hole in the center of the lid lower panel.
