Rear Wheel House Trim

REAR WHEEL HOUSE TRIM

REMOVAL

[SEDAN]

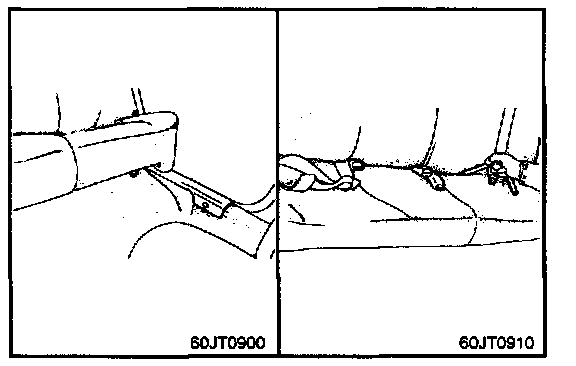

1. Pull the rear seat mounting clip and remove the mounting bolts.

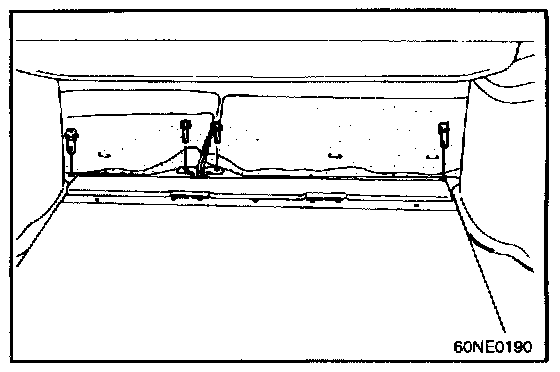

2. Untighten the rear seat back side cover mounting bolt and remove the rear seat back side cover from hook while lifting the rear seat back side cover.

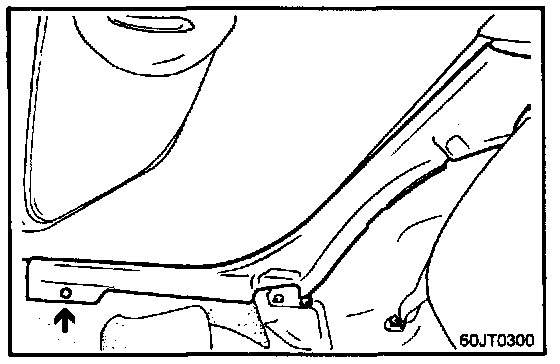

3. Remove the trim mounting plug from the rear wheel house trim.






[WAGON]

1. Remove the rear seat cushion.

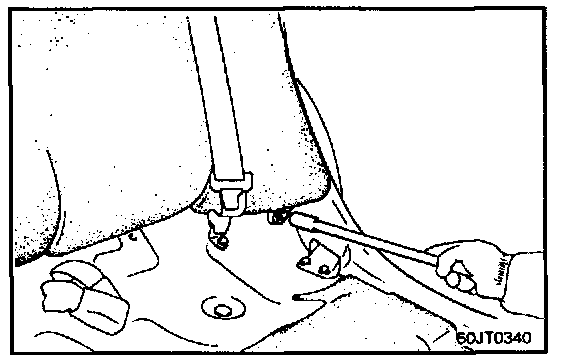

2. Remove the rear seat back main mounting bolts, from the rear seat back.

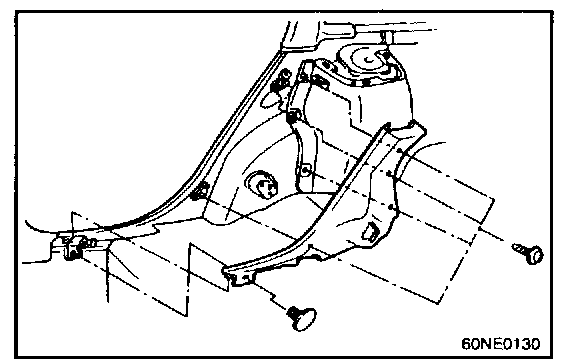

3. Remove the trim mounting plug and mounting screw.






INSTALLATION

1. Installation is the reverse of removal.
