Rear Pillar Trim Replacement
REAR PILLAR TRIMREMOVAL
[SEDAN]
1. To remove the rear pillar trim, first remove the following parts:
1. Remove the front seat belt upper mounting bolt.
2. Remove the center pillar lower trim.
3. Remove the center pillar upper trim.

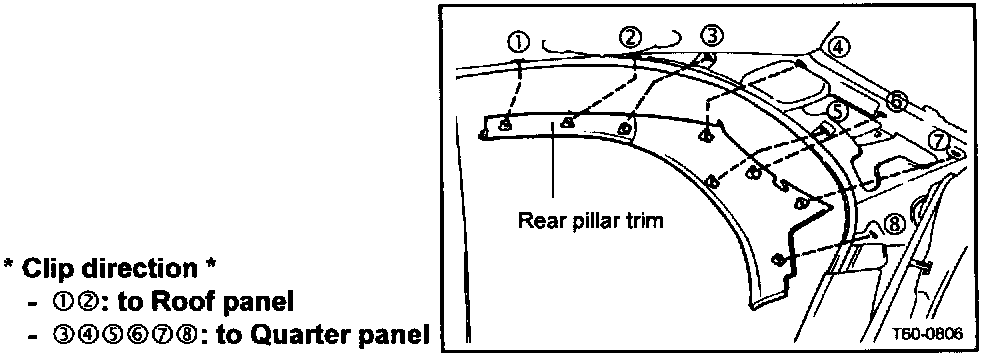

4. Using a (-) screwdriver remove the rear pillar trim.
[WAGON]
1. To remove the rear pillar trim, first remove the following parts:
1. Remove the cargo security screen.
2. Remove the rear speaker grill.
3. Remove the rear wheel house trim.
4. Remove the luggage side trim.
5. Remove the rear seat belt extension bar mounting bolt.
6. Remove the end trim.

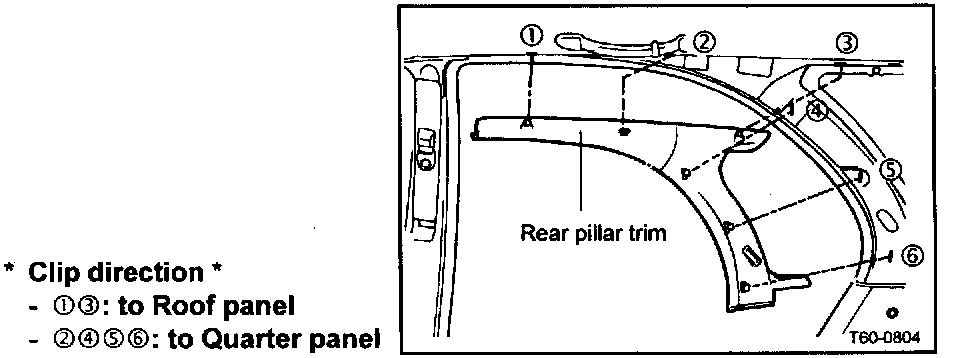

7. Using a (-) screwdriver remove the rear pillar trim.
INSTALLATION
1. Installation is the reverse of removal.
