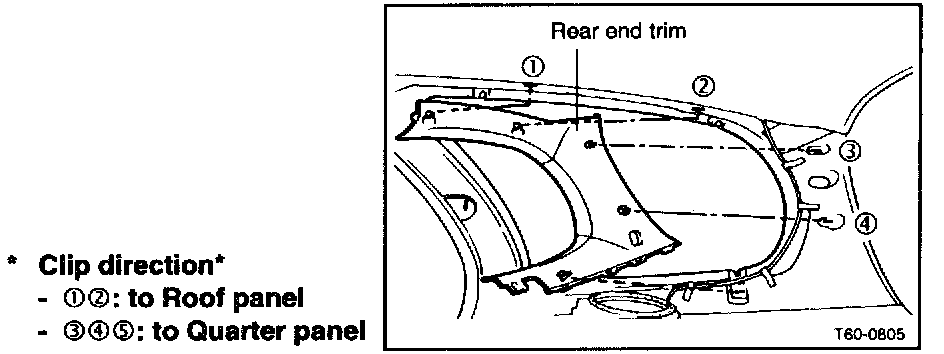

Rear End Trim
REAR END TRIMREMOVAL
1. To remove the rear end trim, first remove the following parts:
1. Remove the cargo security screen.
2. Remove the rear speaker grill.
3. Remove the luggage side trim.
4. Remove the cargo security screen holder.
5. Remove the rear seat belt extension bar mounting bolt.
6. Using a (-) screwdriver remove the rear end trim.
INSTALLATION
1. Installation is the reverse of removal.
