Luggage Side Trim

LUGGAGE SIDE TRIM

REMOVAL

[SEDAN]

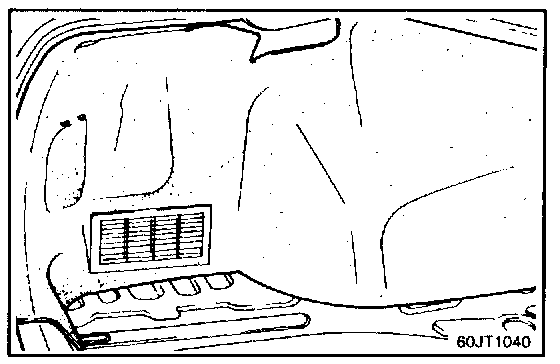

1. Remove the screws and plugs from the luggage side trim.






[WAGON]

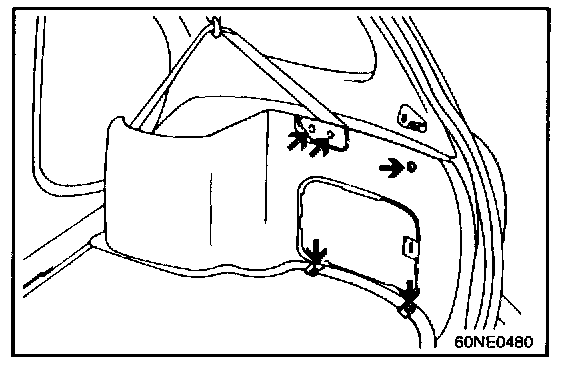

1. To remove the luggage side trim, first remove the following parts:






1. Remove the cargo security screen.
2. Remove the rear speaker grill.
3. Remove the rear wheel house trim.
4. Remove the rear transverse trim
5. Remove the luggage side trim

INSTALLATION

1. Installation is the reverse of removal.
