Front Pillar Trim Replacement

FRONT PILLAR TRIM

REMOVAL

1. To remove the front pillar trim, first remove the following parts:






1. Remove the front seat belt upper mounting bolt.
2. Remove the center pillar lower trim.
3. Remove the center pillar upper trim.

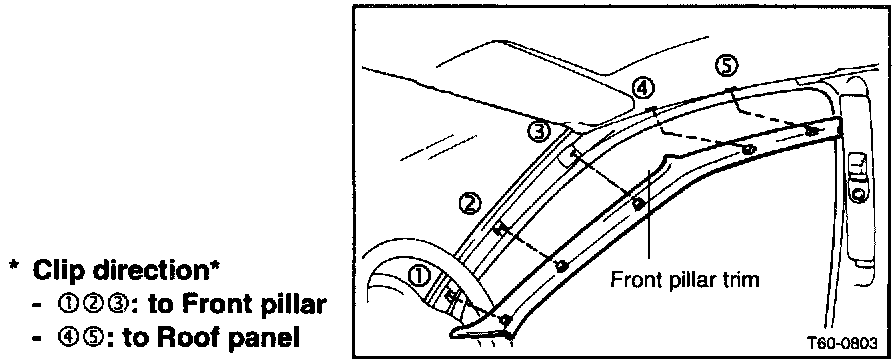

4. Using a (-) screwdriver remove the front pillar trim.

INSTALLATION

1. Installation is the reverse of removal.
