Center Pillar Trim Replacement
CENTER PILLAR TRIMREMOVAL

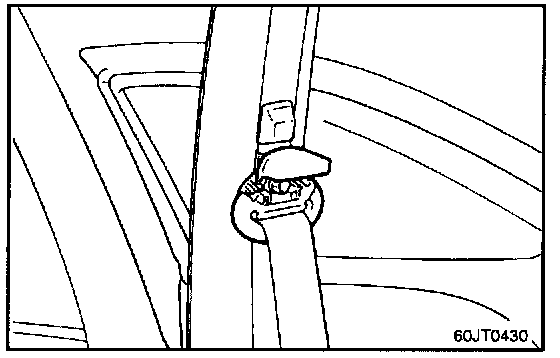

1. Remove the front seat belt upper mounting bolt.

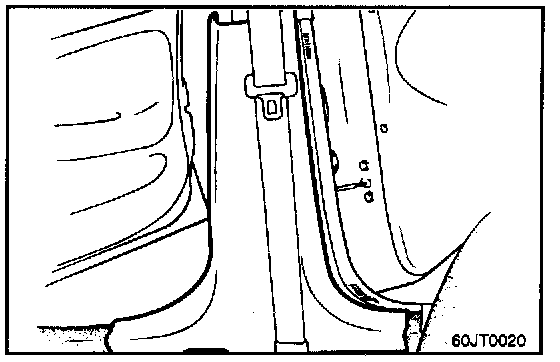

2. Remove the center pillar lower trim.

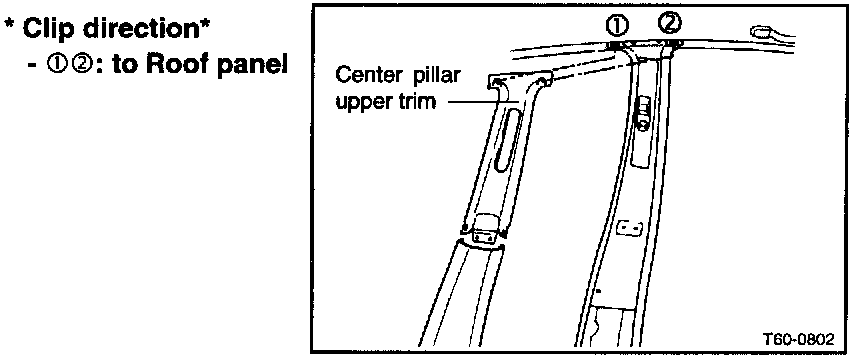

3. Remove the center pillar upper trim.
INSTALLATION
1. Installation is the reverse of removal.
REMOVAL
1. Remove the front seat belt upper mounting bolt.
2. Remove the center pillar lower trim.
3. Remove the center pillar upper trim.
INSTALLATION
1. Installation is the reverse of removal.
