Console: Service and Repair

CONSOLE

Console:

REMOVAL AND INSTALLATION

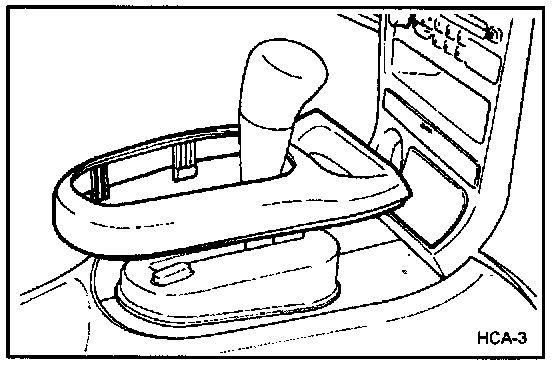

1. Remove the console upper cover.






2. Remove the rheostat.

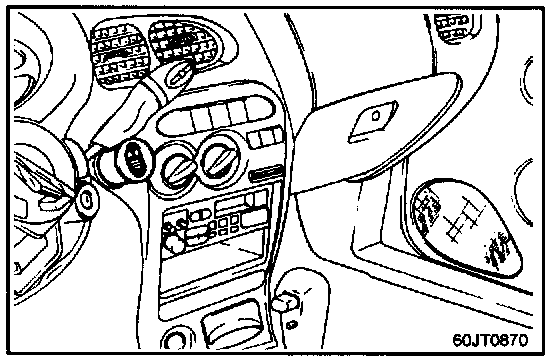

3. Remove the center facia panel mounting screws.

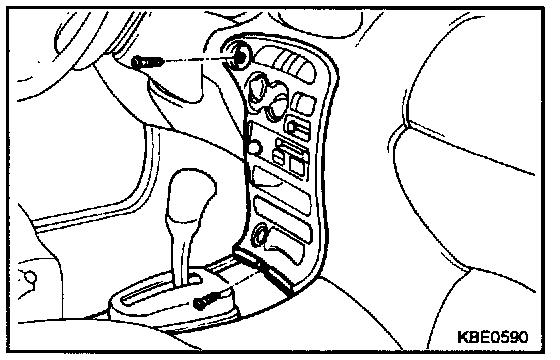

4. Pull the center facia panel forward and then find out the console mounting screws.

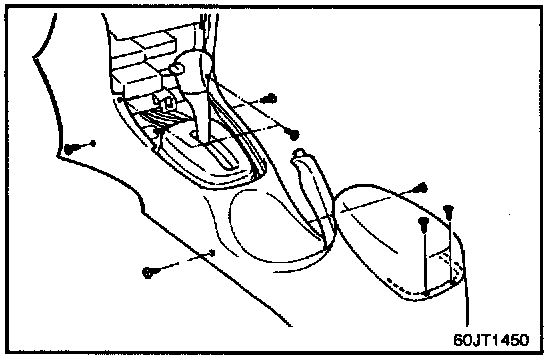

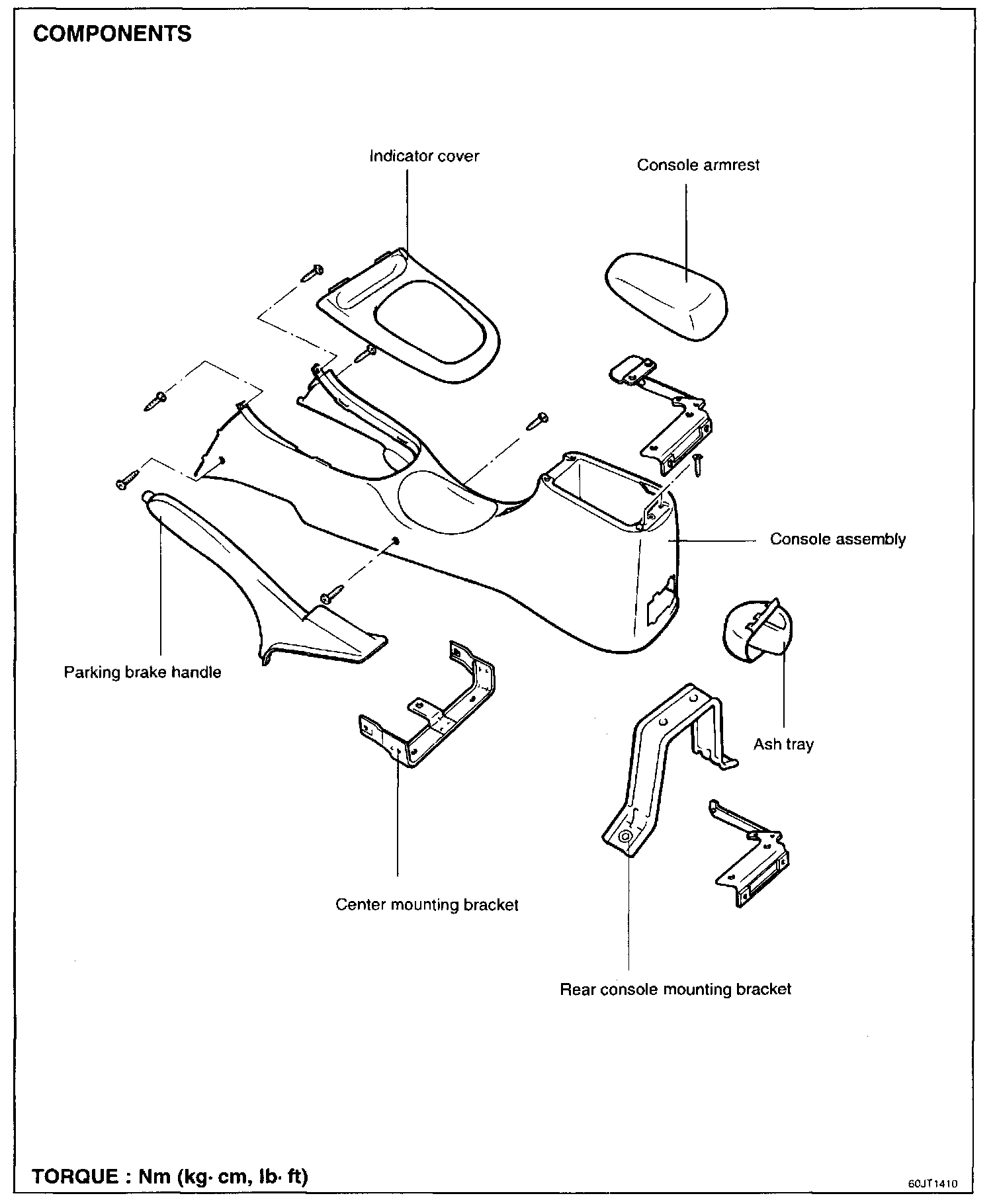

5. Remove the console assembly.






6. Installation is the reverse of the removal.
