Trunk Lid

ADJUSTMENT

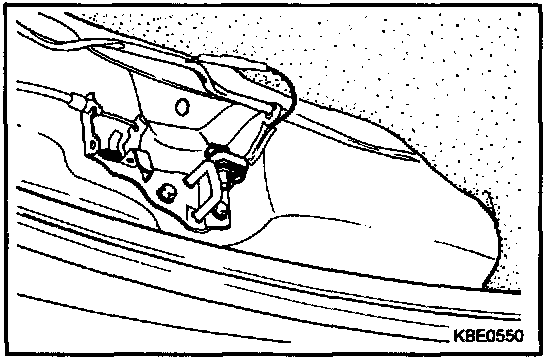

1. Adjust the striker up and down, and right or left until the trunk lid is flush with the rear edge of the body.

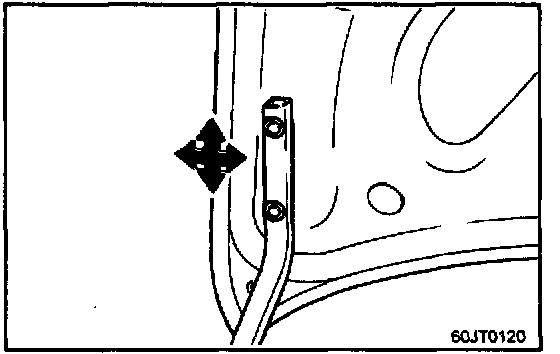

2. Adjust trunk hinges up or down, and right or left until the gap is flush between the lid and body.

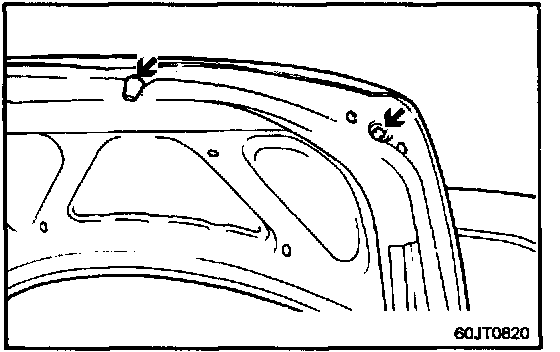

3. Trunk the lid bumpers either clockwise or counterclockwise to adjust the height of the trunk lid.
