Hood: Service and Repair

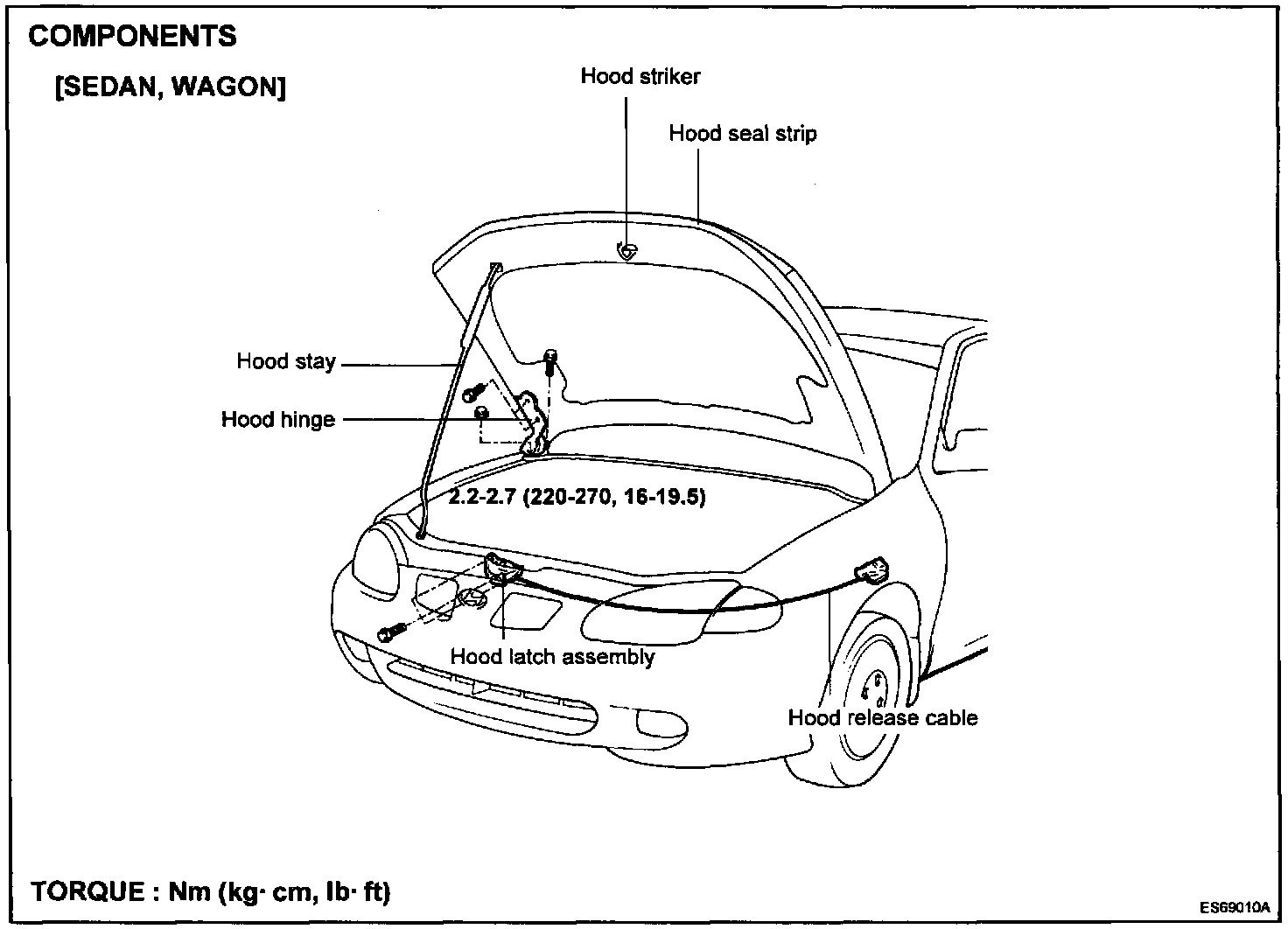

HOOD

Hood:

REMOVAL AND INSTALLATION

1. Remove the hood mounting bolts, and then remove the hood.






CAUTION: Protect the front body area with a cloth so as not to cause damage with the hood.

2. Remove the front bumper upper guard and hood latch.






3. Detach the hood release cable from the hood latch.
4. Installation is the reverse of the removal.
