Hood: Adjustments

ADJUSTMENT

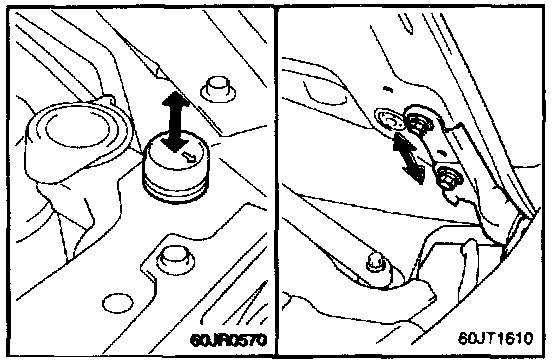

HOOD HINGE

1. Loosen the hood hinge mounting bolt.






2. Adjust the longitudinal and lateral positions of the hood by utilizing the holes in the hinge.
3. Adjust front edge of hood in vertical direction by adjusting the hood overslam bumpers.

HOOD LATCH

1. Loosen the hood latch mounting bolts.






2. Adjust the alignment of the hood latch by adjusting the vertical and lateral position of the hood latch and by adjusting the height of the hood.
