FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Hyundai
>>
1999
>>
Tiburon L4-2.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Motor
>>
Service and Repair
>>
Rear
Rear

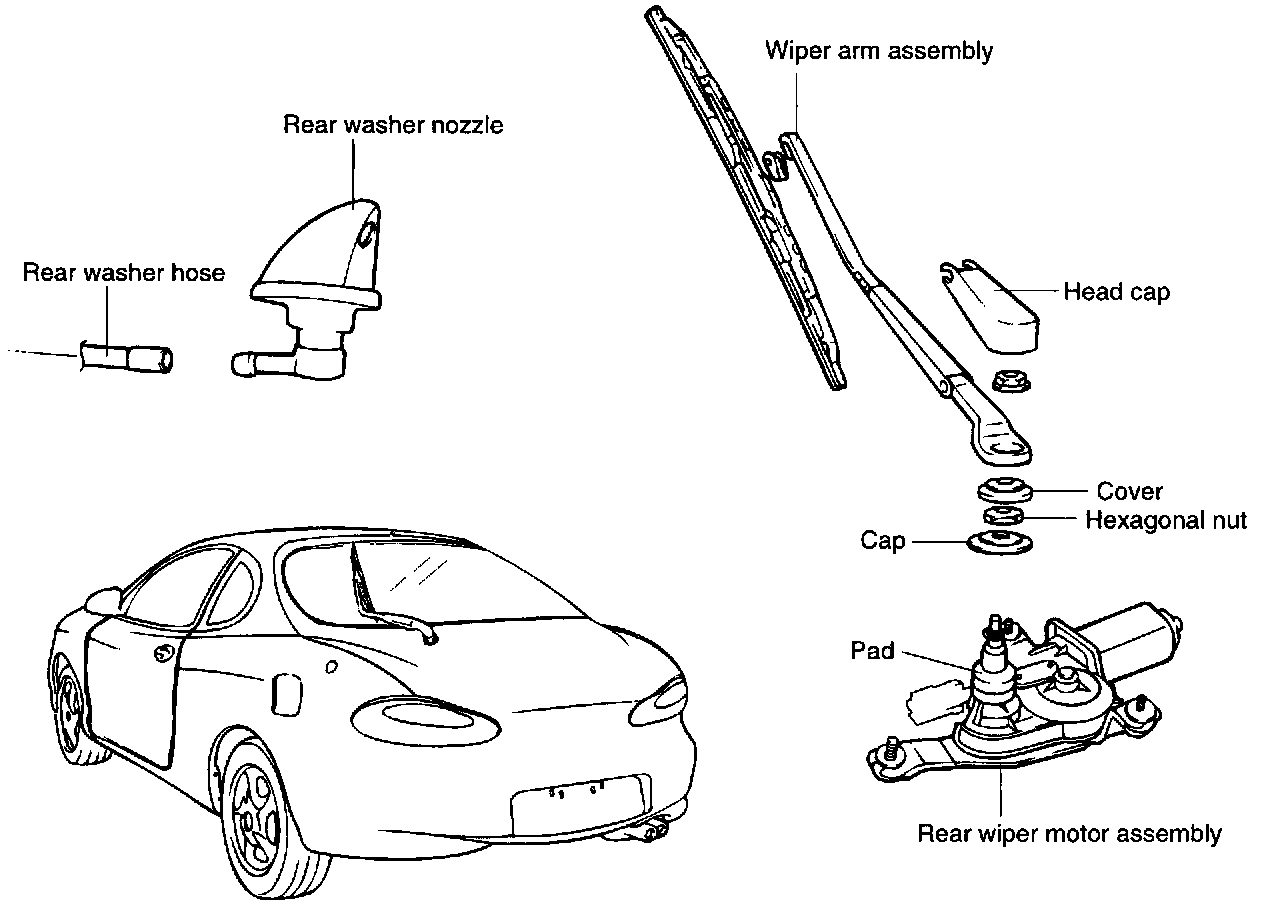

COMPONENTS
1.
Remove the rear
wiper arm
assembly.
2.
Remove the tailgate trim.
3.

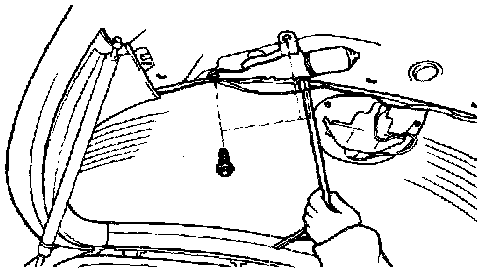

Remove the rear wiper motor from the tailgate.
