Front

COMPONENTS

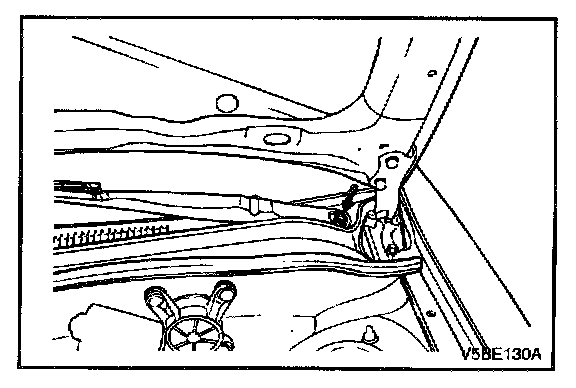

1. Remove the wiper arm mounting nut and wiper arm and blade assembly. Be careful not to scratch the engine hood.

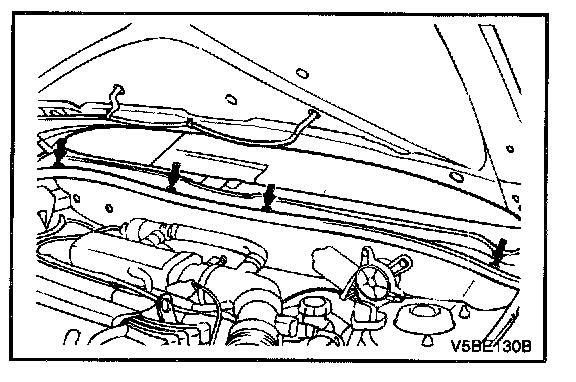

2. Remove the cowl top mounting screws (4EA) and the cowl top cover.




3. Remove the wiper motor connector and mounting bolts (4EA)
4. After disconnect the motor from the link, remove the motor assembly.

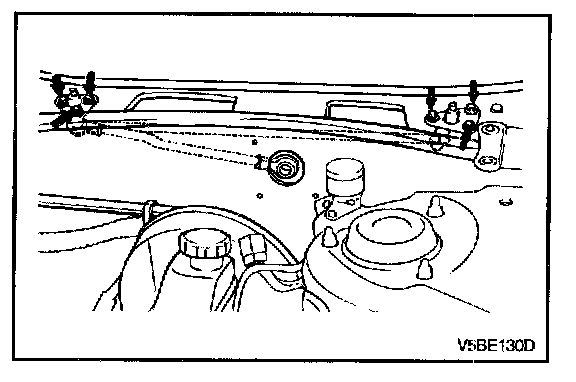

5. Remove the wiper link mounting bolts (6EA) and take out the wiper link assembly from the cowl top panel.
6. Installation is the reverse order of removal procedure.
