Component Tests and General Diagnostics

Check that the following components operates normally as timing chart.

Variable Intermittent Wiper




1. T1 : 0.15 sec MAX.
2. T2 : 0.7 sec. (Time of wiper motor 1 rotation)
3. T3 :1.5 ± 0.7 sec. (at VR=0 ohm) 10.5 ± 1 sec. (at VR=500 k.Ohms)

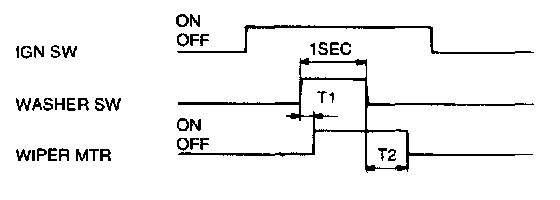

Wiper Motor Related to Washer




1. T1 : 0.15 sec.
2. T2: 2.5-3.8 sec.
3. This function should be operated preferentially even though the variable intermittent wiper is operating.
