Shifter M/T: Service and Repair

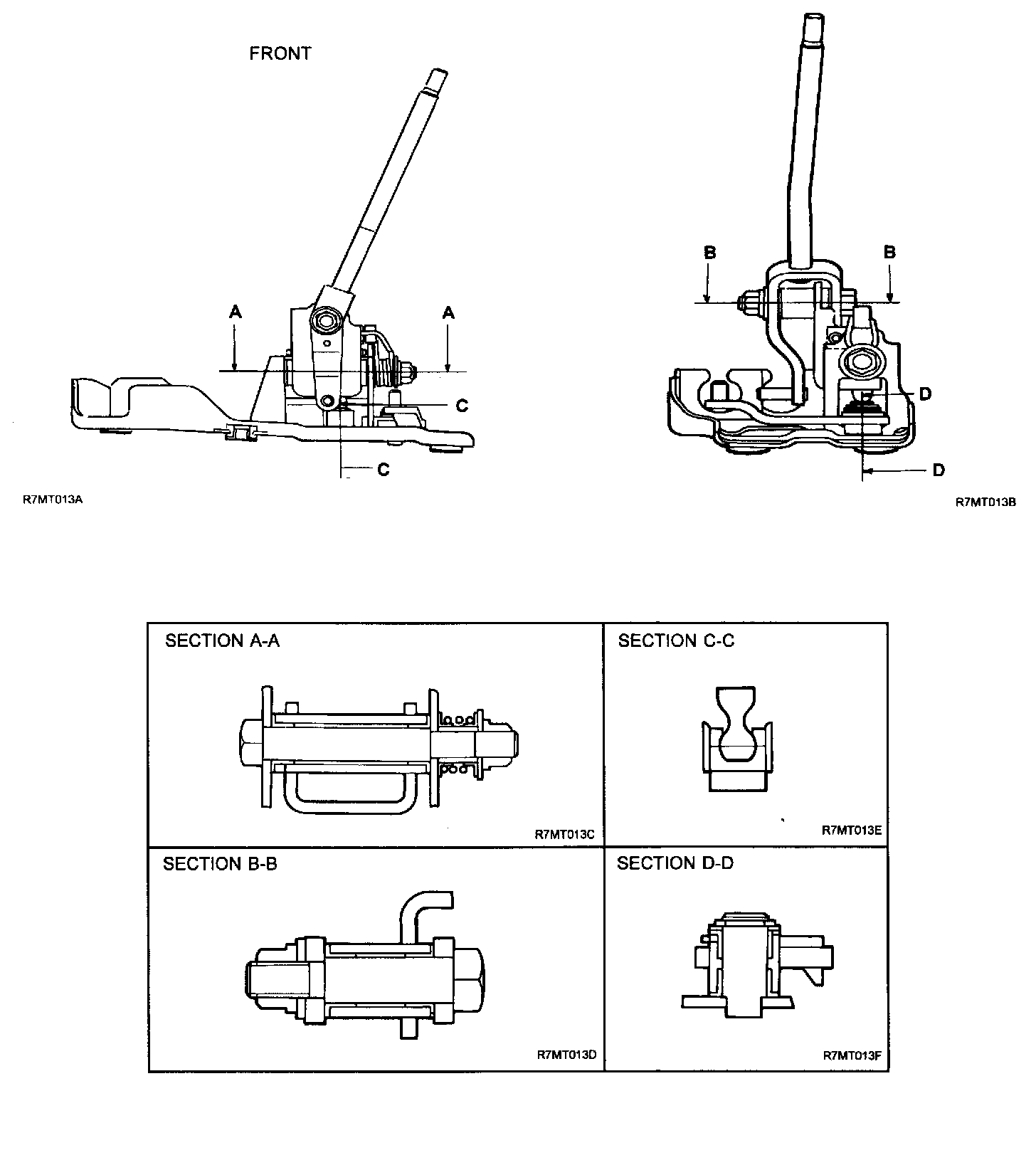

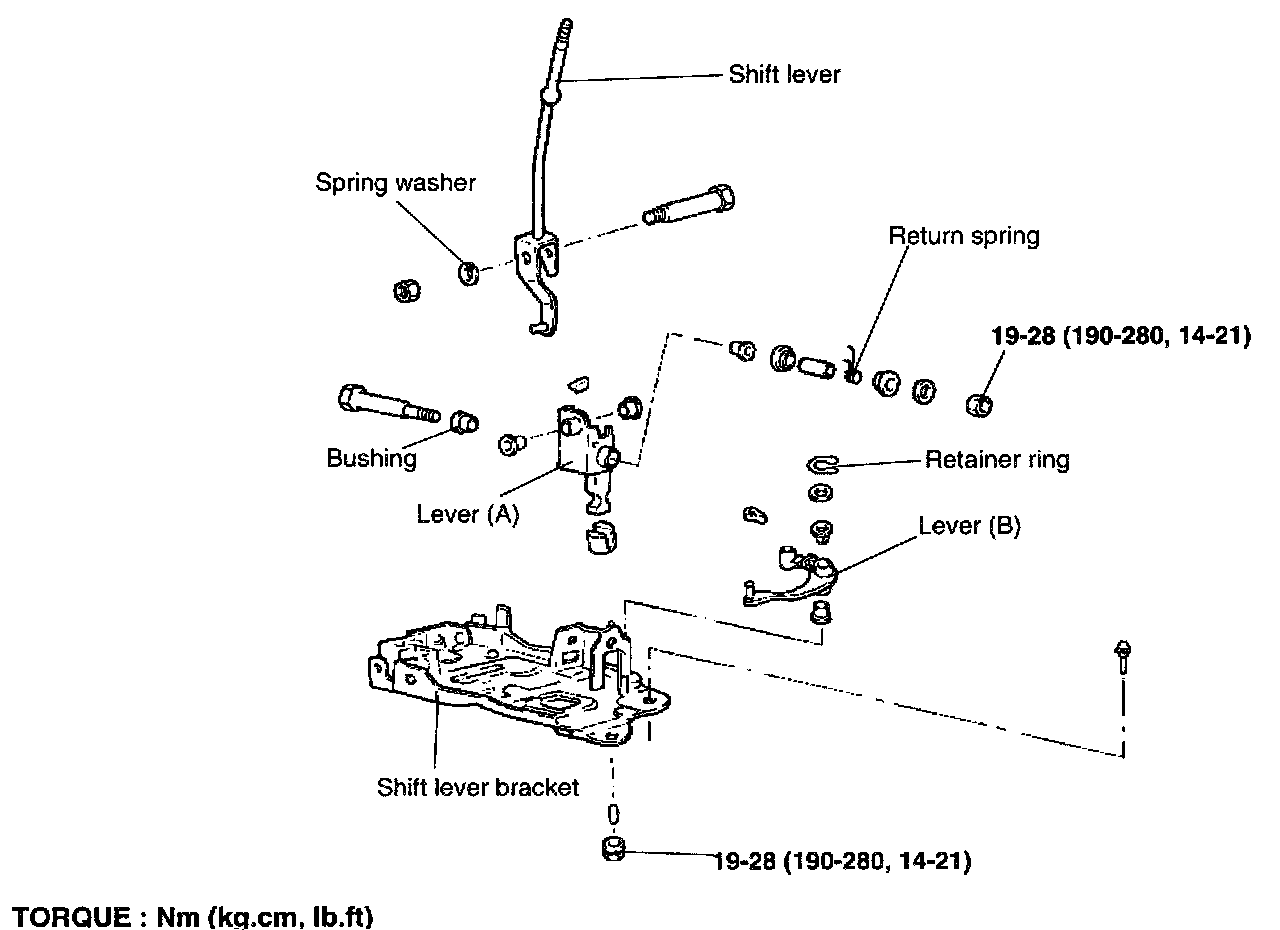

SHIFT LEVER ASSEMBLY
INSPECTION
1. Check the bushing for wear or damage.
2. Check the return spring for damage or deterioration.

ASSEMBLY





1. Apply multi-purpose grease to the sliding part of the bushings.
2. Assembly is reverse of the disassembly.
