Troubleshooting Guide

TROUBLESHOOTING
Malfunctions of the auto transaxle can lead to other problems, such as those described below:
1. Improper maintenance and/or adjustments
2. Electronic control malfunctions
3. Mechanical functions
4. Hydraulic control
5. Engine performance malfunctions etc.
In order to properly troubleshoot the source of these malfunctions, it is first essential to methodically question the owner concerning the problem. The driver should also be asked whether or not the problem has occurred more than once.

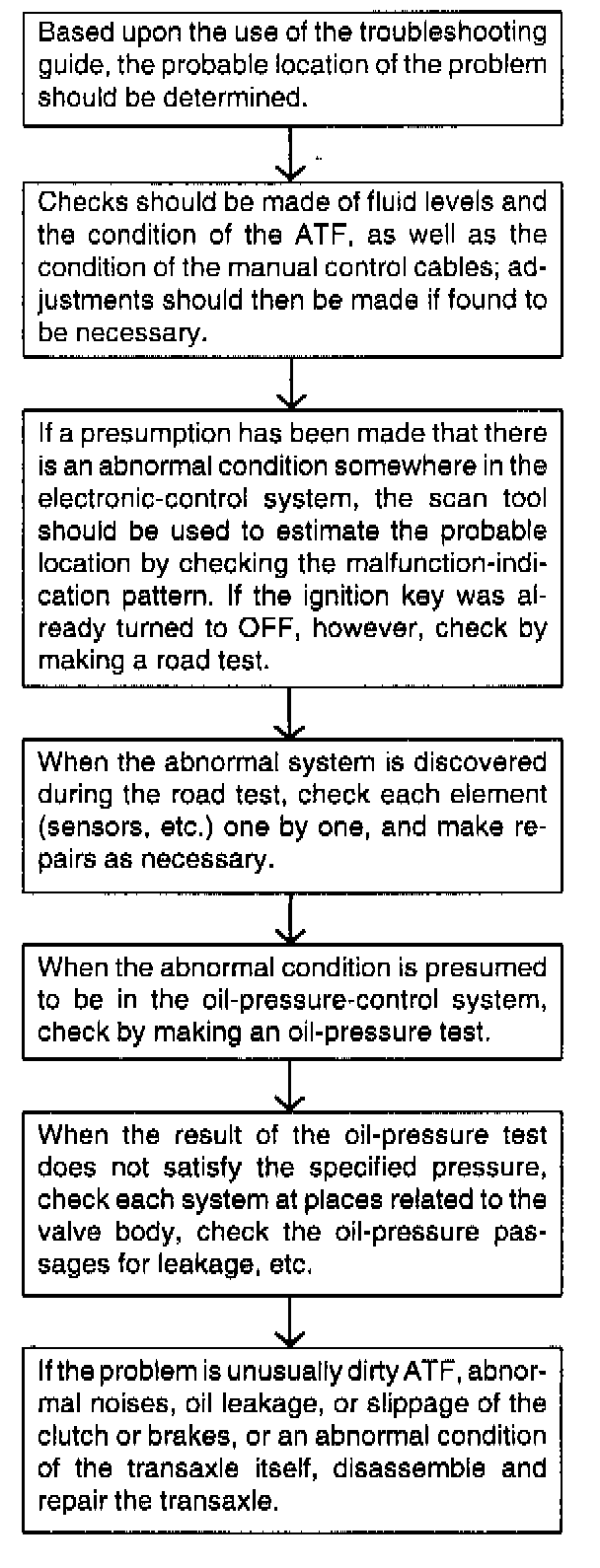

Tests should be conducted as described.

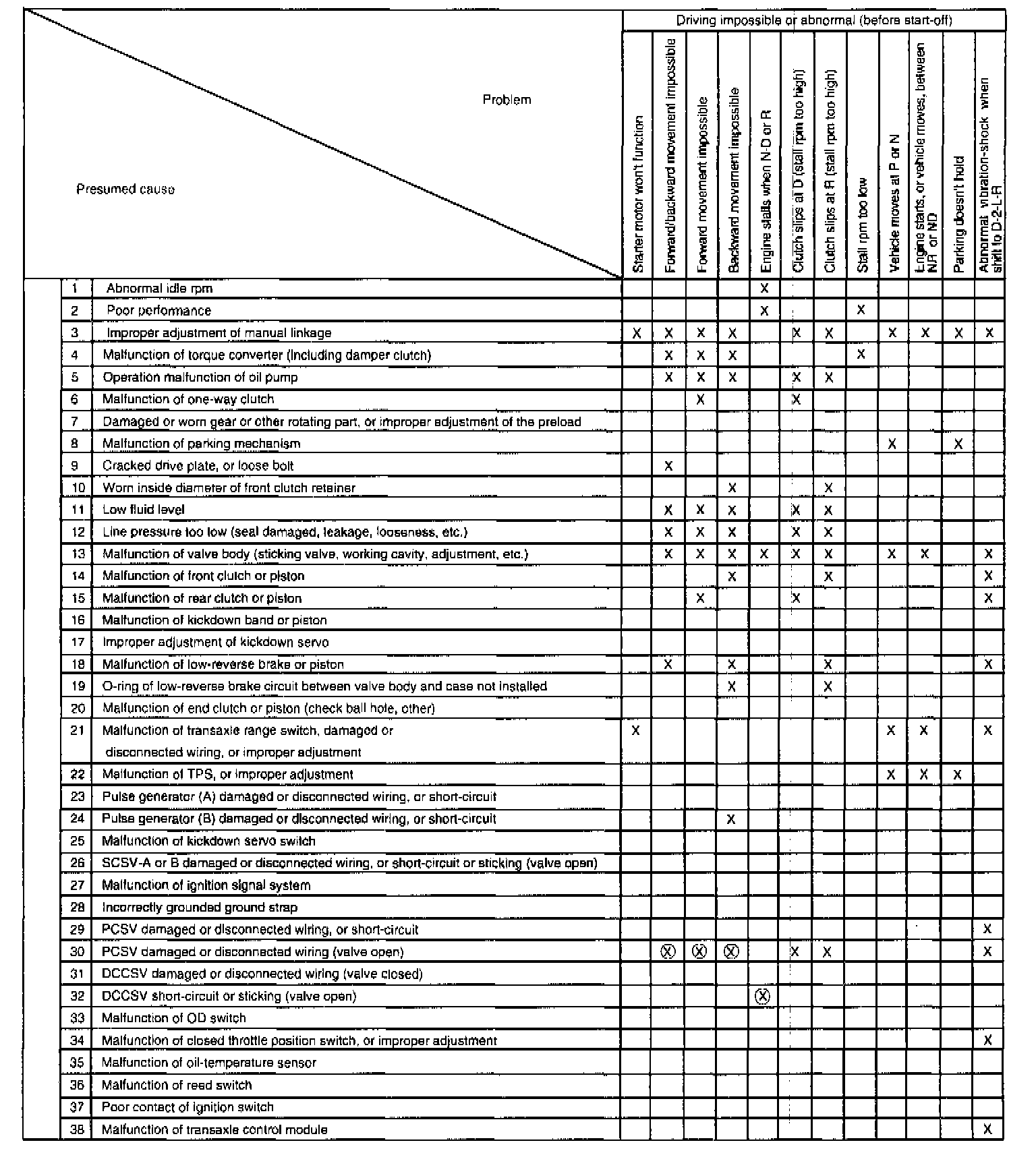

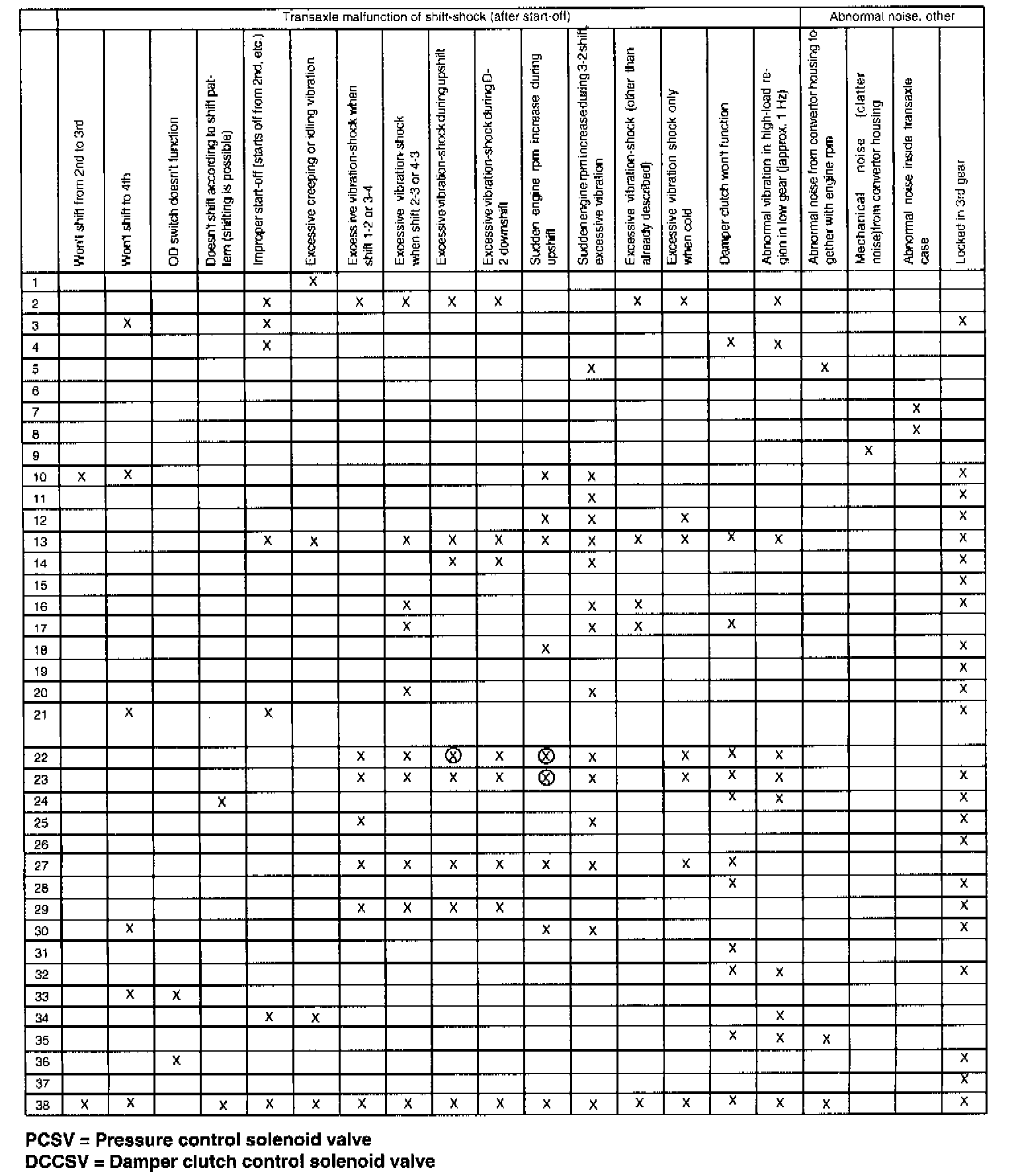

TROUBLESHOOTING GUIDE
