Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Road Test >> Procedure

Procedure

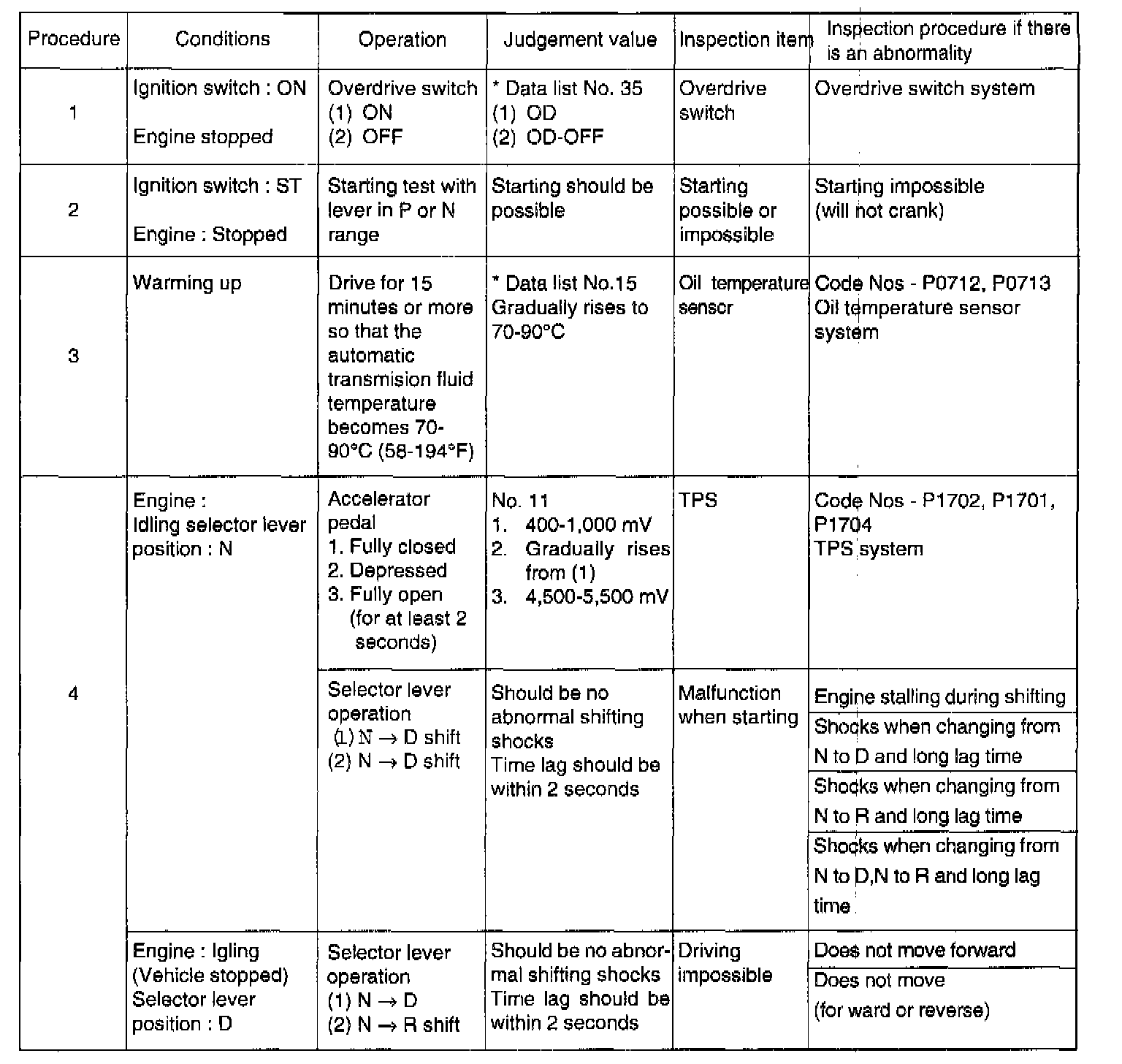

Procedures 1-4:





Procedures 5-6:

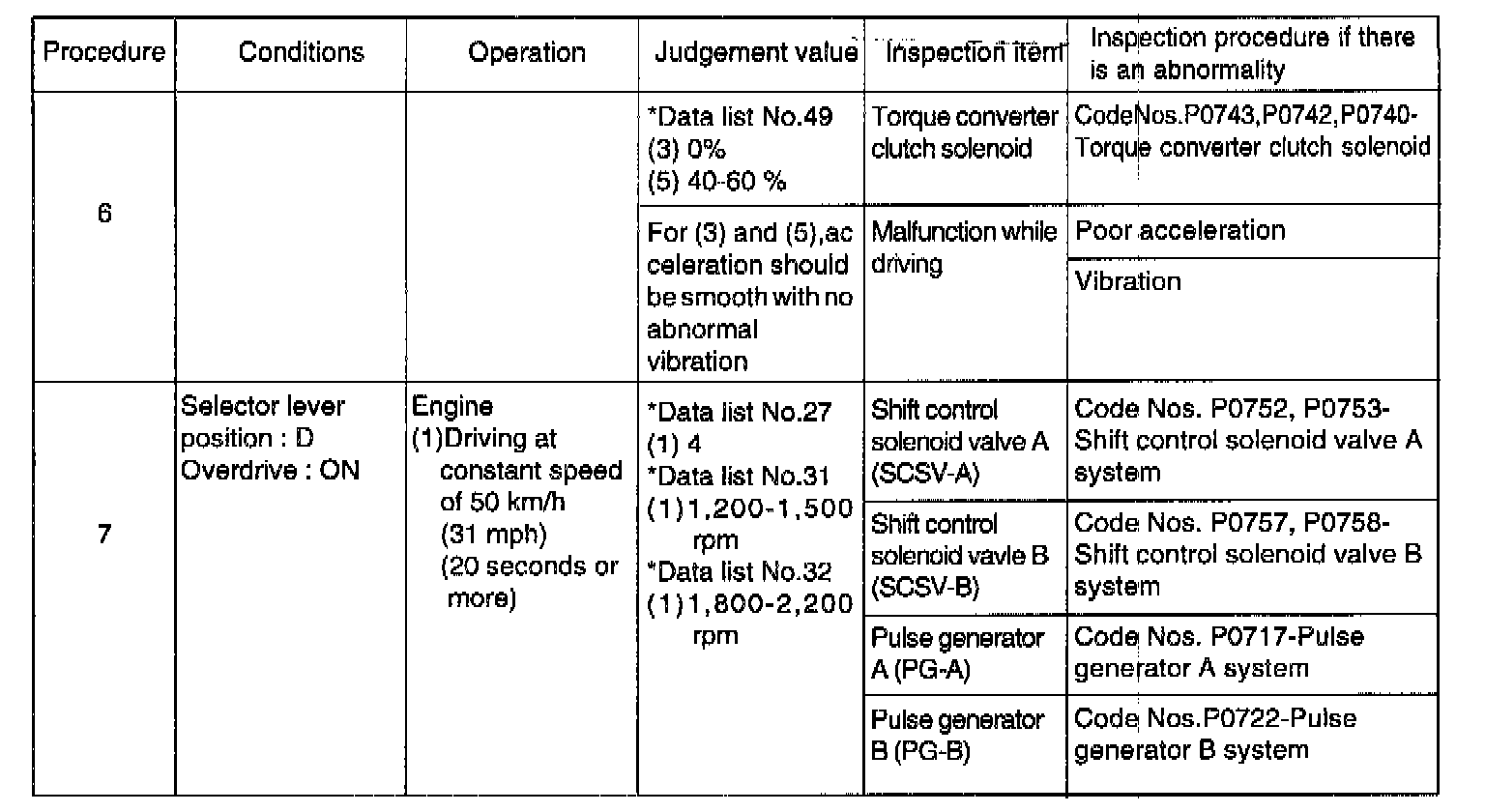

Procedures 6 (cont.) - 7:

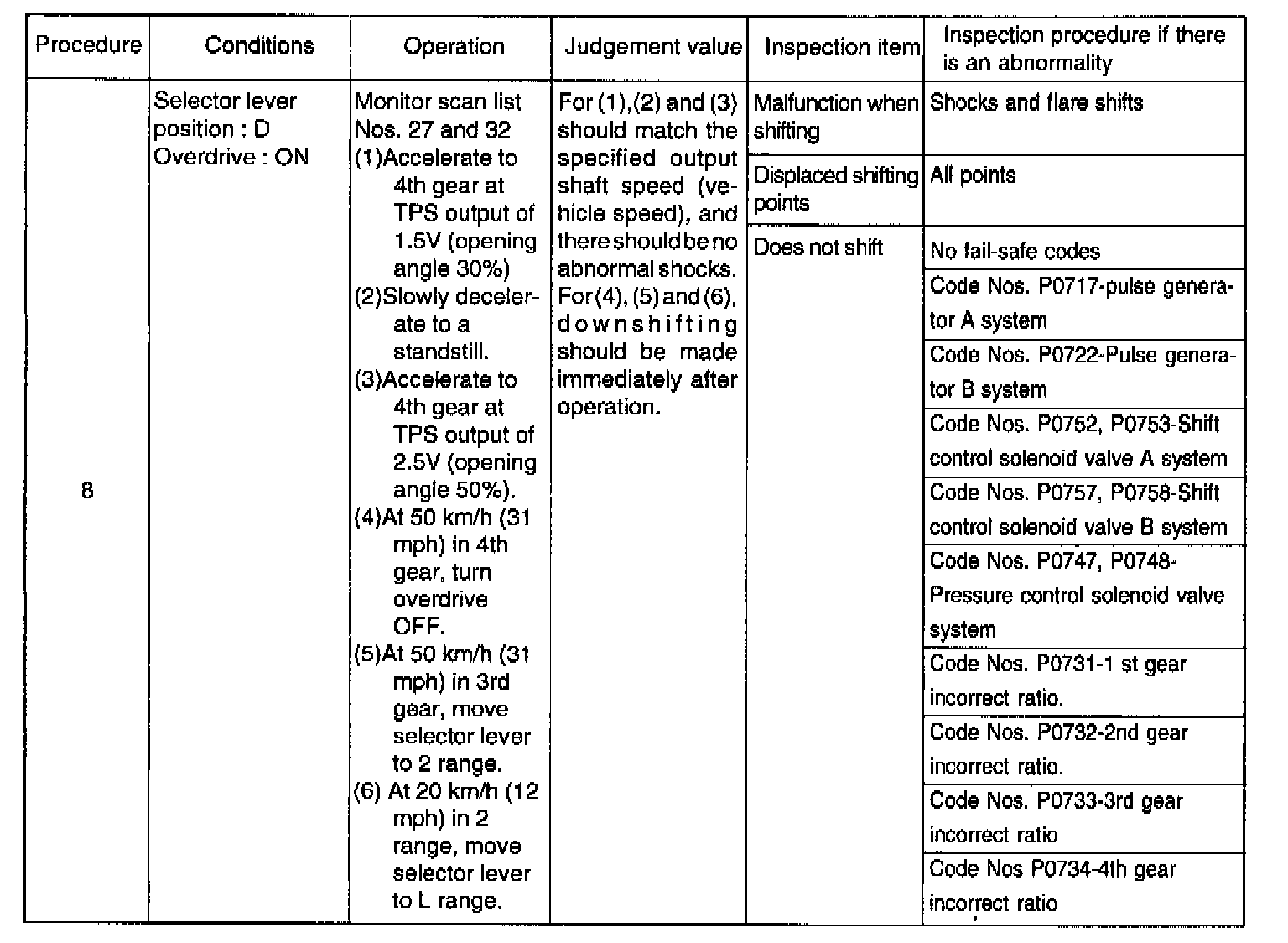

Procedure 8:





ROAD TEST
