Inspection of Electronic Control System Components
INSPECTION OF ELECTRONIC CONTROL SYSTEM COMPONENTS

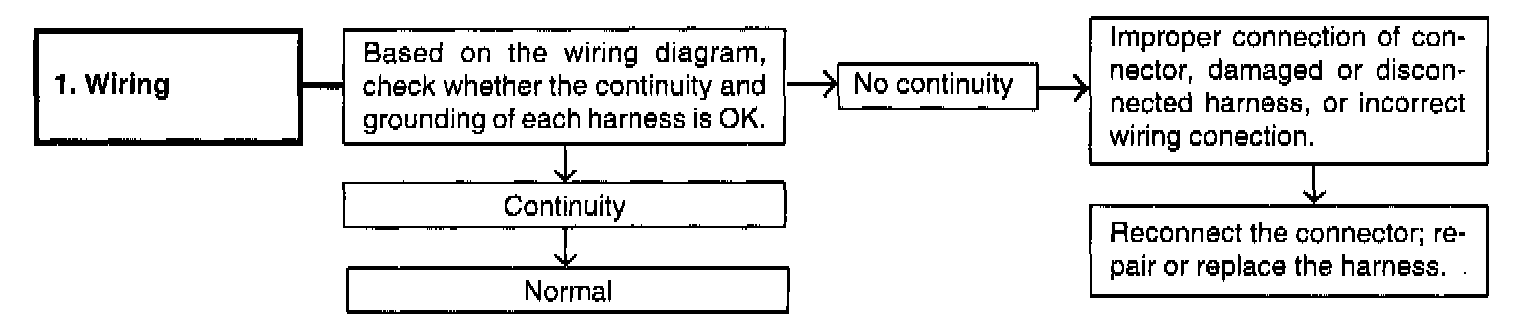

1. Wiring

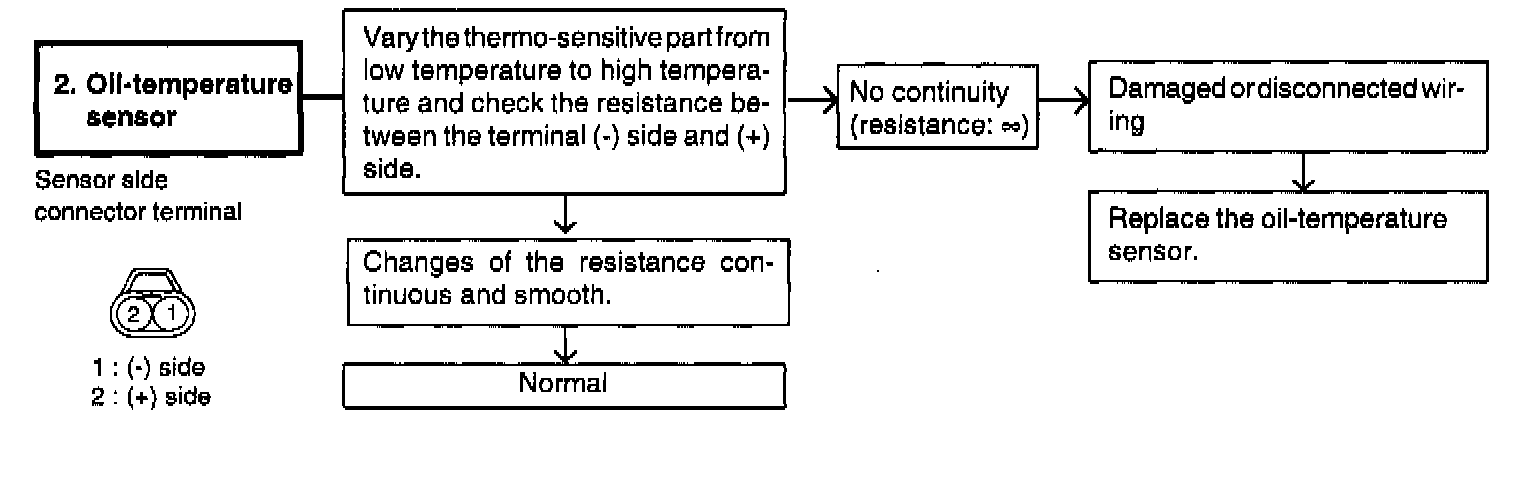

2. Oil Temperature Sensor

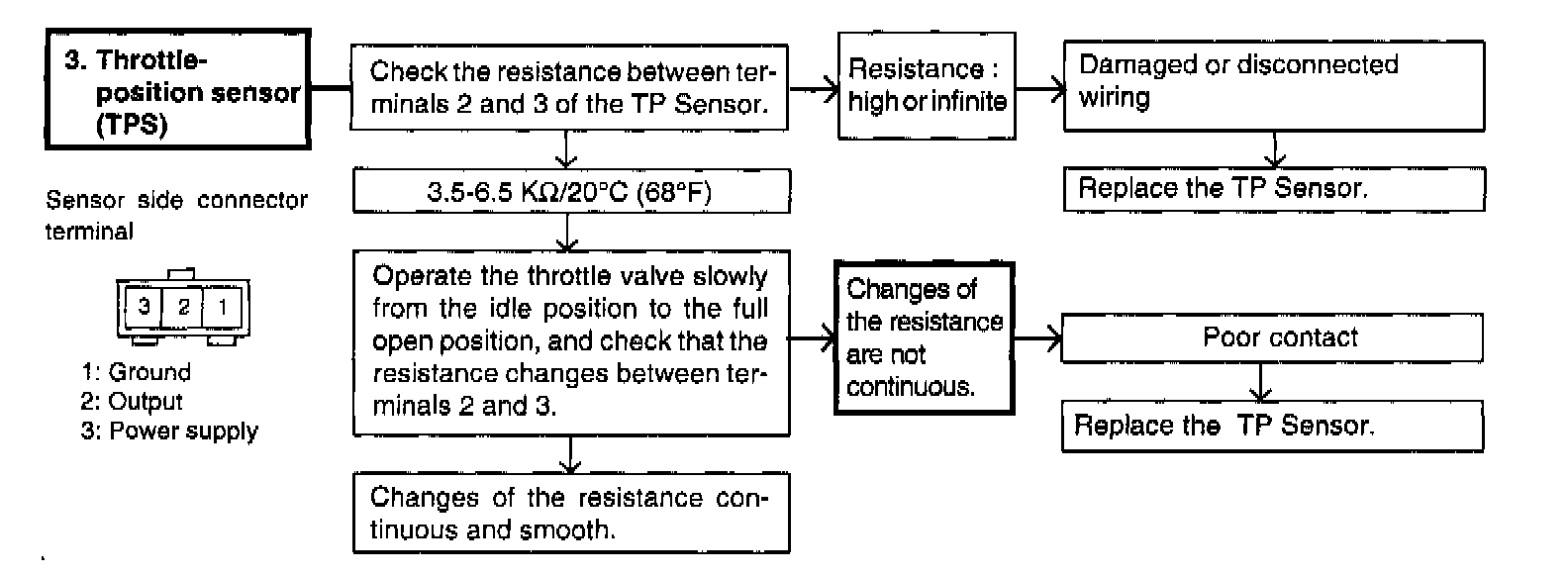

3. Throttle Position Sensor

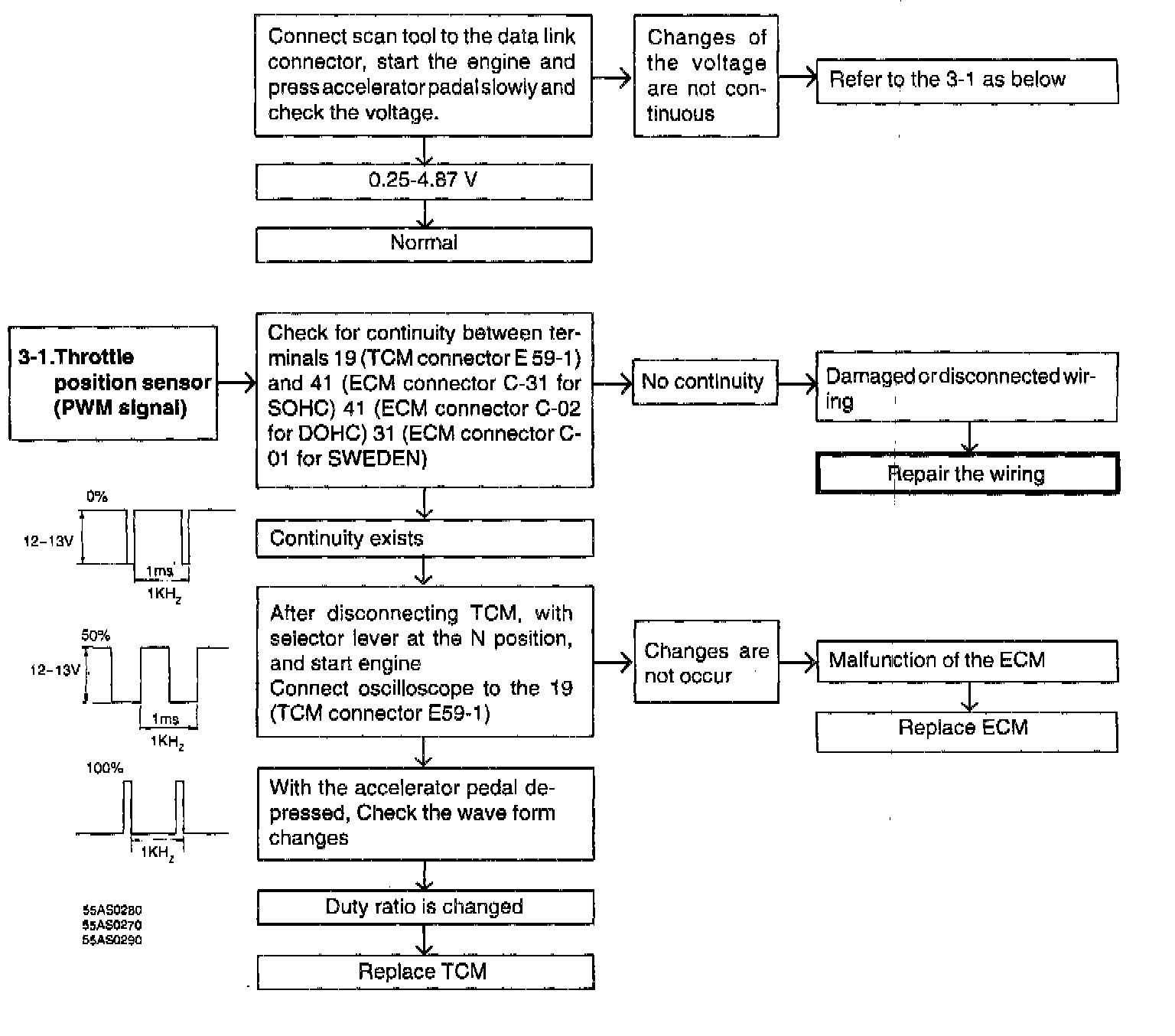

3-1. Throttle Position Sensor (PWM Signal)

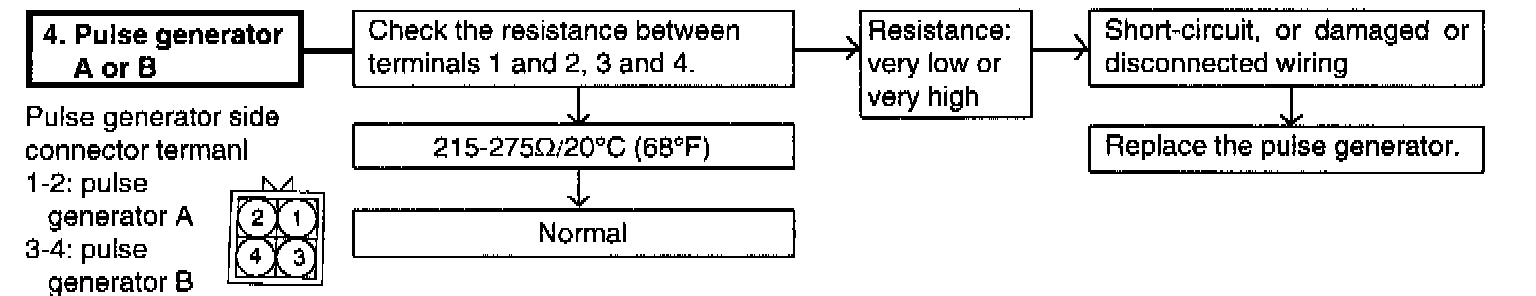

4. Pulse Generator A or B

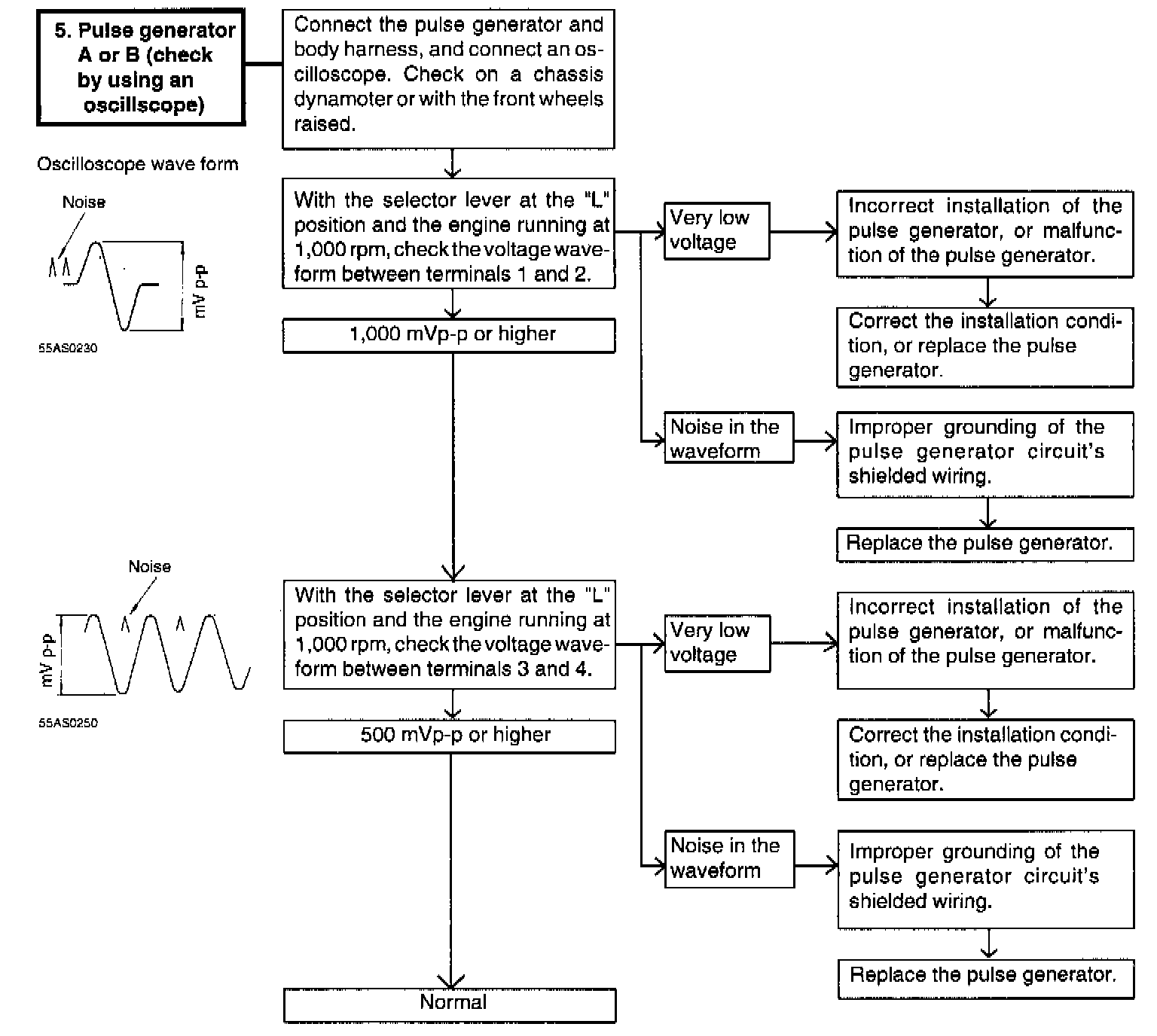

5. Pulse Generator A or B (Check w/Oscilloscope)

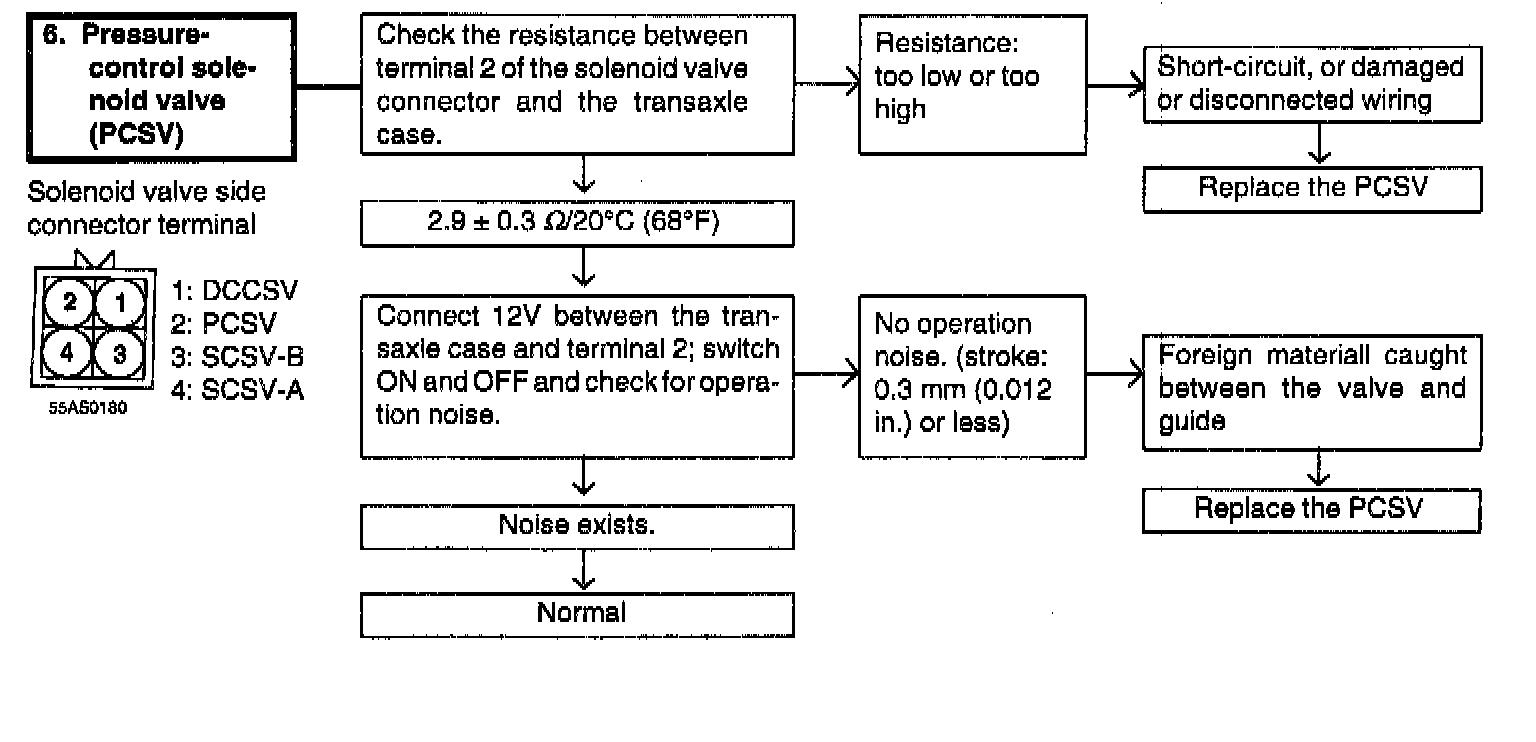

6. Pressure Control Solenoid Valve (PCSV)

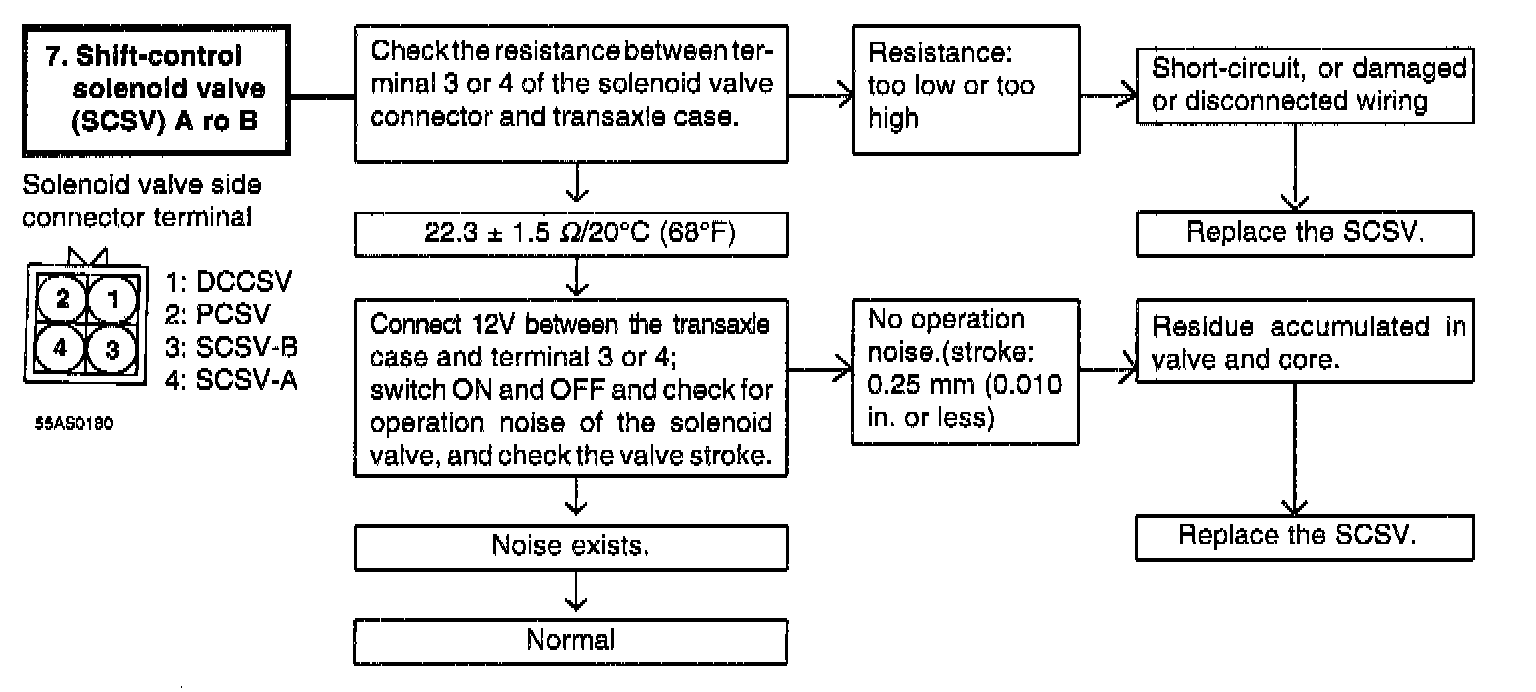

7. Shift-Control Solenoid Valve (SCSV) A or B

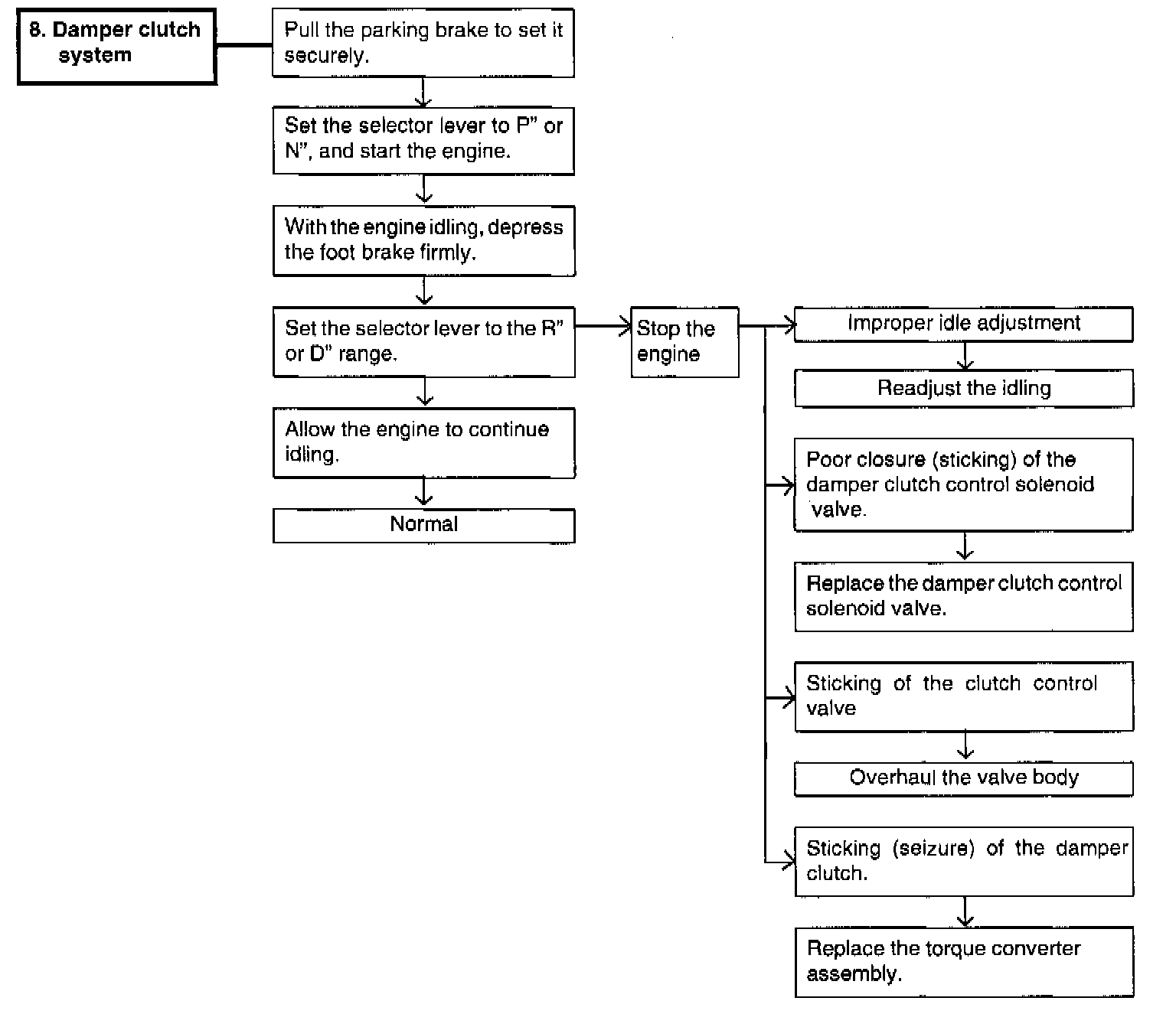

8. Damper Clutch System

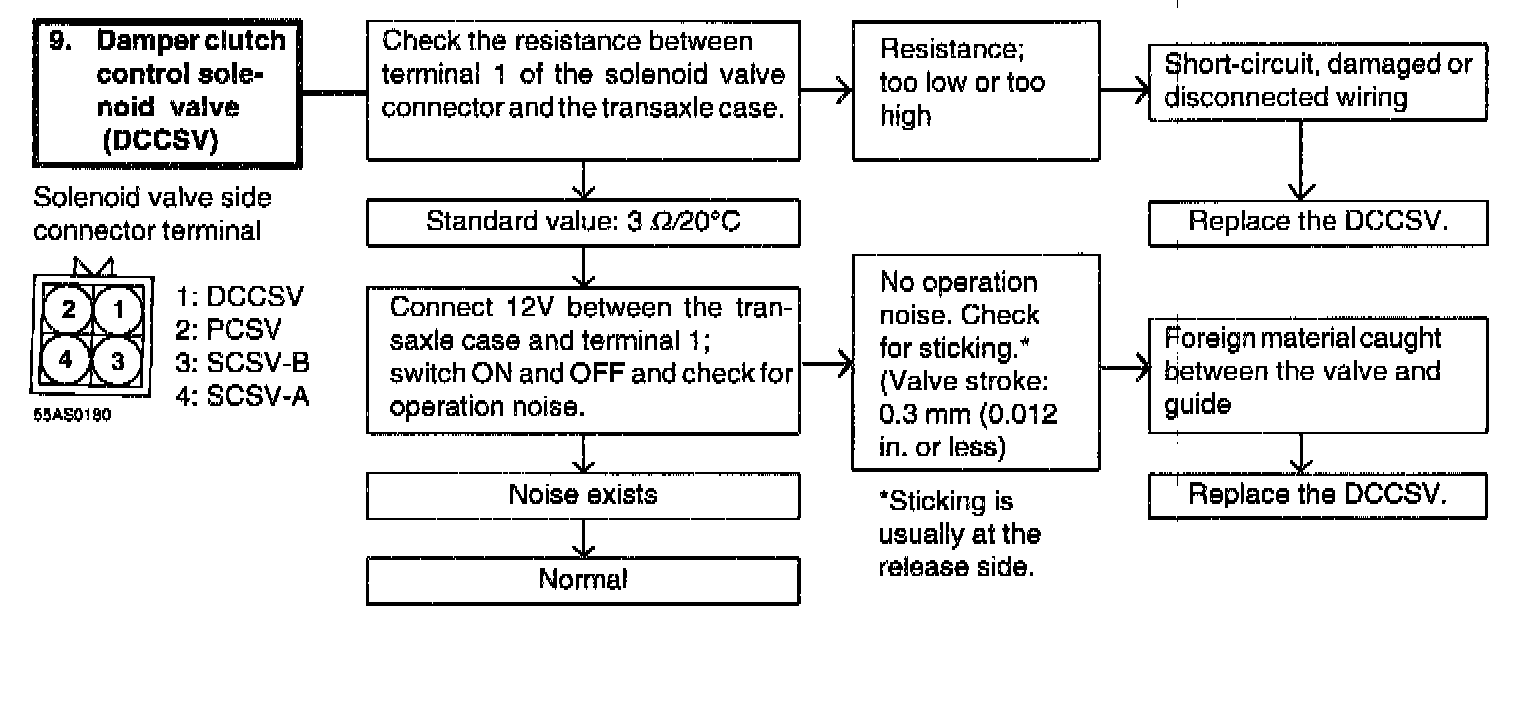

9. Damper Clutch Control Solenoid Valve (DCCSV)

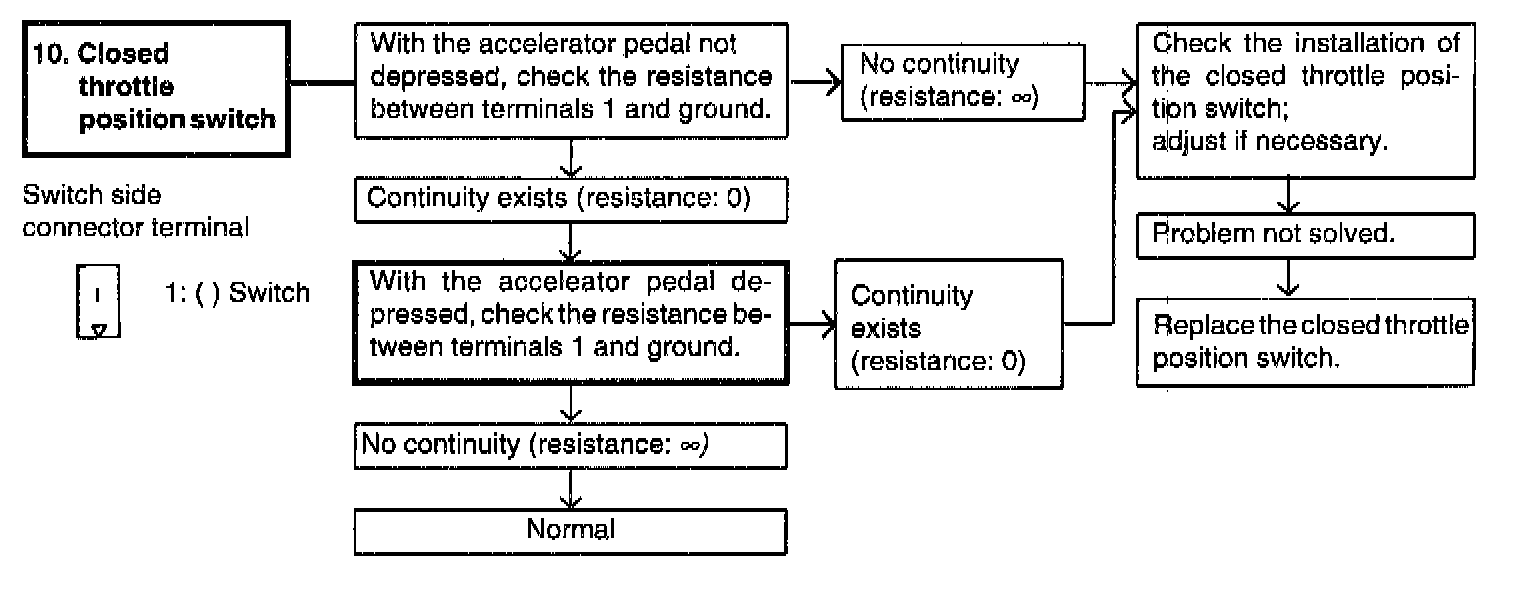

10. Closed Throttle Position Switch

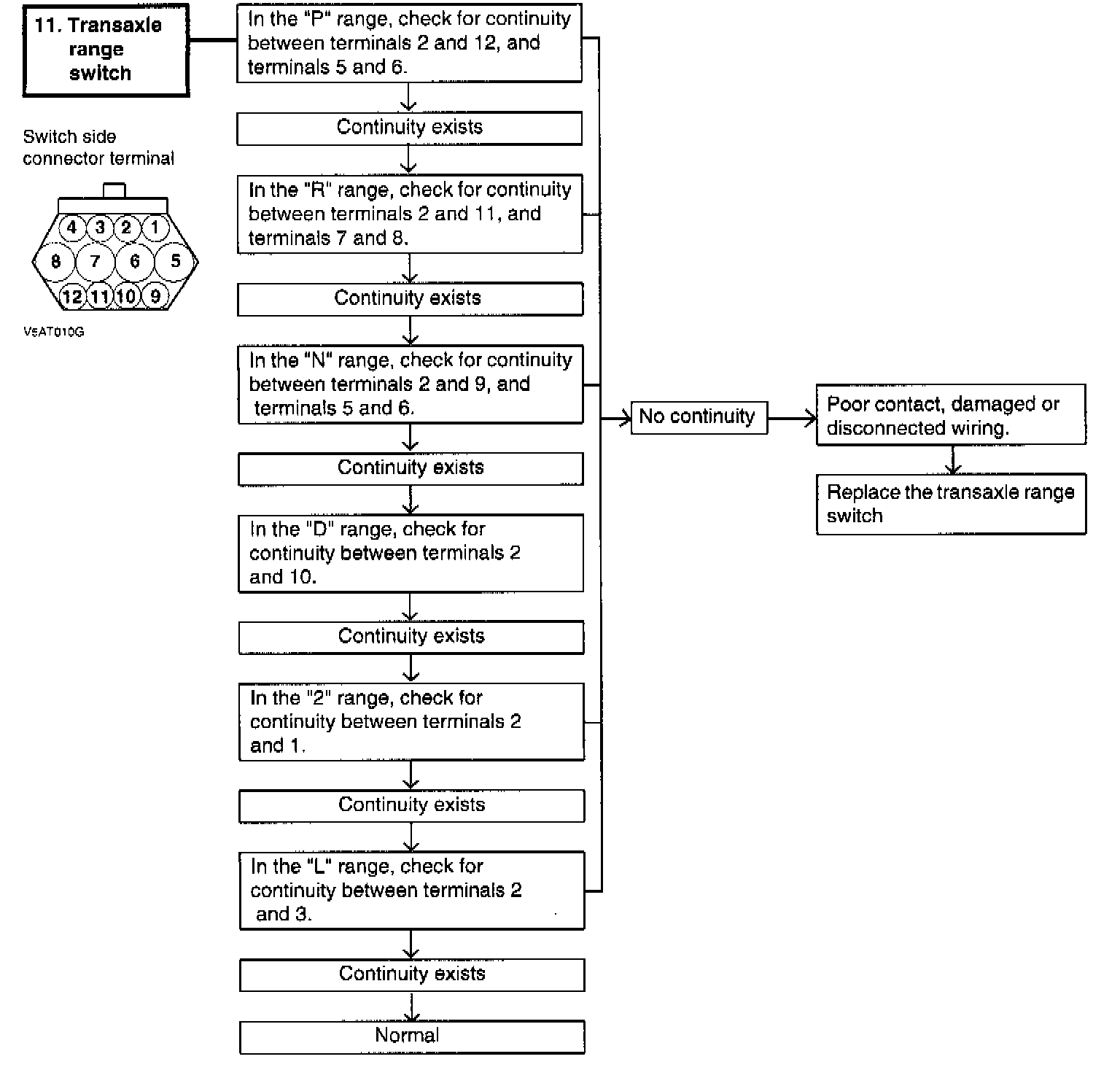

11. Transaxle Range Switch

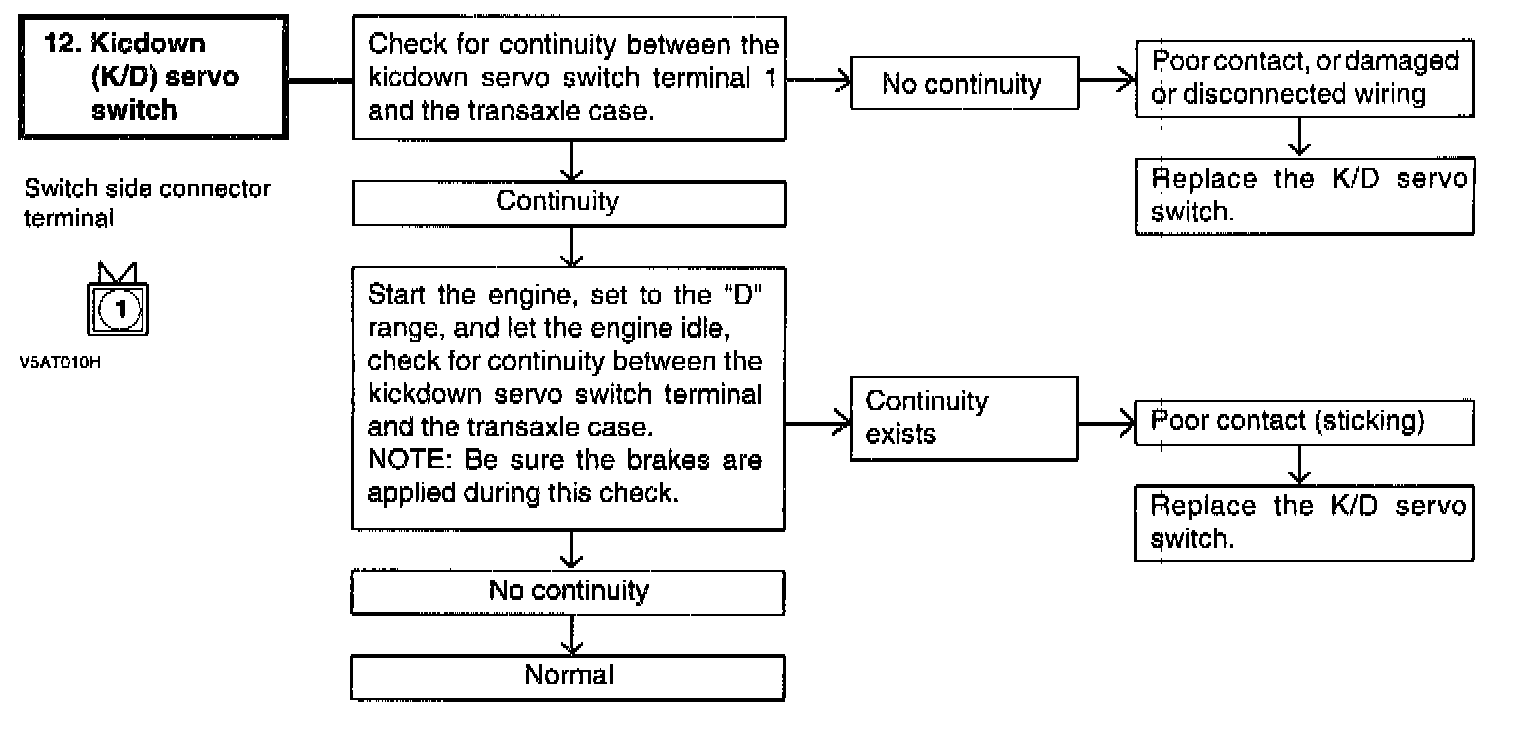

12. Kickdown Servo Switch

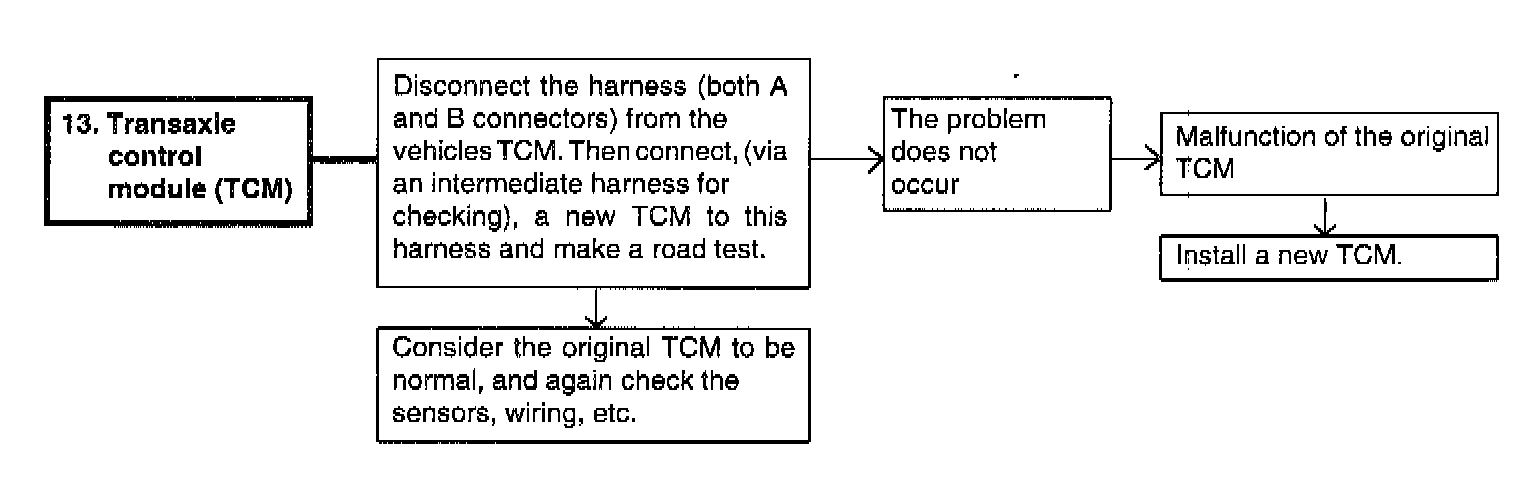

13. Transaxle Control Module (TCM)
