A/T - Remanufactured A/T Program: Overview

Group: TRANSAXLE

Number: 01-40-004

Date: FEBRUARY, 2001

Model: ALL

Subject:
REMANUFACTURED AUTOMATIC TRANSAXLE (ATM) PROGRAM

THIS TSB HAS BEEN REVISED TO CHANGE THE ALLOWABLE REPAIRS.

DESCRIPTION:
The automatic transaxle warranty repair policy has been revised to authorize in-dealership repairs of the following components for both OEM and remanufactured automatic transaxles:





NOTE:
Do not replace the automatic transaxle to service the condition and components listed. Instead, repair/replace the components according to the related shop manual or TSB.

If an internal ATM mechanical condition is diagnosed, remove and replace the ATM with a remanufactured unit. No internal disassembly of the ATM should be performed. ATM internal overhauls require DPSM prior approval/authorization.

NOTE:
Second and subsequent remanufactured ATM replacements on the same VIN will require Tech Line (800/325-6604) approval/authorization prior to repair and DPSM approval/authorization for claim payment.

TRAINING:
The Automatic Transaxle Troubleshooting and Certification Course (# 451300) provides detailed instructions on how to properly diagnose and when to repair or replace an ATM. DPSM approval is necessary when installing remanufactured transaxles it your dealership does not currently employ a technician who has attended this course.

AFFECTED MODELS:
This program applies to all models except 1986 Excels.

SPECIAL SERVICE TOOLS:
Your dealership must have on hand the following Special Service Tools/supplies:

^ Hyundai Transmission Cooler Flush (aerosol), P/N 00235-18100

^ Hyundai Automatic Transaxle Testers: A/T Tester (Kent-Moore # J39853) and ATM Tester II (Kent-Moore # 09450-AT000)

^ HDS and HDS Trans-Tech Module (DDC-Trans Module)

^ Hi-Scan Pro (Kent-Moore # J44410) and HDS Scan Tool (Kent-Moore # J41490)

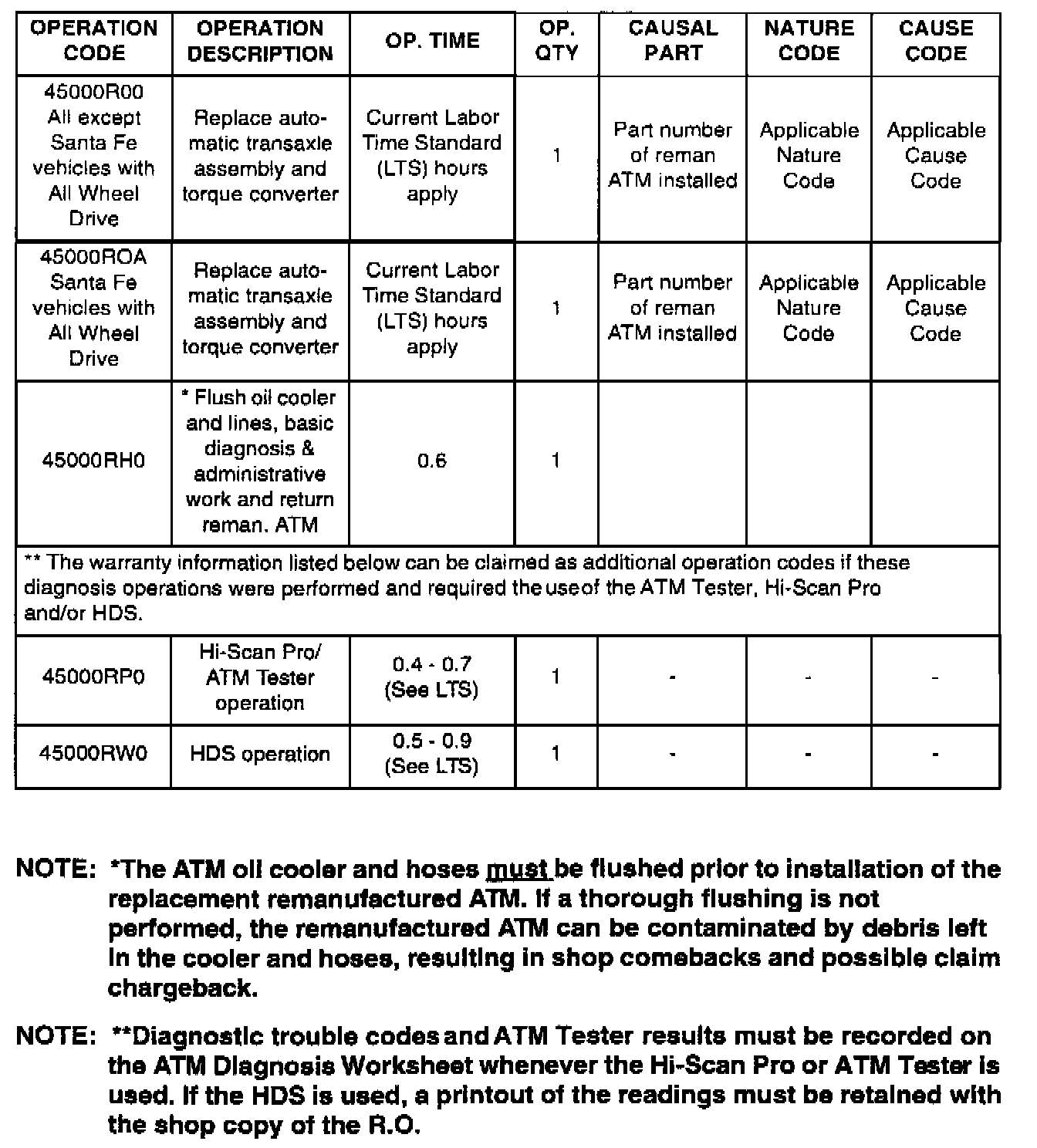

WARRANTY INFORMATION:
