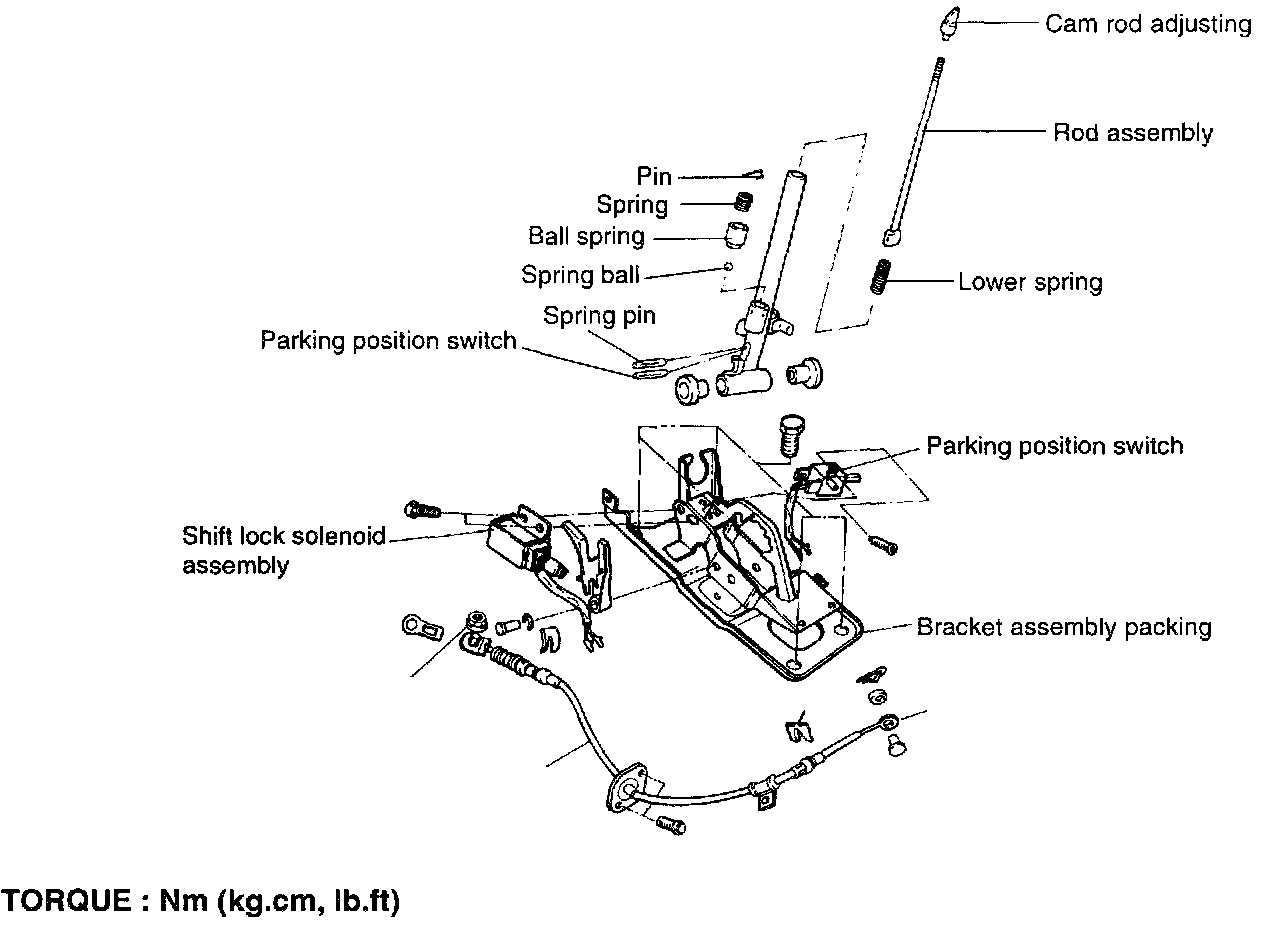

Shift Lever Assembly

SHIFT LEVER ASSEMBLY
INSPECTION
- Check the detent place for wear.
- Check the bushing for wear or damage.
- Check the spring for damage or deterioration.
- Check the pin at the end of rod assembly for wear.

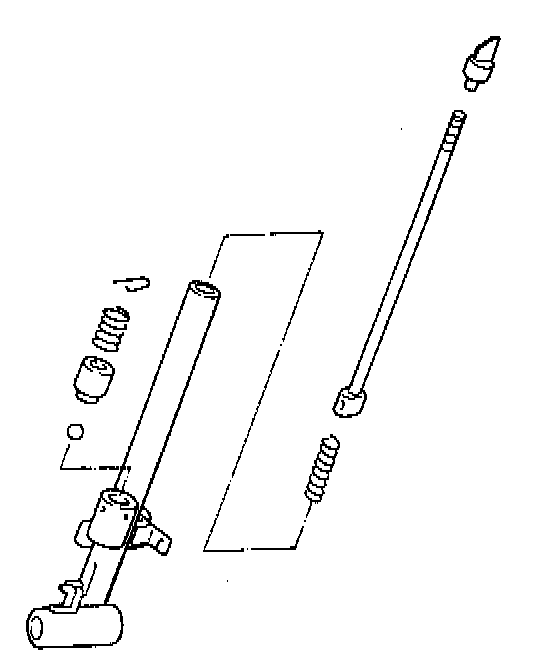

ASSEMBLY





1. Apply a coating of grease to the sliding part of the bushing.
Specified grease: Chassis grease SAE J310, NLGI No.2

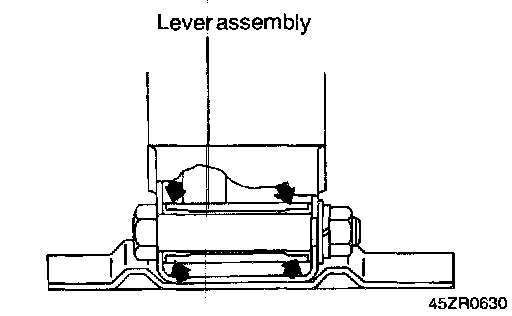

2. Apply the specified grease at the places shown in the figure.
Specified grease: Multipurpose grease SAE J310, NLGI No.2
