Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Component Locations >> Transaxle Control Components

Transaxle Control Components

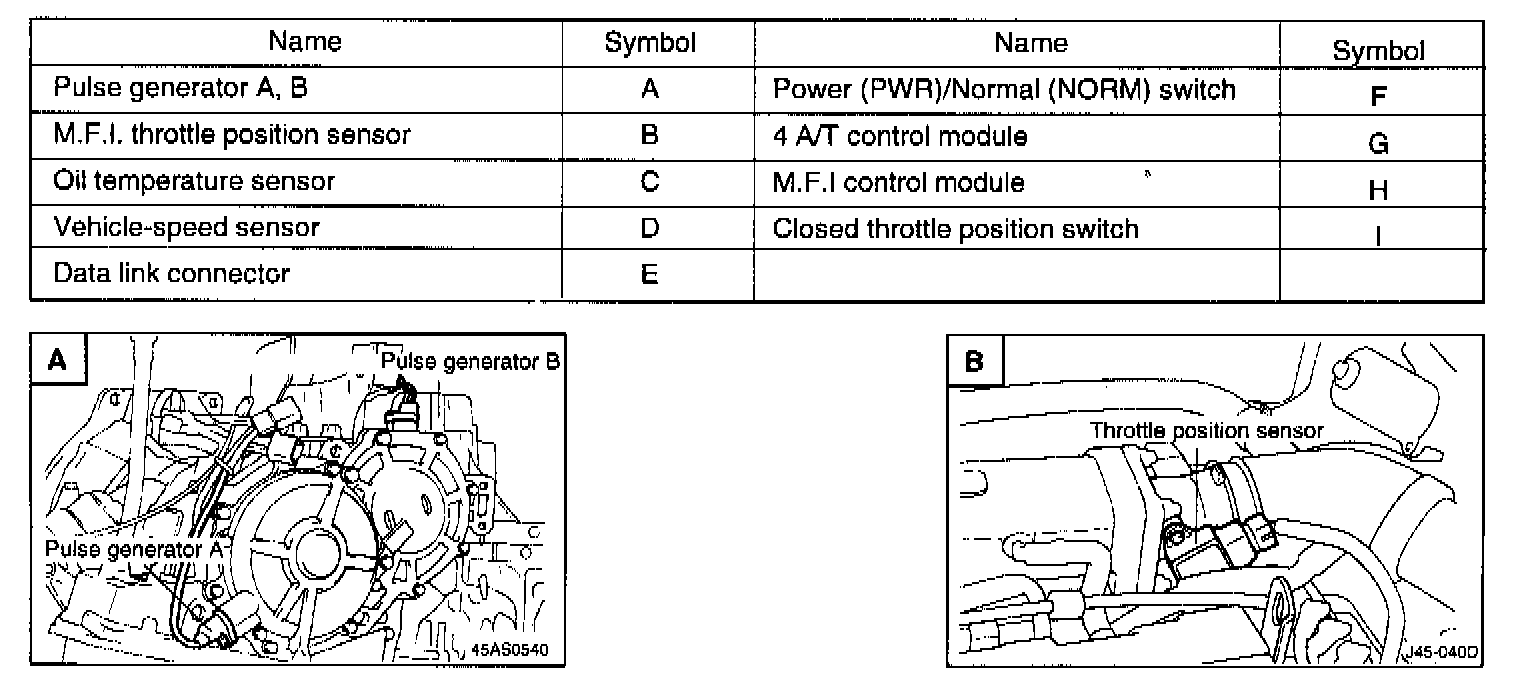

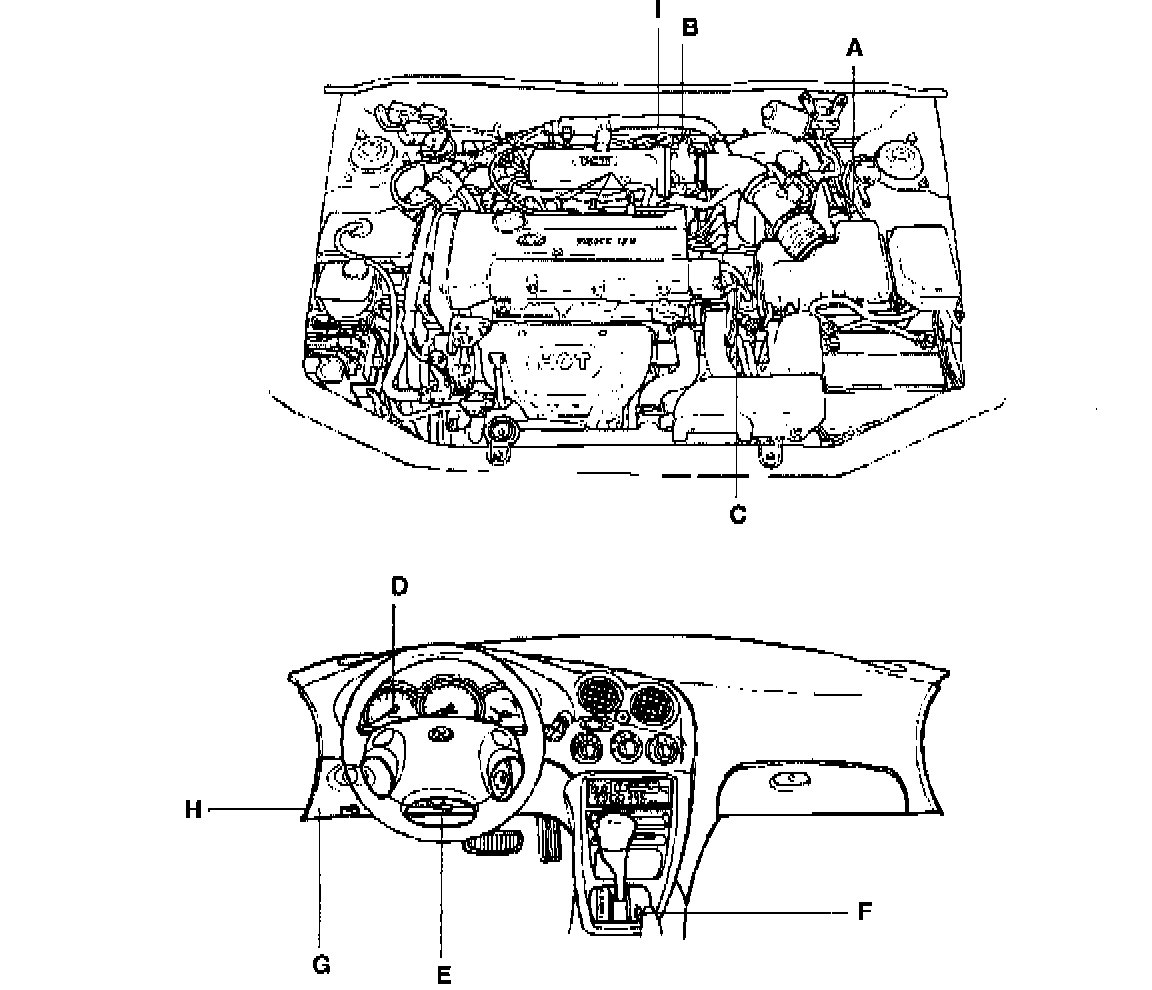

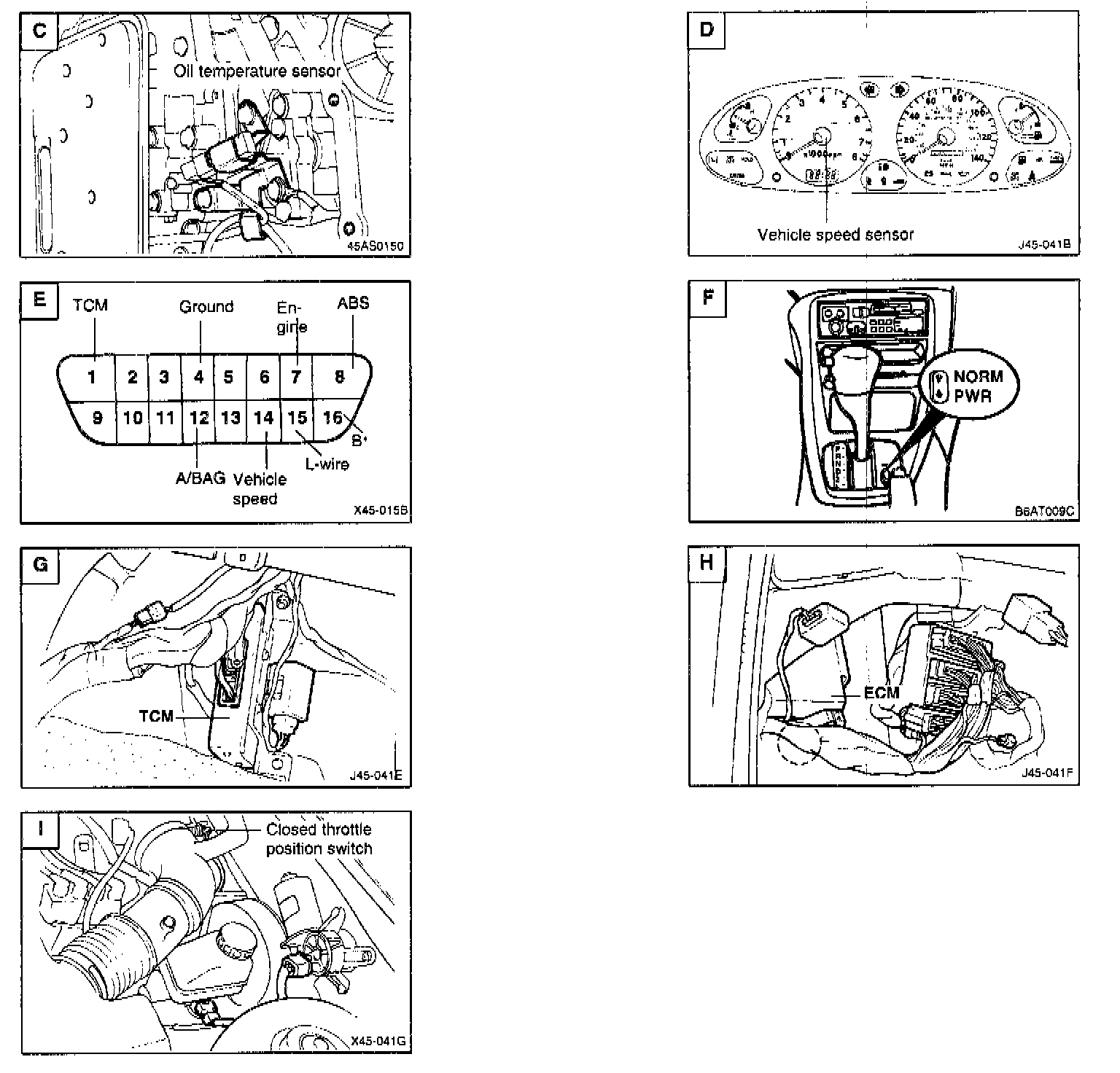

E.L.C. 4-SPEED AUTOMATIC TRANSAXLE CONTROL COMPONENTS
