Acceleration Sensor: Testing and Inspection

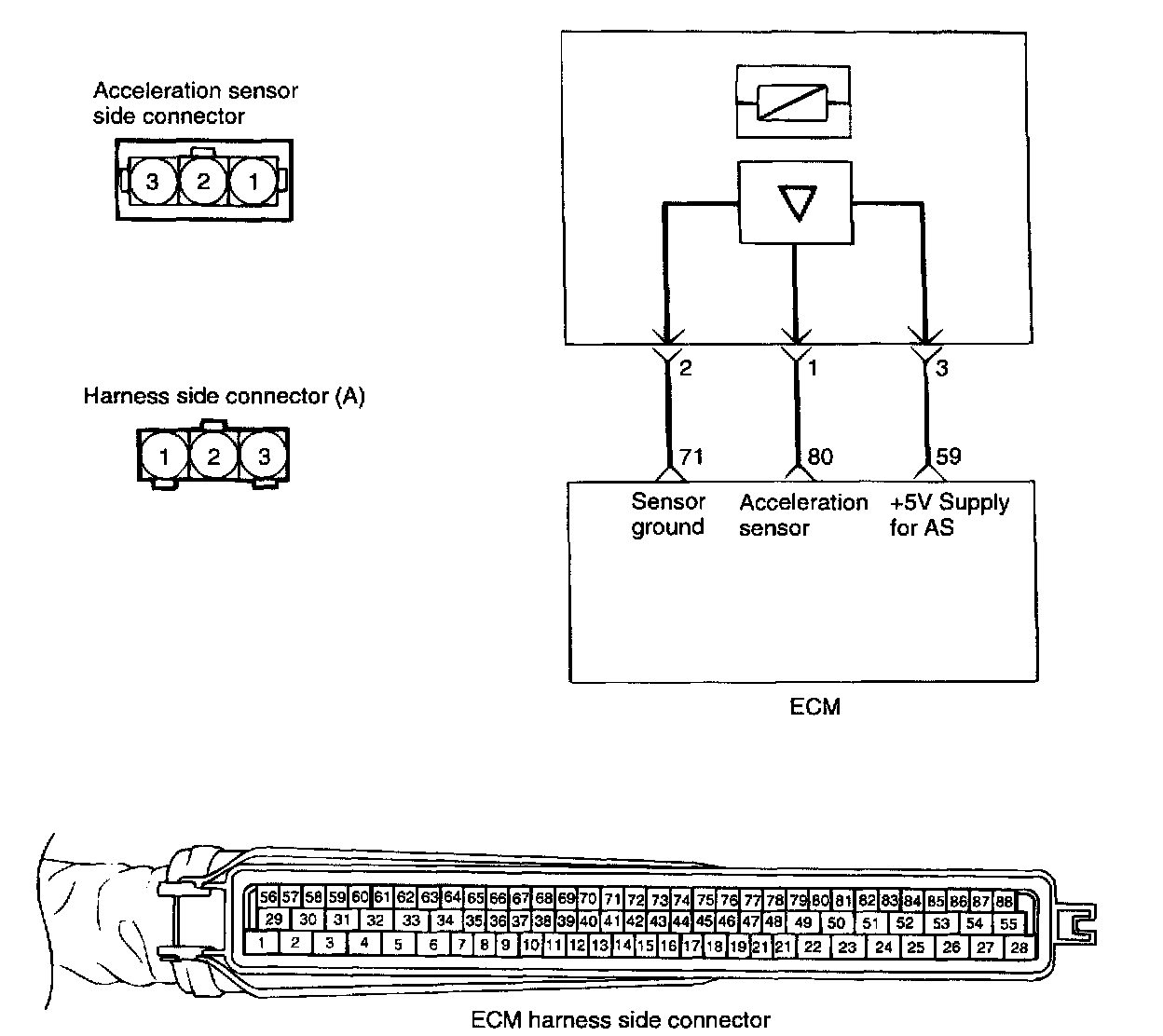

CIRCUIT DIAGRAM

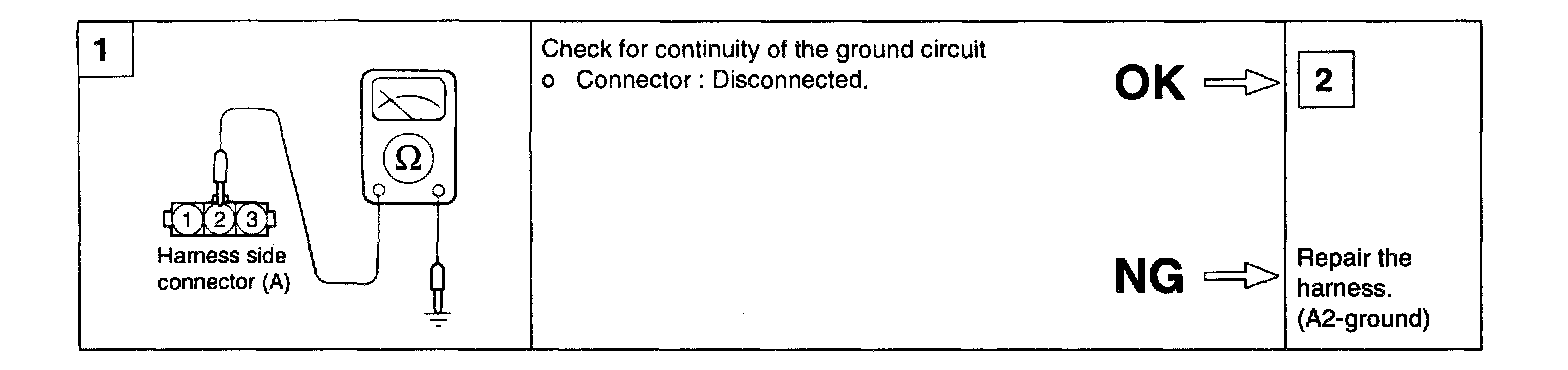

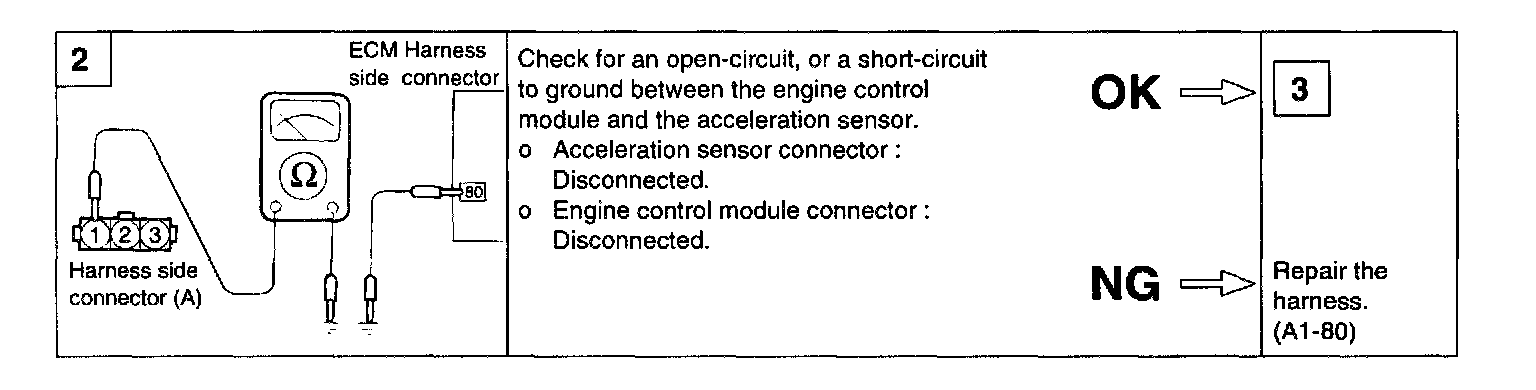

HARNESS INSPECTION PROCEDURES

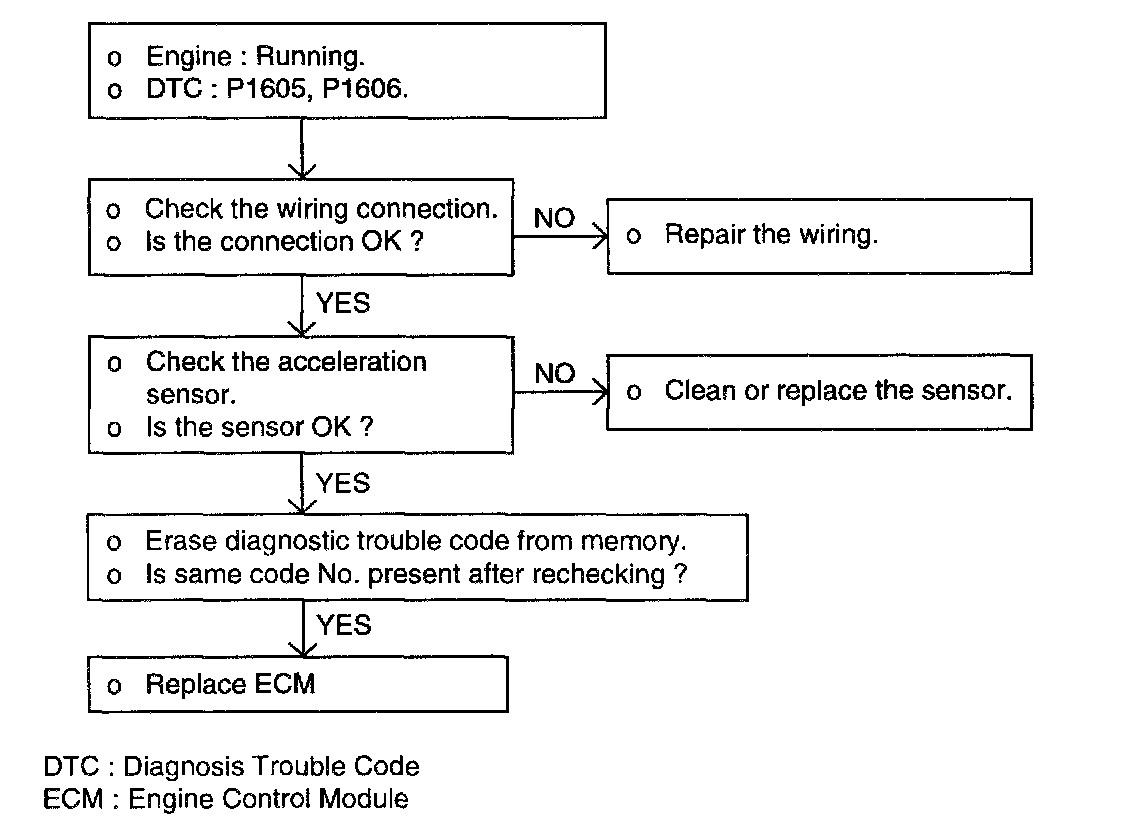

TROUBLESHOOTING PROCEDURES

TROUBLESHOOTING HINTS
When abnormal output voltage occurs at stop position of vehicle or acceleration sensor is operated beyond normal operating zone.

Part 3 Of 3:

USING VOLTMETER
