Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Locations

Steering Column: Locations

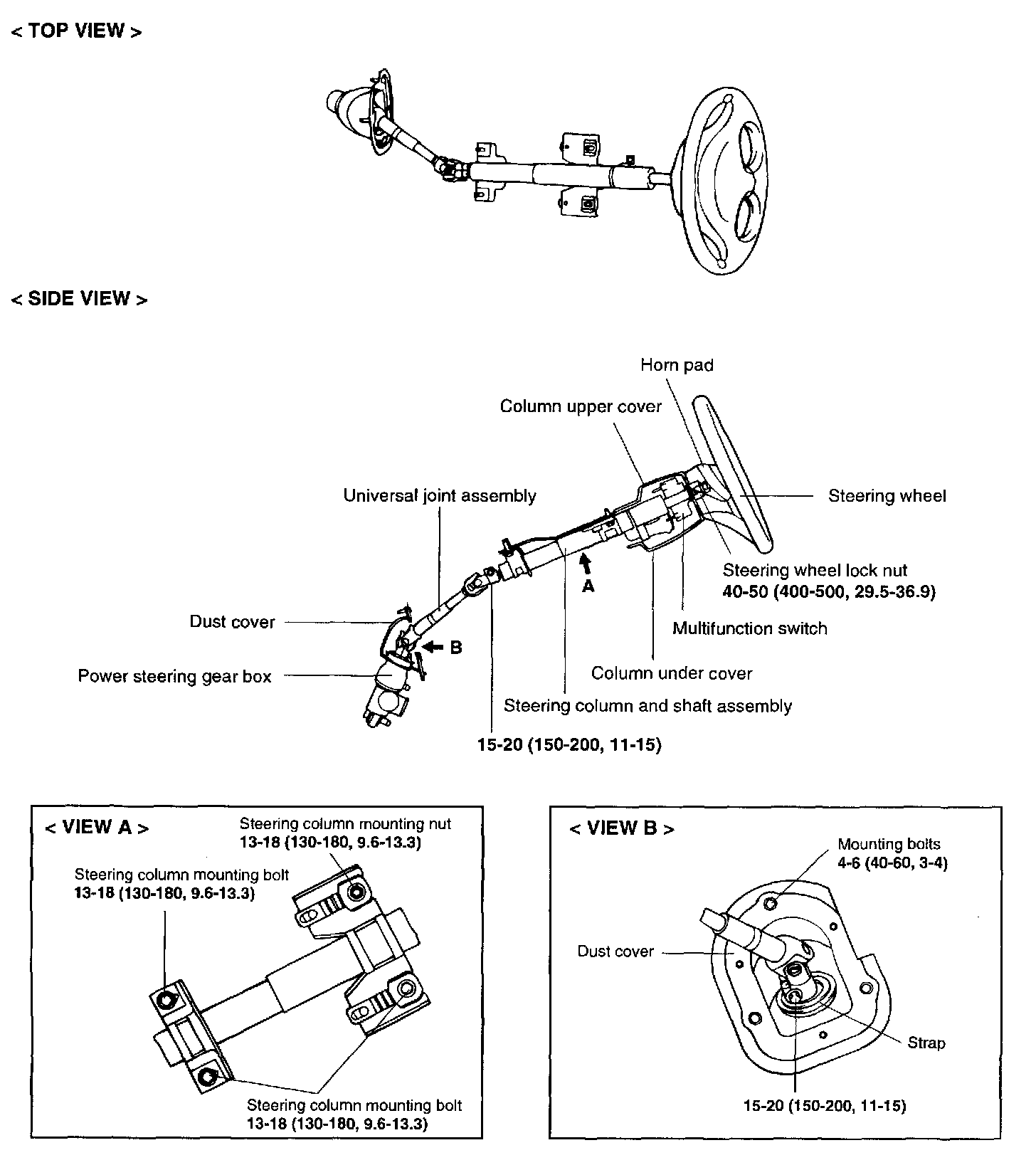

NON-TILT TYPE

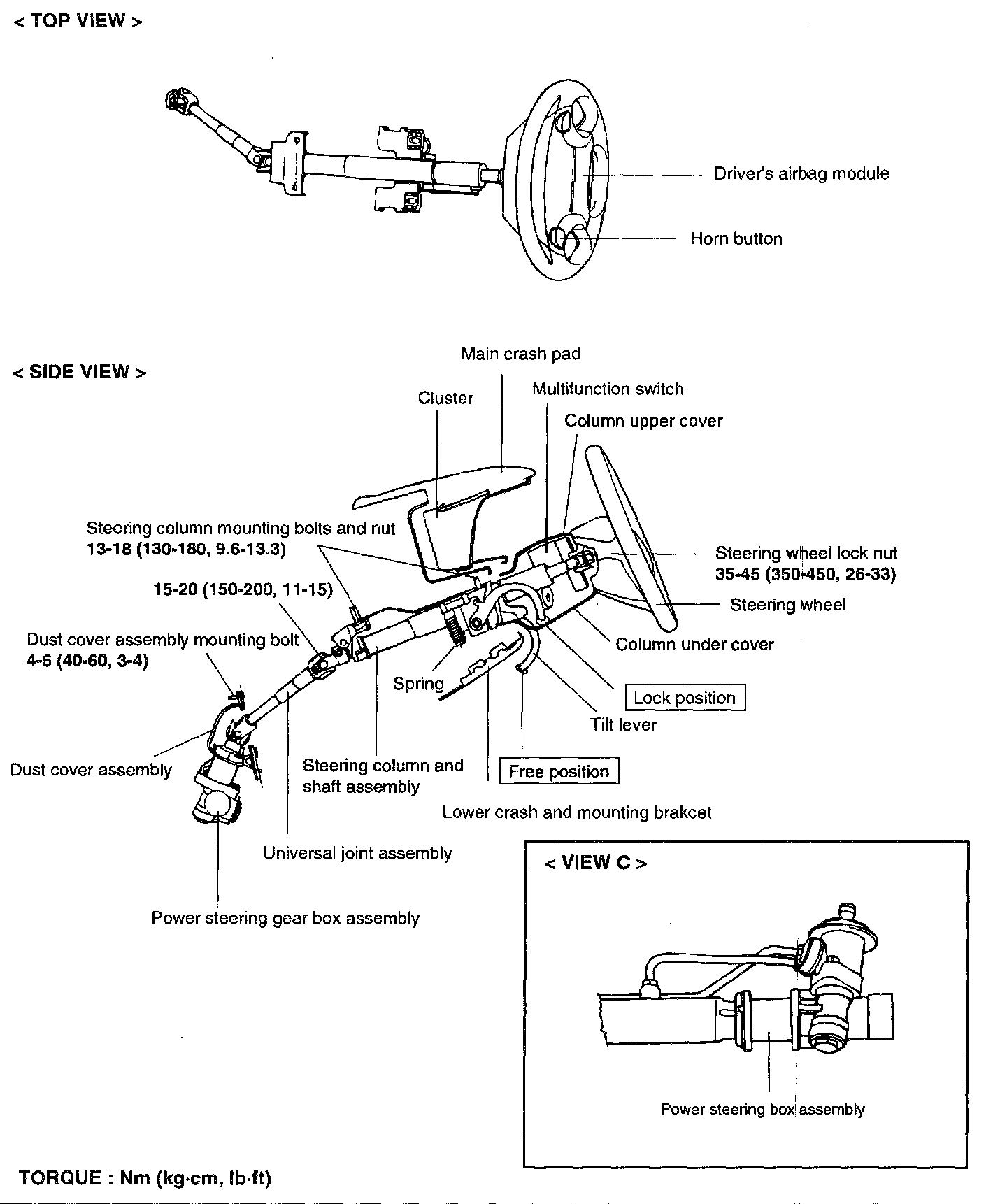

TILT TYPE (WITH SRS AIRBAG)
