Removal

REMOVAL

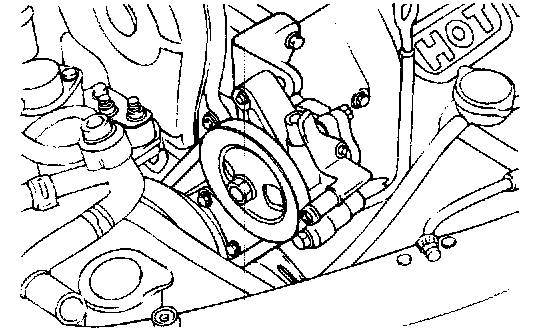

1. Remove the pressure hose from the oil pump.
2. Disconnect the suction hose from the suction connector and drain the fluid into a container.





3. Loosen the oil pump mounting bolts to remove the V-belt.
4. Loosen the tension adjusting bolt.





5. Remove the power steering drive belt from the power steering oil pump pulley.
6. Remove the power steering oil pump mounting bolts and the tension adjusting bolt.





7. Remove the power steering oil pump assembly.

NOTE: Be careful not to drip off fluid from the power steering oil pump.





8. Remove the power steering oil pump mounting bracket.





9. Remove the suction pipe and the O-ring from the oil pump.





10. Remove the rear cover with the gasket and pins.
11. Remove the cam ring.
12. Remove the rotor and vanes.
13. Remove the front side plate.





14. Remove the inner and outer O-ring.
15. Remove the spring.

NOTE: When assembling, use a new gasket and O-ring.





16. Remove the pulley nut with the spring washer.
17. Pull off the pulley and the woodruff key.





18. Remove the snap ring using snap ring pliers.
19. Drive out the pulley shaft with the bearing. If necessary, use plastic hammer.





20. Remove the oil seal from the oil pump body.

NOTE: When assembling, use a new oil seal.

21. Remove the guide bracket and nut.

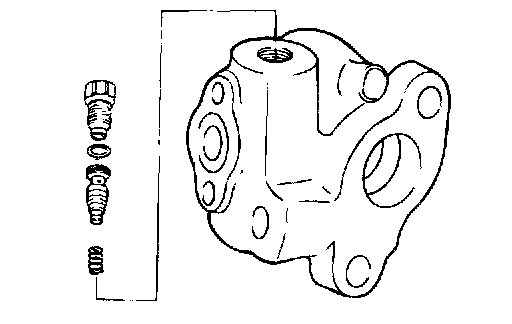

22. Remove the connector from the oil pump body, and take out the flow control valve and the flow control spring.
23. Remove the O-ring from the connector.

CAUTION: Do not disassemble the flow control valve.





24. Remove the oil pump switch.
25. Take out the spring and the spool.
26. Remove the O-ring from the oil pump switch.
