Clutch Switch: Testing and Inspection

CHECK IGNITION LOCK SWITCH







Remove the ignition lock switch and check continuity between the terminals If the continuity is not as specified, replace the switch.

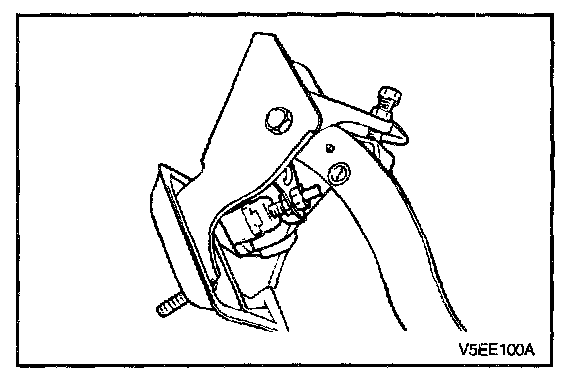

CHECK CLUTCH PEDAL




Check that pedal height, pedal freeplay and clutch pedal clevis pin play are correct.
