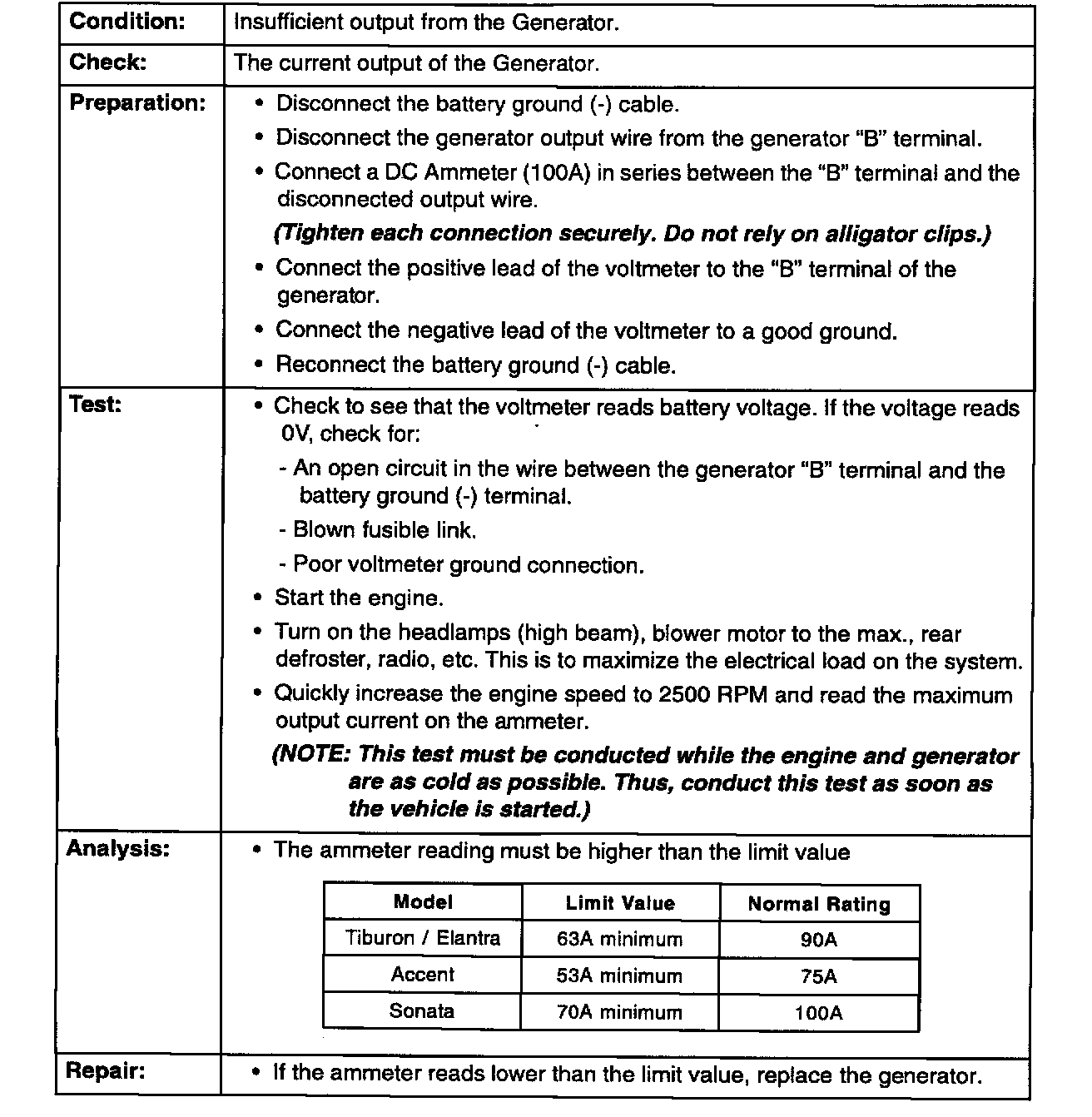

A. Test Procedure Using A DVOM & Ammeter

NOTE:
A partially discharged battery works best for this test. A partially discharged battery allows most of the electrical load to be put on the Generator (thus taking the battery out of the equation).
