Charging System - Diagnosis
>>
II. Charging System Tests
>>
1. Circuit Resistance Test
>>

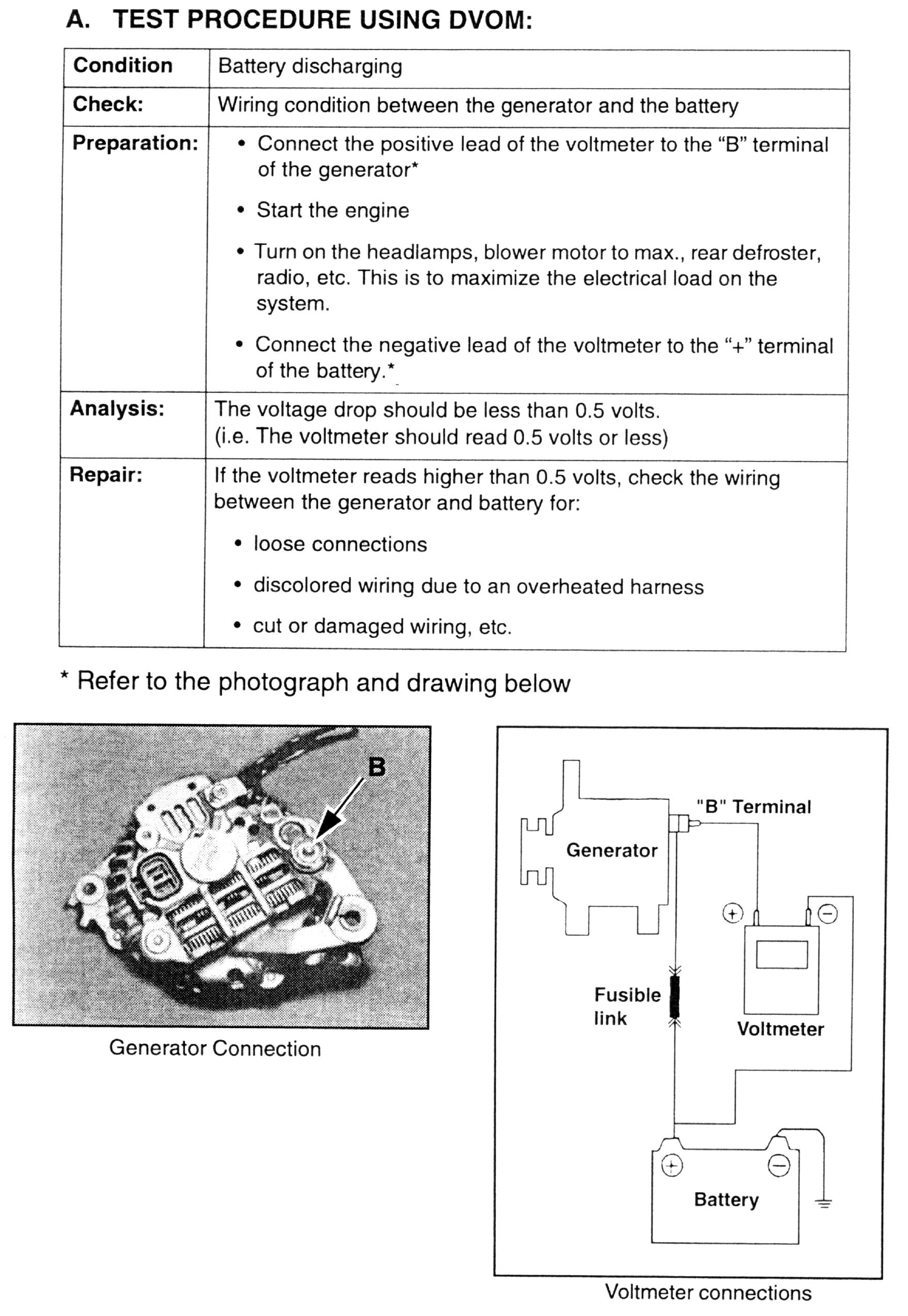

A. Test Procedure Using DVOM
A. Test Procedure Using DVOM
