Tightening Torque Specifications


TIGHTENING TORQUE SPECIFICATIONS

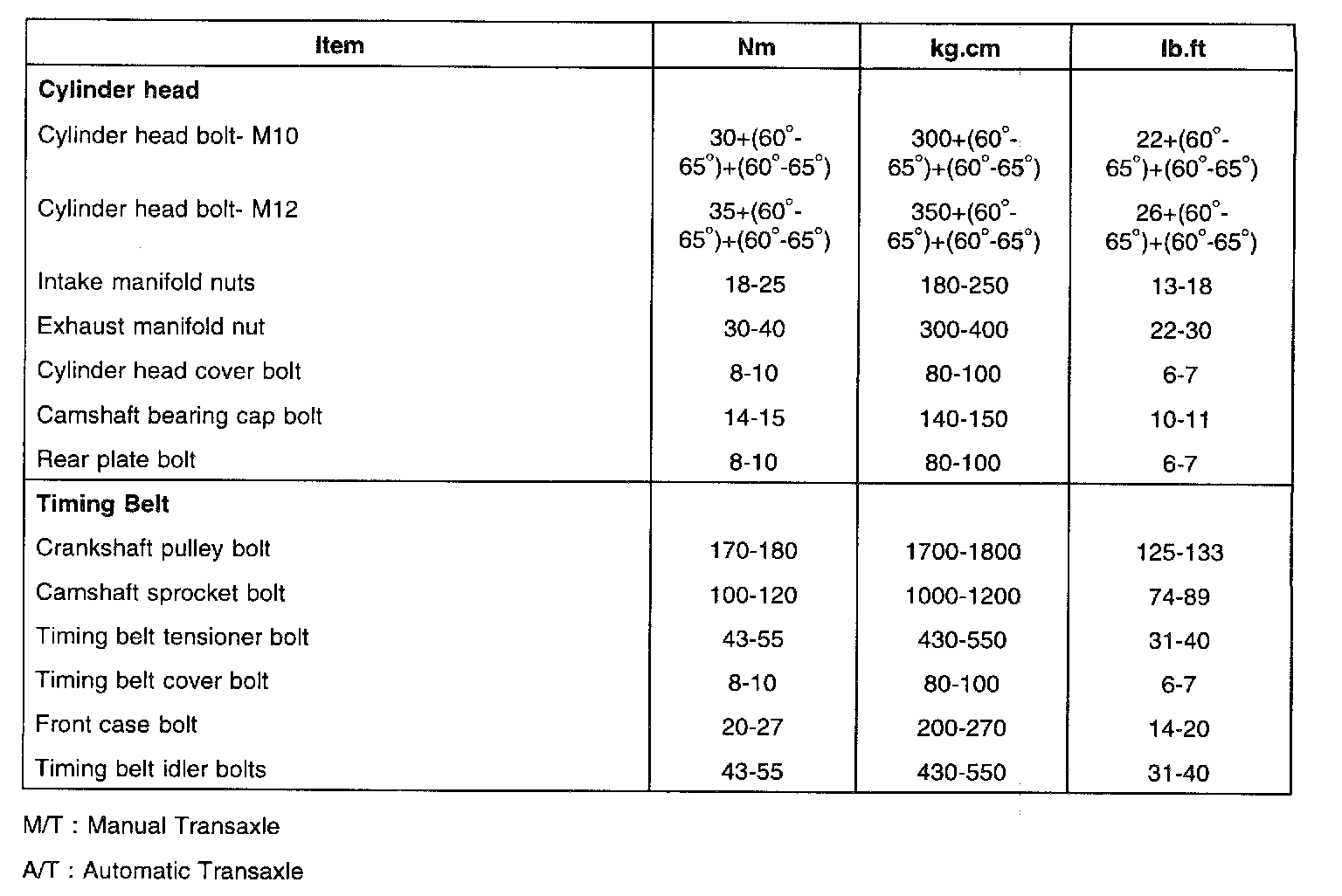

Part 1 Of 3:

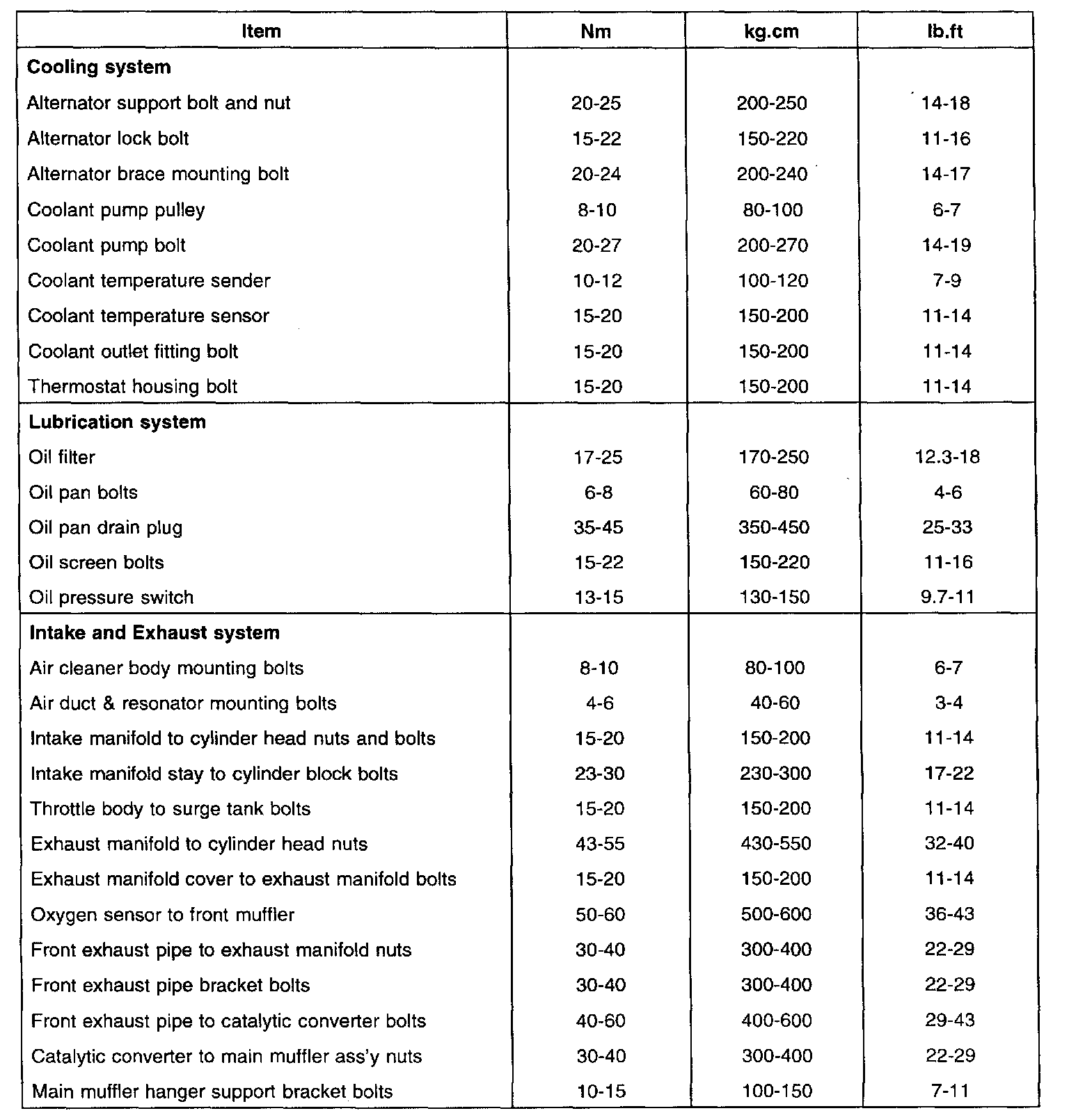

Part 2 Of 3:






Part 3 Of 3:

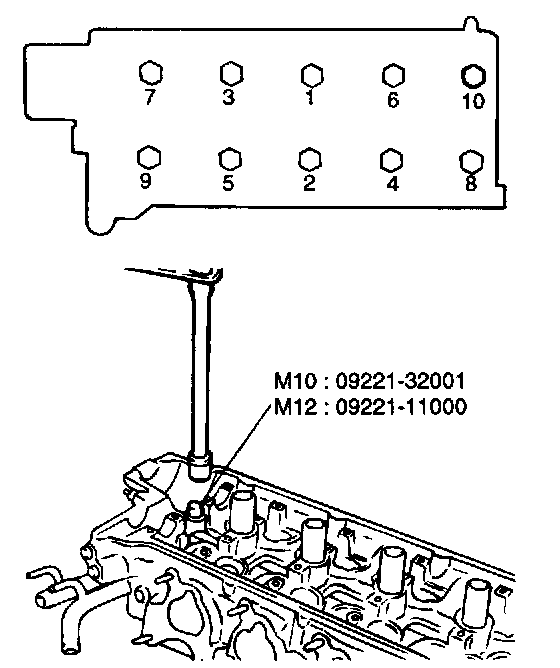

Cylinder Head Bolt Tightening Sequence

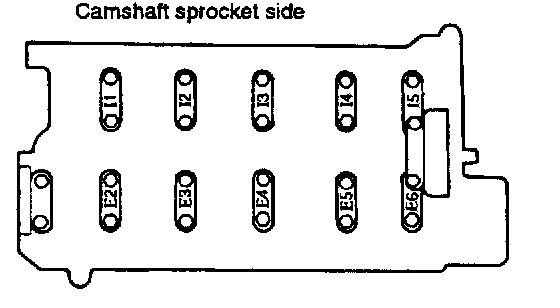

Camshaft Bearing Cap Bolt Tightening sequence
