Front Wiper and Washer Switch

Check the switch for continuity between the terminals.

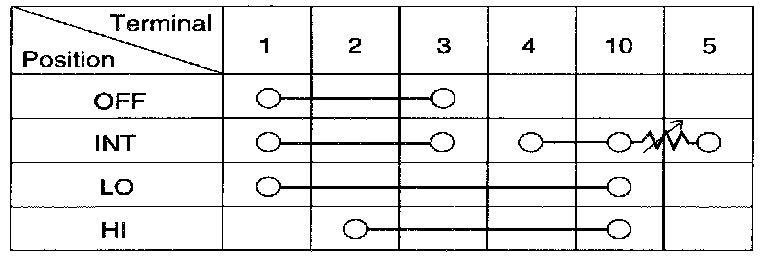

Wiper switch
If continuity is not as specified, replace the switch.
