Windshield Washer Switch
>>
Testing and Inspection
>>
Component Tests
>>
Rear
Rear
1.

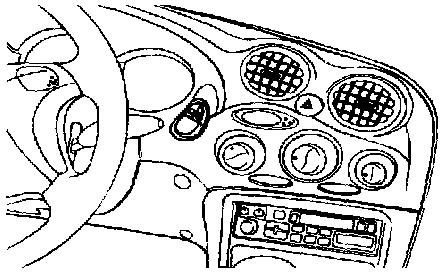

Remove the facia Panel.
2.

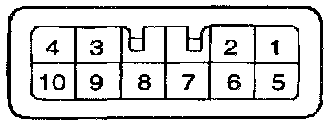

Disconnect the switch connector.
3.
Remove the rear wiper and washer switch from the facia panel.
4.

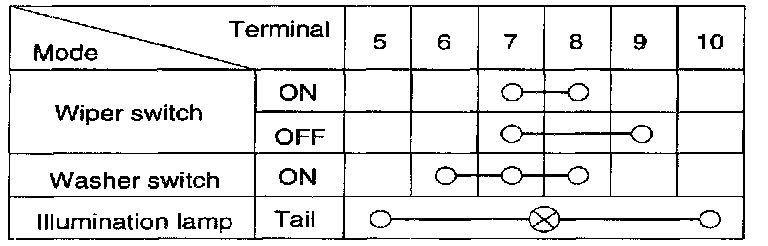

Check for continuity between terminals.
