Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Brake Light Switch >> Testing and Inspection

Brake Light Switch: Testing and Inspection

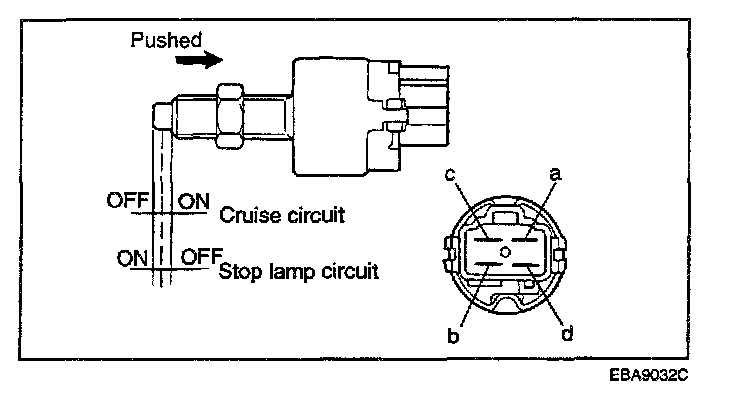

Stop Lamp Switch:

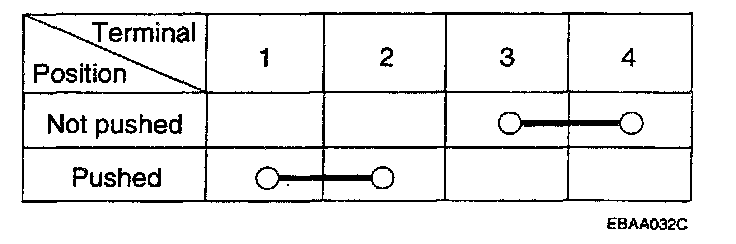

After operating the stop lamp switch, check for continuity between the terminals.
