Cruise Control Switch
>>
Testing and Inspection
>>
Cruise Control Main Switch
Cruise Control Main Switch
1.

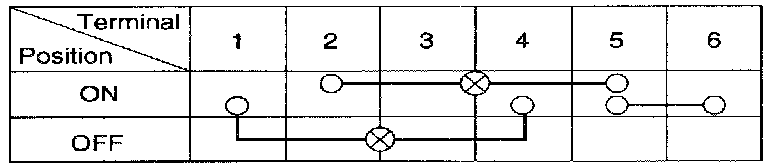

Operate the switch, and check for the continuity between the terminals.
2.
If continuity is not as specified, replace the switch.
