Wheel Speed Sensor: Locations

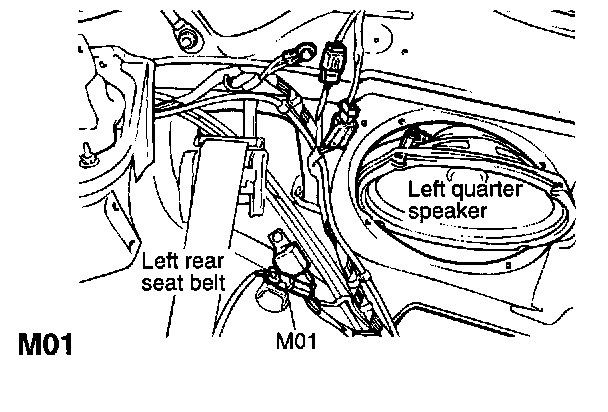

M01 Left Rear Wheel Sensor:



M67 Right Rear Wheel Sensor:

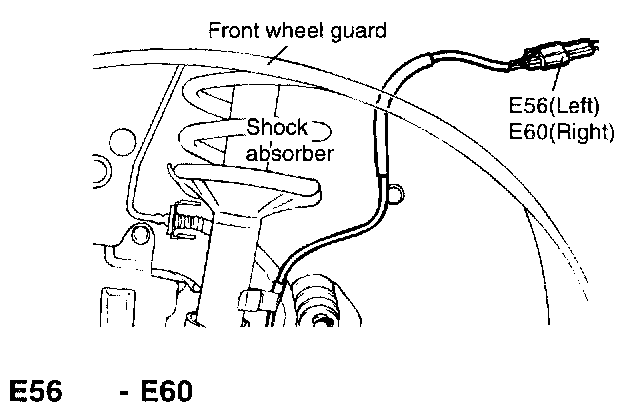

E56, E60 Front Wheel Speed Sensor:
