1999 Sonata Special Service Tools

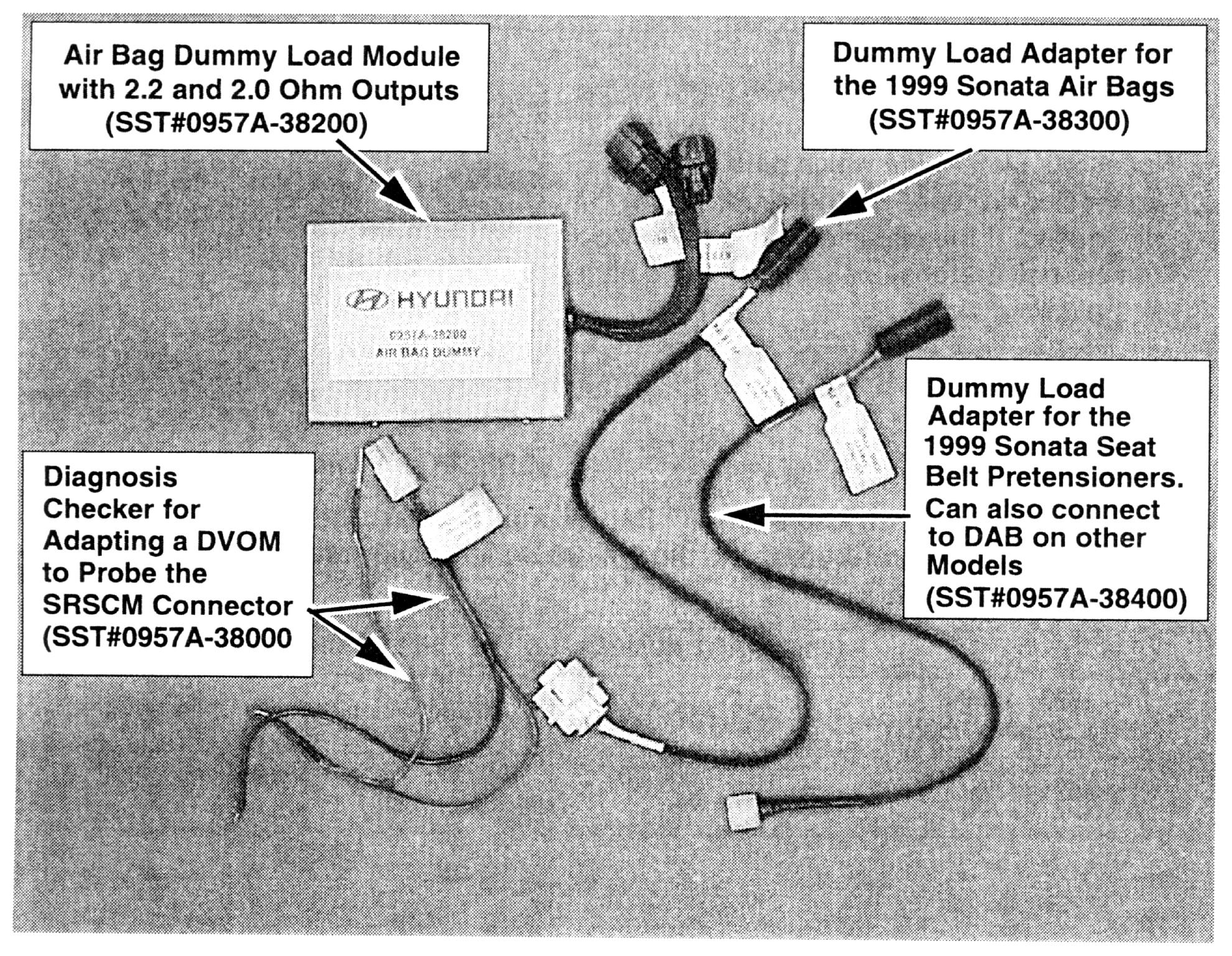

THE 1999 SONATA SPECIAL SERVICE TOOLS:

A NOTE ON USING THE DIAGNOSIS CHECKER (SST # 0957A-38000):

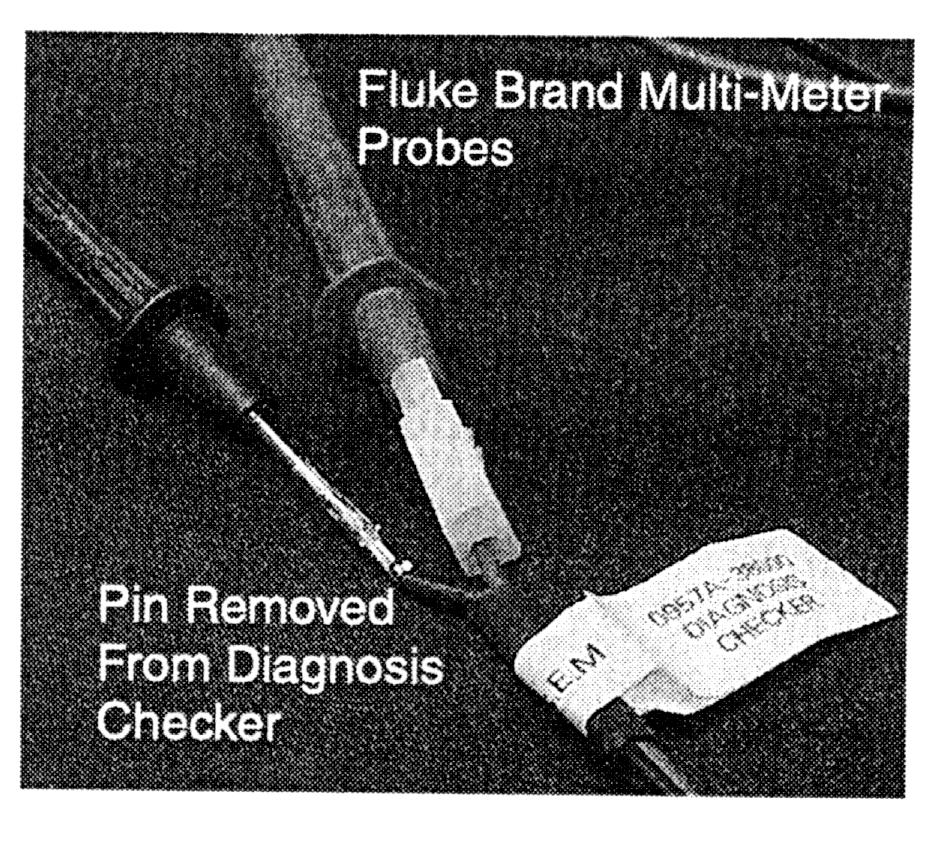

The checker is designed to work with the sharp probes found on most common multimeters. Just push the probe into the female pins in the white plastic connector on the SST. Some multimeters have large handles on the probes, like the Fluke brand. In this case, use a pin removal tool to pop the black wire terminal from the white connector, leaving lust the red wire in place. This will allow the multimeter to connect to the SST.
