Air Bag Assemblies - Repair Kit Part Numbers
Group: BODY ELECTRICALNumber: 99-90-004
Date: APRIL, 1999
Model: ALL
Subject
AIR BAG REPAIR KIT PART NUMBERS
DESCRIPTION:
When repairing a Hyundai vehicle that has been involved in an accident where the front air bags have deployed, the following components must be replaced:
1. Deployed air bags
2. SRS control module assembly (computer)
3. Air bag control module assembly machine screws
4. Clock spring contact assembly
5. Air bag wiring harness
6. Front seat belt assemblies in vehicles with deployed seat belt pretensioners.
When repairing a vehicle where just the seat belt pretensioners have deployed, the following components must be replaced:
1. The deployed seat belt pretensioners
2. Air bag wiring harness
3. 1999 Elantra: Air bag SRS CM assembly
1999 Sonata: The SRS CM should be checked with the scan tool.
^ If the scan tool (under the SRS Data Menu) shows from 1 to 5 "BELT PRE FIRINGS", and no other codes, the SRS CM can be reused. If it shows 6 or more "BELT PRE FIRINGS", the SRS CM must be replaced.
When repairing a vehicle where one or both side air bag(s) have deployed, the following components must be replaced:
1. The front seat back assembly(s)
2. The Air bag wiring harness
3. Air bag SRS CM assembly
4. Satellite sensor for the side which deployed
NOTE:
After any collision, all seat belts worn by vehicle occupants must always be replaced. This includes both the seat belt and the buckle.

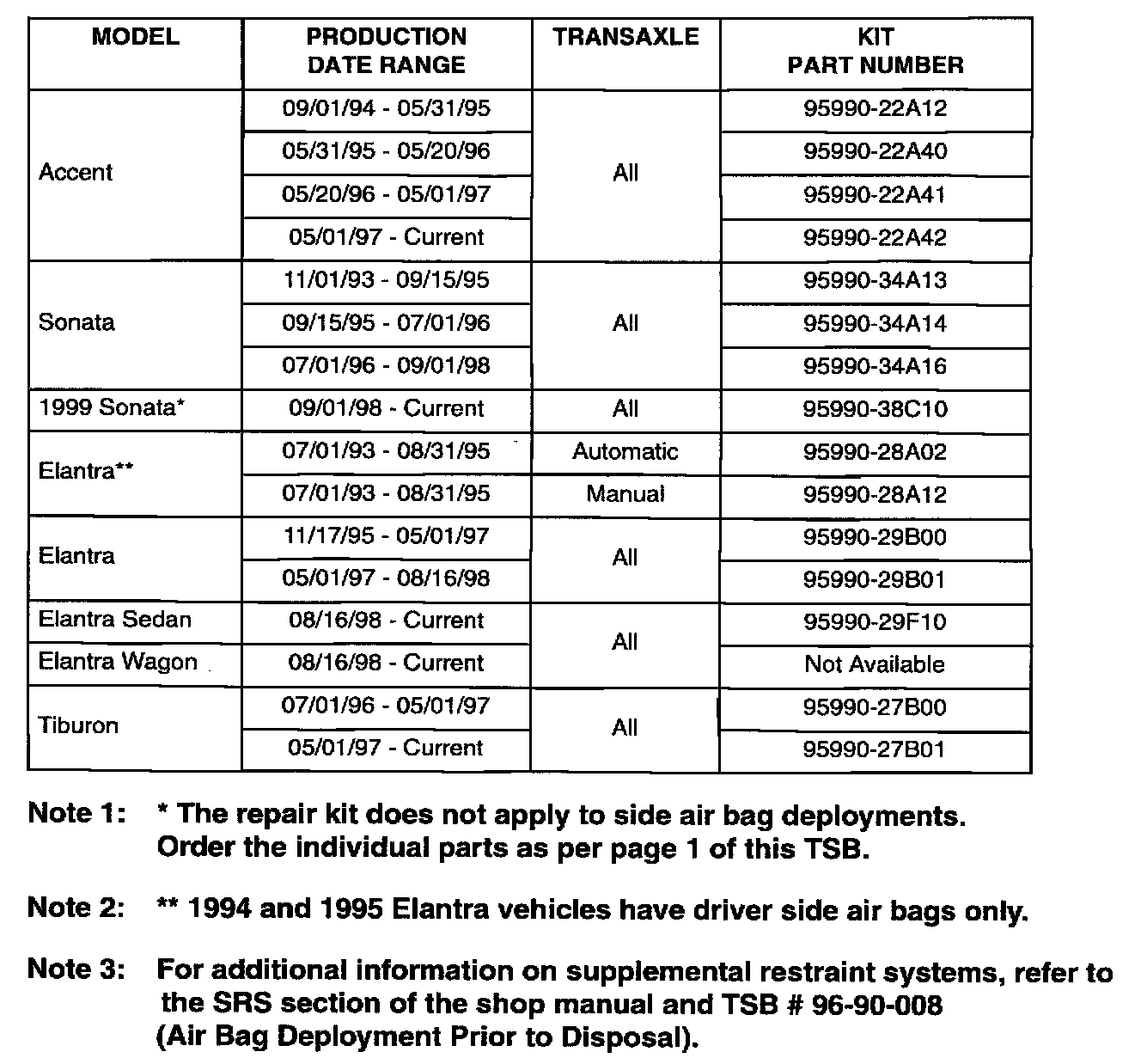

Hyundai has developed air bag repair kits to assist dealers when replacing components after a front air bag deployment. The air bag repair kit includes items 2-5 listed in the front air bag section of this TSB. Failure to replace all of the parts listed may affect the supplemental restraint system (SRS) in the event of a subsequent accident. In addition to ordering the air bags and seat belts (which are color specific), an air bag repair kit should also be ordered. The part numbers for these kits are listed in the illustration.
WARRANTY INFORMATION:
^ Collision repair is not covered under warranty.
^ Warranty coverage does not apply to complete repair kit.
