Power Window Relay: Testing and Inspection

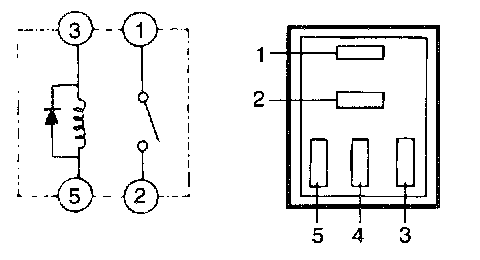

1. Check the continuity between the terminals "3" and "5" with an ohmmeter.
2. Apply DC 12V to the terminal "3" and ground the terminal "5".
3. Check for continuity between the terminals "1" and "2".
1. Check the continuity between the terminals "3" and "5" with an ohmmeter.
2. Apply DC 12V to the terminal "3" and ground the terminal "5".
3. Check for continuity between the terminals "1" and "2".
