Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Steering and Suspension >> Relays and Modules - Steering >> Steering Control Module >> Locations

Steering Control Module: Locations

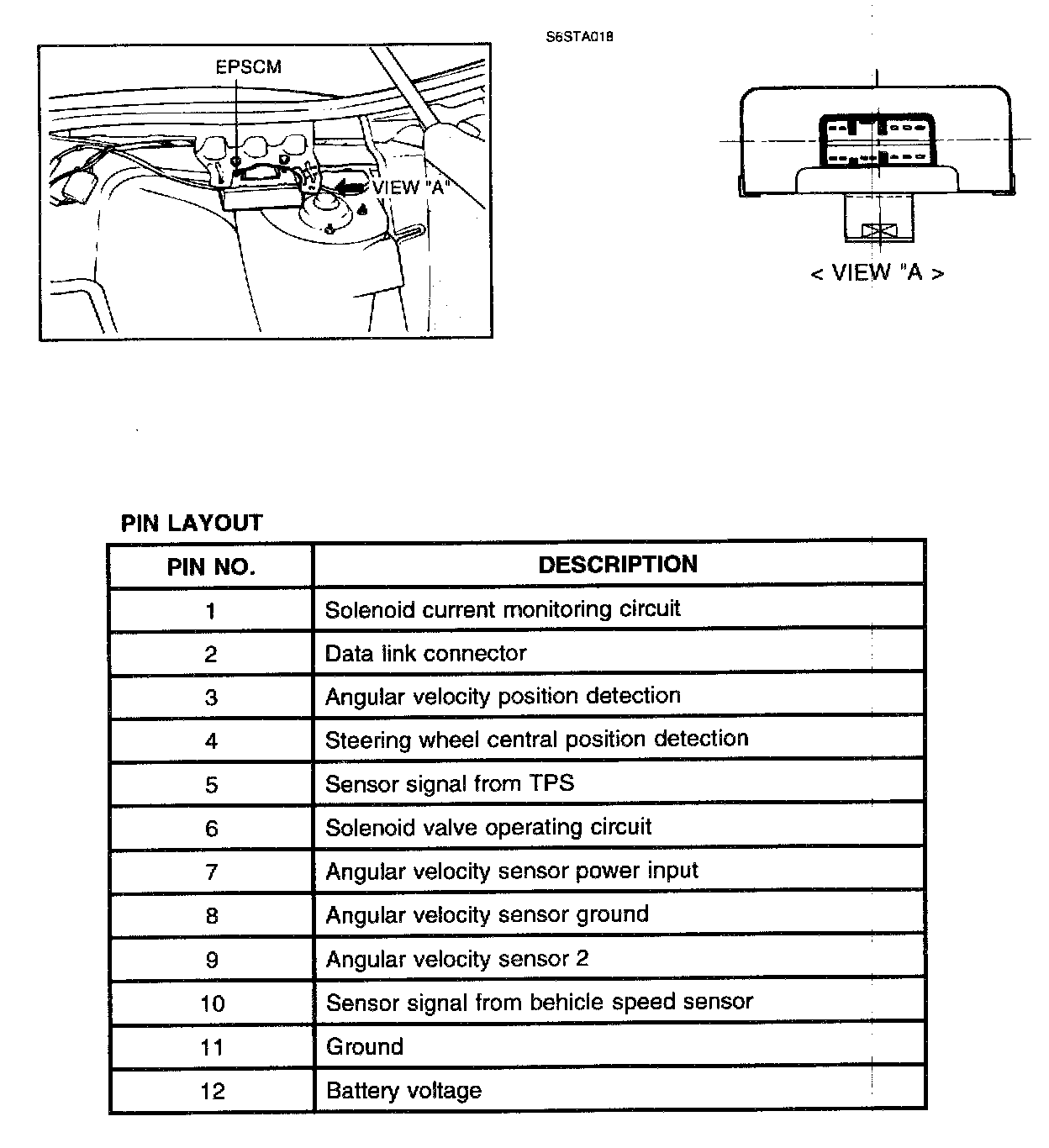

ELECTRONIC POWER STEERING CONTROL MODULE





The Electronic Power Steering Control Module (EPSCM) is installed in Left-Hand (LH) side trunk.
